Condensing Unit Connections
Connect the suction line, the vapor line and the
liquid line to the matching fittings on the CP unit.
See Coupling Connections on the prior page for
detailed instructions.
Prodigy Eclipseรค 1200, 1400, 1800, 2000
August 2008
Page 23

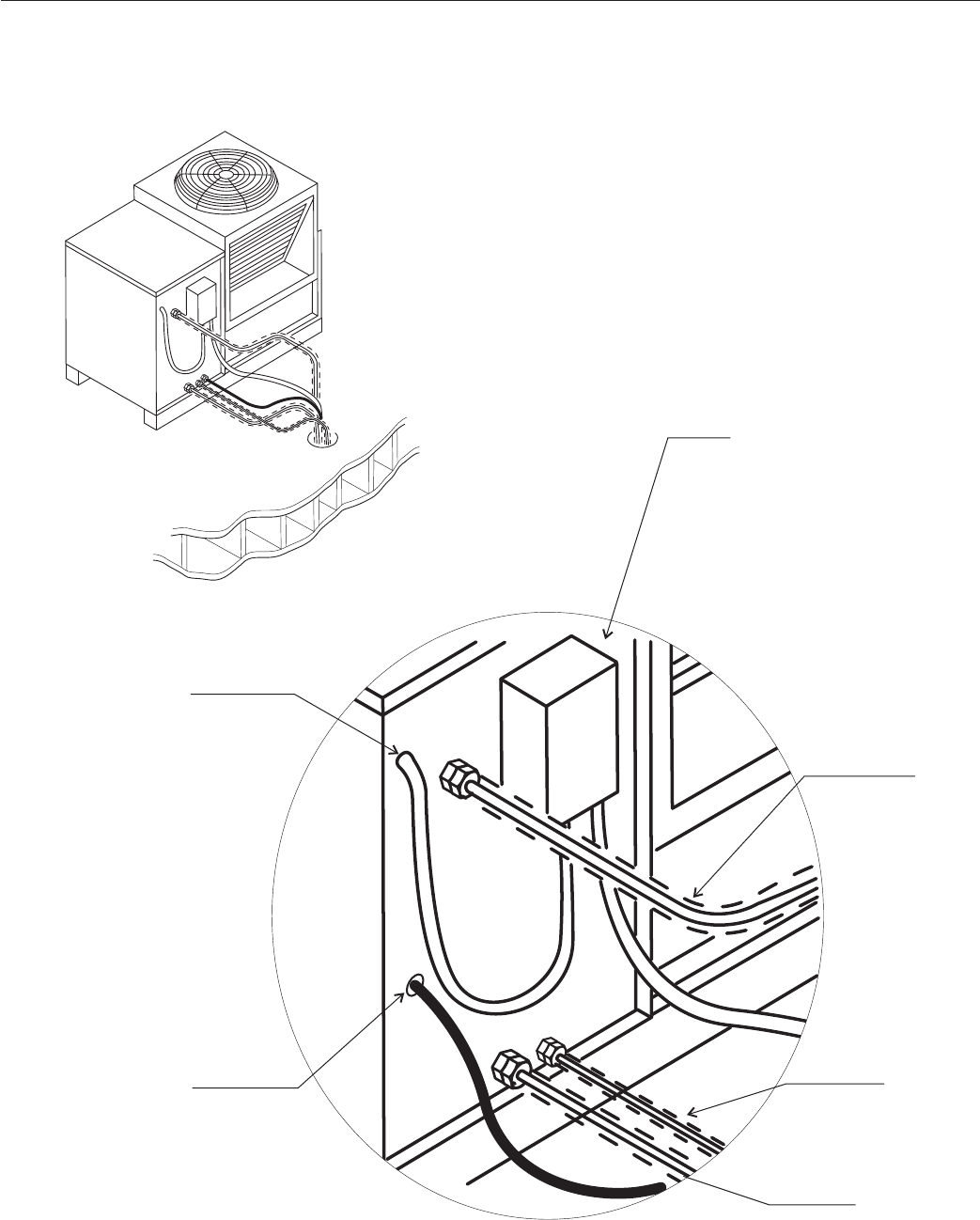

Assembled Condensing Unit
Control Wire
Power
Supply
Inlet
Field
Supplied
Service
Disconnect
Liquid Line
Suction Line
Vapor Line
