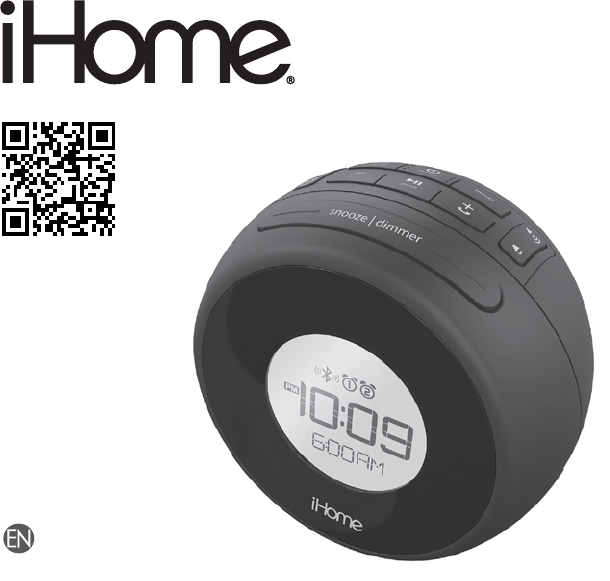

iBT18 Bluetooth Alarm Clock Speaker with Speakerphone and USB charging instruction manual
Introduction iBT18 Thank you for purchasing the iHome iBT18. This product is designed to provide high quality wireless sound for your iPad, iPhone, iPod, computer, or other Bluetooth audio device. This instruction booklet explains the basic operation and care of the unit. Please read carefully and keep for future reference.
Maintenance iBT18 • Place the unit on a level surface away from sources of direct sunlight or excessive heat. • Protect your furniture when placing your unit on a natural wood and lacquered finish. A cloth or other protective material should be placed between it and the furniture. • Clean your unit with a soft cloth moistened only with mild soap and water. Stronger cleaning agents, such as thinner or similar materials can damage the surface of the unit.
Table of Contents iBT18 Meet Your iBT18 ........................................................................................................... 1-3 The Display/Setting Up the Unit ..........................................................................................4 Setting the Clock ..............................................................................................................5 Setting and Using the Alarm/Previewing Alarm ...........................................................
iBT18 Included • iBT18 system • 100V-240V universal AC adaptor power adaptor iBT18 1
iBT18 Meet Your iBT18 Top Power/ Alarm Reset Button Mode Button Sleep/ Clock Adjust Button Alarm 1 Button clock adj alm reset Alarm 2 Button Volume Up Button Volume Down Button Minus Settings/ End Call Button Plus Settings/ Answer Call Button Play/Pause Button Snooze/ Dimmer Button Microphone (front of unit) 2
iBT18 Meet Your iBT18 Back Pairing Button USB Charging Port Aux-in Jack DC Jack pair usb charging aux-in DC 5V, 2A Bottom Backup Battery Compartment (pull battery tab before use) Model: iBT18 Clock Backup: DC 3V, CR2450 x 1 AC Adaptor: DC 5V, 2A FCC ID: EMOIBT18 IC: 986B-IBT18 Service Number: iBT18-A-A Made in China Mfd & Serviced by SDI Technologies Inc. www.ihome.com Toll Free: 1-800-288-2792 Patents: www.ihome.
Using the The Display Bluetooth Audio Indicator Bluetooth Pairing Indicator iBT18 Alarm Active Indicators Low Backup Battery Indicator Sleep Mode Indicator Aux-in Mode Indicator Time Display PM/AM Indicators Alarm Time/Mode Display Wake to Alarm Source Indicators: Tone, Bluetooth device Setting Up the Unit • Pull the battery pull tab from the backup battery compartment on the bottom of the unit.
Using the Setting the Clock iBT18 1. Press and hold the Sleep/Clock Adjust Button for 2 seconds until the clock display flashes and a beep sounds. 2. Press the – or + Buttons to adjust the clock to the current time (hold for rapid setting). Make sure you set the correct AM/PM time. The AM and PM indicators appear to the left of the display. 3. Press the Sleep/Clock Adjust Button to confirm the time. The year will flash. 4. Press the – or + Buttons to adjust the display to the current year. 5.
Using the Setting and Using the Alarms iBT18 This unit features dual alarms which can be set to different times and alarm sources. Each is set in the same way. Instructions are given as “Alarm Button”; use Alarm 1 Button or Alarm 2 Button to set respective alarms. Alarm will sound for 1 hour until reset Note: each step must be completed while display is flashing or step will time-out with any changes saved. 1.
Setting and Using the Alarms (Continued) Using the iBT18 8. Press the – or + Buttons to adjust the alarm volume. Note that the alarm volume setting is stored separately from other volume settings. 9. Press the Alarm Button to confirm the alarm settings and exit alarm setting mode. 2 beeps will confirm alarm setting is complete. The alarm icon will remain on the display, indicating the alarm is armed. 10.
Using the Snooze/Dimmer Button iBT18 1. To program Snooze, press and hold the Snooze/Dimmer Button during normal operation (when no alarm is sounding). 2. Press the – or + Buttons to select the desired snooze time (between 01 and 29 minutes). 3. Press and release the Snooze/Dimmer Button to confirm Snooze setting 4. While the alarm is sounding, press and release the Snooze/Dimmer Button to temporarily silence the alarm for the set duration (9 minutes is the default).
Using the Pairing Your Bluetooth Device iBT18 Pairing is the set-up process to introduce your Bluetooth-capable device to the unit. Once your device is paired, the iBT18 can recognize it and you can play your audio through it. 1. Turn on your Bluetooth-enabled device and turn on Bluetooth capability as described in the device’s user manual. 2. Press the Power Button to turn on the unit. The first time the unit is powered on, it will enter auto-pairing mode and attempt to connect to a Bluetooth device.
Using the Playing Audio Via Bluetooth 1. Press the iBT18 Button to turn the unit ON. 2. Press and release the Mode Button as needed until “BT” and the Bluetooth icon appear on the display. Play Pause Button on the unit to play audio from your linked Bluetooth device. 3. Press the 4. Press the – or + Buttons to go to the start of or previous or next track (hold to search within tracks). 5. Press the or Buttons to adjust the volume on the unit. 6.
Using the Listening to Audio via Aux-in iBT18 1. Connect one end of the included standard stereo 3.5mm audio cable into the aux-in jack on the 2. 3. 4. 5. back of the unit and the other end into the headphone or output jack of your audio device. Press the Button on the unit to turn it on. Press and release the Mode Button as needed until the AUX indicator icon appears on the display. Press the or Buttons to adjust the volume on the unit. When done listening, press the Button to turn the unit off.
Replacing and Installing Clock Backup Battery Using the iBT18 Note: The CR2450 lithium battery is included in the unit. Please pull out the battery pull tab before you use the unit. This model is equipped with a battery backup circuit that will maintain the time and alarm time settings in the event of a temporary power interruption (the display is NOT maintained). The battery backup circuit will also operate the buzzer alarm to wake you up at the selected wake up time even if the power is out.
Troubleshooting Unit doesn’t respond (no power) • Check that all connections are correct and properly plugged in. • Make sure your device is properly paired with the iBT18. • Make sure the Power is ON. Unit doesn’t respond (locked up or frozen) • The unit may need to be reset. To do so, unplug the unit from power source and remove the backup battery. Let unit stand for 2 minutes. Re-install backup battery and connect unit to power source. You will need to reset the clock and any other settings.
Consumer Product Safety Guide IMPORTANT SAFETY INSTRUCTIONS When used in the directed manner, this unit has been designed and manufactured to ensure your personal safety. However, improper use can result in potential electrical shock or fire hazards. Please read all safety and operating instructions carefully before installation and use, and keep these instructions handy for future reference. Take special note of all warnings listed in these instructions and on the unit. 1.
7. Objects and Liquid Entry – Care should be taken so that objects do not fall and liquids are not spilled into any openings or vents located on the product. 8. Attachments – Do not use attachments not recommended by the product manufacturer. 9. Lightning and Power Surge Protection – Unplug the unit from the wall socket and disconnect the antenna or cable system during a lightning storm or when it is left unattended and unused for long periods of time.
Limited 1 Year Warranty iHome Products, a division of SDI Technologies Inc. (hereafter referred to as SDI), warrants this product to be free from defects in workmanship and materials, under normal use and conditions, for a period of one (1) year from the date of original purchase. Should this product fail to function in a satisfactory manner, it is best to first return it to the store where it was originally purchased.
