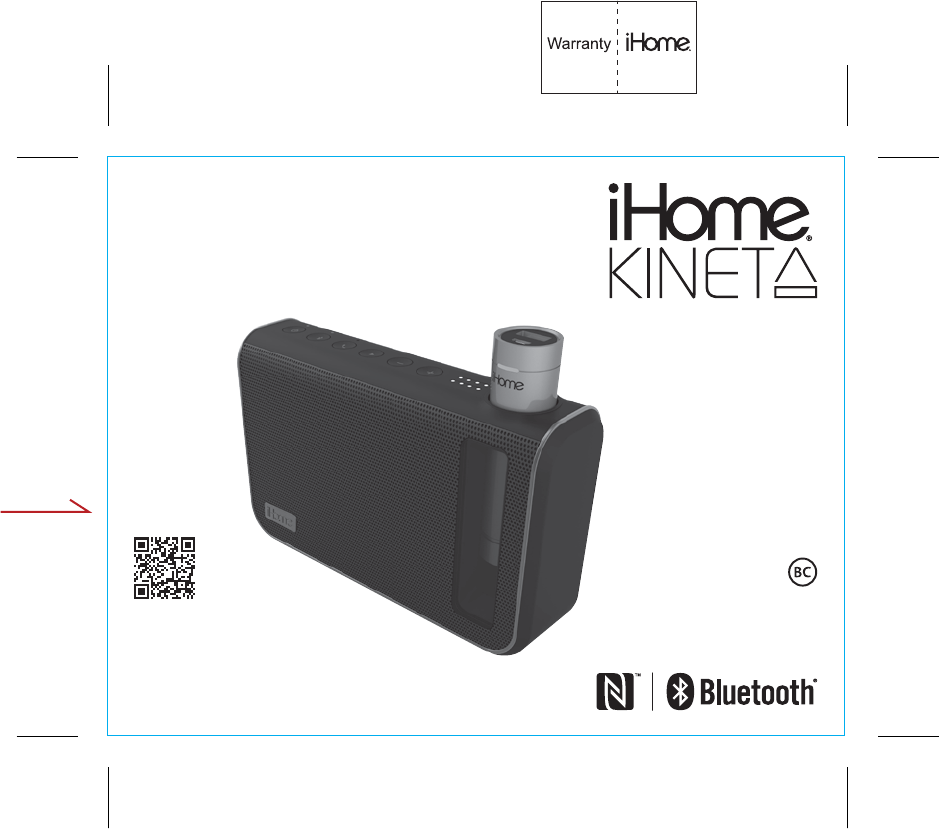

iKN100 IB (English) Size: 130 x 102 mm Color: 1C + 1C (Black text on white paper) 20 pages,100gsm2 WF PAPER 請留意排版 Date: July 27, 2015 P1 Model: iKN100 K3 with speakerphone and removable power portable stereo speaker system CHARGE BEFORE USE instruction manual Questions? Contact Customer Service at 1-800-288-2792
P2 K3 Introduction Thank you for purchasing the iHome Kineta K3. This product is designed to provide high quality wireless sound for your iPad, iPhone, iPod, computer, tablet or other Bluetooth audio device and mobile charging on the go with the included removable K-Cell rechargeable battery. This unit features NFC (Near Field Communication) technology which allows you to wirelessly connect your NFC–enabled device to instantly ‘pair and play’.
P3 K3 Maintenance • Place the unit on a level surface away from sources of direct sunlight or excessive heat. • Protect your furniture when placing your unit on a natural wood and lacquered finish. A cloth or other protective material should be placed between it and the furniture. • Clean your unit with a soft cloth moistened only with mild soap and water. Stronger cleaning agents, such as thinner or similar materials can damage the surface of the unit.
P4 K3 Table of Contents Included / Meet Your K3 ................................................................................................. 4-5 Getting Started: Charging the Unit and K-Cell via AC Adaptor .................................................6 Battery Level Meters ..........................................................................................................7 Charging the K-Cell via USB...........................................................................................
P5 K3 Included • K3 system • K-Cell • AC adaptor • USB charging cable K3 system K-Cell USB cable 4 AC adaptor
P6 Meet Your K3 Bluetooth Pairing Power Button Button K3 Top Talk/End Button Play/Pause Button External Battery level meter K-Cell Mode Status indicators: Power Bluetooth Speakerphone Microphone Volume Down Button Volume Up Button Left Side Back Panel Aux-in Jack Reset Port NFC Antenna Area DC 10V 2.
P7 Getting Started: Charging the Unit and K-Cell via AC Adaptor K3 Charge unit fully with K-Cell inserted before use. For first time charge, charge for at least 3 hours. Use iHome K-Cell battery ONLY. Do NOT attempt to use with/insert other USB battery cells. T ESER RESET T SET TEST DC 10V 2.5A Pull back the jack cover on the left of the unit to access jacks. Connect the included AC adaptor to the DC jack and connect the other end to a working wall outlet.
P8 Using the Battery Level Meters K3 The unit has one battery level meter on top of the unit for the internal battery and one for the removable K-Cell external battery. The table below shows the charge status indicated by each meter when unit is connected to AC power.
P9 Using the Charging the K-Cell via USB K3 Charge K-Cell fully before use. For first time charge, charge for at least 3 hours. Connect the included micro USB cable to the micro USB Charging Port on the top of the K-Cell and connect the other standard USB plug to a computer, USB AC adaptor (not included) or other USB power source. The LED on the K-Cell flashes while it is charging and becomes solid once fully charged. A charged K-Cell can operate the unit when the internal battery is depleted.
P10 Using the Charging Devices Using the K-Cell K3 Charge K-Cell fully before use. For first time charge, charge for at least 3 hours. Connect the USB cable plug included with your device to the standard Charging Port on the top of the K-Cell and connect the other end to the device you wish to charge. To charge an Android or Windows phone you may use the USB to micro USB cable supplied with this model.
P11 Using the Using Bluetooth: Pairing Your Device Using NFC K3 This unit features wireless NFC pairing, which allows NFC-enabled devices to pair and play instantly. (For pairing non-NFC devices, please see the following section “Pairing Your Device Manually”.) The first time the unit is powered on, it will enter auto-pairing mode. Follow steps below to pair. 1. Turn on your Bluetooth–enabled/NFC–enabled device and turn on NFC capability as described in the device’s user manual. 2.
P12 Using the Pairing Your Device Manually K3 Pairing is the set-up process to introduce your Bluetooth-capable device to the K3. Once your device is paired, the K3 can recognize it and you can play your audio through it. 1. Make sure your Bluetooth device is fully charged. Turn on your Bluetooth device and make it “discoverable” by turning on Bluetooth mode (check in Options or Settings). 2. Press the Power Button to turn on the K3. The Power status indicator will glow solid white.
P13 Using the Pairing with a Different Device K3 When you power ON the speaker, it will automatically link with the most recently connected Bluetooth device as long as that device is still within range (approx. 30 feet). To pair with a different device follow steps 1 4 under ”Pairing Your Device” on previous page. Playing Audio Via Bluetooth 1. Press the Power Button to turn on the unit. The Bluetooth status indicator will glow solid blue when a linked device is in range and detected.
P14 Using the Speakerphone Operation K3 NOTE: The unit must be powered on and linked to a Bluetooth phone to receive a call. When a call is received, playing music is muted to hear the ring tone. The Speakerphone status indicator above the Talk/End Button will flash green. 1. Press the Talk/End Button to answer a call. The Speakerphone status indicator will glow solid green. Press and hold the Talk/End Button to ignore the call. 2.
P15 Using the Playing Audio via Aux In 1. Connect one end of a 3.5mm stereo audio cable (not included) to the Aux-in jack on the left side of the unit and connect the other end to the headphone or line-out jack on your audio device. 2. Press the K3 DC 10V 2.5A Power Button on the unit to turn it on. 3. Power on the audio device and use the controls on the device to play or pause audio, and navigate tracks. 4. Press the + or – Button to adjust the system volume.
P16 Consumer Product Safety Guide IMPORTANT SAFETY INSTRUCTIONS When used in the directed manner, this unit has been designed and manufactured to ensure your personal safety. However, improper use can result in potential electrical shock or fire hazards. Please read all safety and operating instructions carefully before installation and use, and keep these instructions handy for future reference. Take special note of all warnings listed in these instructions and on the unit. 1.
P17 8. Attachments – Do not use attachments not recommended by the product manufacturer. 9. Lightning and Power Surge Protection – Unplug the unit from the wall socket and disconnect the antenna or cable system during a lightning storm or when it is left unattended and unused for long periods of time. This will prevent damage to the product due to lightning and power-line surges. 10.
P18 K3 FCC Information FCC Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. FCC ID: EMOIKN100 IC : 986B-IKN100 This device complies with Part 15 of the FCC Rules, operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
P19 Troubleshooting Unit doesn’t respond (no power) • • • • Check that unit is fully charged OR connected to AC power. Make sure your device is properly paired with the K3. Make sure the Power is ON. If the unit seems “frozen” or locked up, insert the end of a paperclip or similar into the Reset port under the jack cover on the left of the unit to reset unit. Resetting Bluetooth If Bluetooth function is not operating properly, you may wish to reset Bluetooth.
P20 Limited 1 Year Warranty iHome Products, a division of SDI Technologies Inc. (hereafter referred to as SDI), warrants this product to be free from defects in workmanship and materials, under normal use and conditions, for a period of one (1) year from the date of original purchase. Should this product fail to function in a satisfactory manner, it is best to first return it to the store where it was originally purchased.
