XC-101 User Guide CDMA PHONE
Contents Introduction Highlights Important Information Check Accessories Before You Start FCC RF EXPOSURE INFORMATION Chapter 1. Getting Started Cautions On screen Icons Chapter 2. Basic Functions Turning the Phone On and Off Making a Call Correcting Dialing Mistakes Receiving Calls Dialing a Call from Phone Book Chapter 3.
Chapter 7.

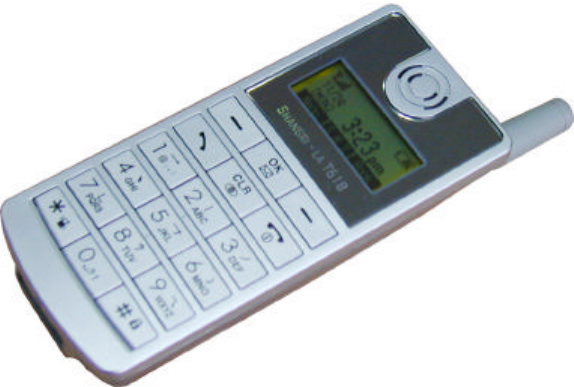

Introduction Highlights Congratulations! Your new mobile phone will change your way of communicating and is a compact, lightweight personal communication system with added features for the person on the go. Our advanced digital mobile communication technology allows you to do the followings l Large, easy-to-read, 4-Line, backlight LCD with status icons. l Paging, messaging, voice mail and caller ID. l 18 key keypads l Long battery standby and talk times.
distance of 0.98 inches (2.5cm) must be maintained between the user’s body and the back of the phone, including the antenna, whether extended or retracted. Third-party belt-clips, holsters and similar accessories containing metallic components should not be used. Body-worn accessories that cannot maintain 0.98 inches (2.
remove the battery pack. If the phone is mal-functional, return it to the dealer for service. l Avoid shock or impact on the phone. On screen Icons The phone screen displays several onscreen icons and onscreen icons appears when the phone is power on. Icons Descriptions Displays the strength of the signal received by the phone and current signal strength is indicated as the number of bars displayed on the screen. No service The phone is not receiving a system signal. In use A call is in progress.
Chapter 2. Basic Functions Turning the Phone On and Off Turning the Phone On 1. Install a charged battery pack or connect the phone to an external power source such as the cigarette lighter adapter or car kit. 2. Press [END/PWR] for a few seconds . l Fully extend the antenna for the best performance. Like any other radio device, avoid any unnecessary contact with the antenna while your phone is on. Turning the Phone Off 1.
Dialing a call from Phone Book You can place a call from any memory location either by speed dialing or by pressing [SEND] while looking up the memory location. One-Touch Dialing : One-touch dialing is a convenient feature which enables you to dial frequently used numbers in your personal phone book by pressing a key (for memory location 1 through 9). l For locations 1 to 9, you can use one-touch dialing (if enabled, see “One-Touch” on page 37.
Ring Volume ([Menu] +[1]+[1]+[1]) Adjust the volume of the ringer using the [5] [6]key Key Tone ( [Menu] +[1]+[1]+[2] ) Adjust the key beep volume (the volume of sound on key pressing). Handset ( [Menu] +[1]+[1]+[3] ) Adjust the earpiece volume during a call, by pressing the side keys Ring Style ([Menu] +[1]+[2]) Select one out of four ring types (Ring, Vibrate, Vib+Ring and Lamp) with [5] [6]key. Ring Tones ([Menu]+[1]+ [3]) Select the ringer sound with [(] [(]key.
Backlight ( [Menu]+ [2]+[1] ) Allows you to select how long or when the display screen and keypad are backlit. The backlight is turned off 10 seconds after the last key is pushed. the backlight is turned off 30 seconds after the last key is pushed. “ On when Cellcase open” means that the backlight is always on while Cellcase is open. “ Always on” means that the backlight is on regardless of the Status of Cellcase. Choosing “ Always on” significantly decreases talk time.
Chapter 4. Phone Book Phone Book ([Menu]+[4]) Search Name ([4]+[1]) 1. Press Soft Key 2 [Book] 2. Press [Phone Book] [Search Name] 3. Enter the name you want to search for and press [OK] key. If the name is found, the name will be displayed and if the name is not found, “ Not Found” message will appear. Search Number ([4]+[2]) 1. Press Soft Key 2 [Book] 2. Press [Phone Book] [Search Number] 3. Enter the name you want to search for and press [OK] key.
Office : Entry of Office Phone Number Mobile : Entry of Mobile Phone Number Pager : Entry of Pager Number Data/Fax : Entry of Data/Fax Number E-Mail : Entry of E-mail Address Chapter 5. SMS Text message, page and voice mailbox become available as soon as the power is on. You can access the above types of messages using the message key ([5]). In addition, you can make a call to the call back number by pressing the [Send] during a message check.
Select ‘ok’ to input the message. Select ‘ok’ to send the message. 2. Inbox - It indic ates the number of the voic e messages in the voic e mailbox. - It indicates the checked but not erased messages in the form of he list. - It indicates the checked and stored message in the form of the list. Move the loc ation of > with the upside or downside key to select the message. Select the ‘ Erase’ .
Chapter 6. Organizer Alarm( [MENU]+[6]+[1] ) Stopwatch [MENU]+[6]+[2] )) Calculator( [MENU]+[6]+[3] ) Chapter 7. Accessories There are a variety of accessories available for the phone. You can select these options according to your personal communication requirements. Consult your local dealer for availability. Travel Charger This charger, model TC-10W, allows you to charge the battery pack. It supports standard U.S. 120Volt 60Hz outlets.
Data Cable Kit Connects your phone to your PC.(Model KW-a) Headset Connects to your phone, allowing hands free operation. Includes earpiece, microphone and mute key.
Safety Information 1 . SAFETY INFORMATION FOR FIXED WIRELESS TERMINALS POTE NTIALLY EXPLOSIVE ATMOSPHERES Turn your phone OFF when in any area with a potentially explosive atmosphere and obey all signs and instructions. Sparks in such areas could cauls e an explosion or fire resulting in bodily injury or even death. . INTERFERENCE TO MEDICAL DIVICES Certain electronic equipment may be shielded against RF signal from you wireless phone.
FCC Compliance Information This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received. Including interference that may cause undesired operation. Information to User This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
SAFETY INFORMATION FOR RF EXPOSURE Body worn operation This device was tested for typical body-worn operations with the back of the phone kept 25 mm. from the body. To maintain compliance with FCC RF exposure requirements, use only belt-clips, holsters or similar accessories that maintain a 25 mm. separation distance between the user’s body and the back of the phone, including the antenna. The use of belt-clips, holsters and similar accessories should not contain metallic components in its assembly.
SAR INFORMATION THIS MODEL PHONE MEETS THE GOVERNMENT’ S REQUIREMENTS FOR EXPOSURE TO RADIO WAVES. Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radiofrequency (RF) energy set by the Federal Communications Commission of the U.S. Government. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population.
U.S.A. U.S.FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY INTERFERENCE STATEMENT I N FORM AT I ON T O T H E U SER NOTE : This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules.
