Optional – Connecting the ATT Digital Life Keypad:
The TAKRF can be used to power the PAD2W Digital life keypad. This can be done using an
existing pair of wires to the previous keypad location.
1. Remove AC power from the existing wired panel
2. Remove leads from battery on existing wired panel
3. With power removed, disconnect the keypad wires from the existing keypad.
4. Replace the existing keypad with PAD2W (see PAD2 instructions), remember which
wires were used for DC+ and – to the keypad.

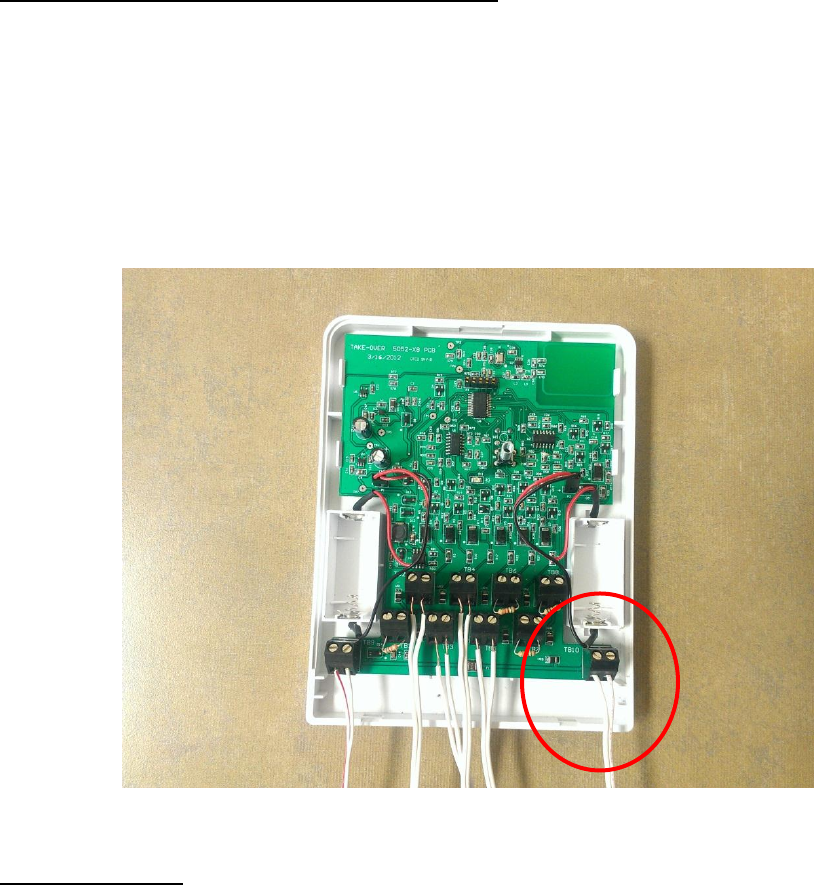

5. Wire the DC+ and DC- keypad wires to TB10.
Connecting power:
The TAKRF is supplied by 9-16VDC. This can be supplied from the included power supply.
Optionally, the power supply from the existing wired panel may be used. For a UL listed
installation, the supplied power supply must be used.
The TAKRF also has included replaceable CR123A batteries for battery backup. The TAKRF
does not recharge these batteries. The TAKRF does monitor the batteries and power supply
