EPT-SC SERIES ELECTRICAL POWER TRANSFER FOR SWING CLEAR

HINGED DOOR APPLICATIONS - INSTALLATION INSTRUCTIONS

1 DESCRIPTION

The EPT-SC allows an electric lock or exit device, such as a Securitron Touch Sense Bar or Touch

Sense Handle, to be installed while concealing and protecting the cabling between the hinged

edge of a door and its door frame. The EPT-SC provides a flexible steel shield conduit which is

approximately 5/16” [7,9mm] I.D. (inside diameter). The EL-EPT-SC is furnished with a wire

harness already installed which includes ElectroLynx® connectors at each end.

The EPT-SC power transfer device has been specifically designed and configured for installation

on doors using Swing Clear type hinges.

Note: The EPT-SC will NOT work on doors utilizing center pivot type hinges.

2 PRODUCT OVERVIEW

Upon unpacking this product, an inventory should be made to ensure

that all of the required components have been included. Along with

these instructions and the installation template, this product should

include the following items:

2.1 HARDWARE

8X 8X 4X 4X

Phillips Flat Head

#6 X 5/8” Type “A”

Phillips Flat Head

6-32 X 3/8” Type “F”

Phillips Pan Head

8-32 X 3/16”

Split Helical Washer

for #8 Screw

3 RECOMMENDED TOOLS

Router or Saber Saw Measuring Instrument (Ruler/Tape Measure)

Hammer Masking Tape

Chisel Fish Tape or Lead Wire

Center Punch Wire Strippers/Cutter

Power Drill Crimp Wire Connectors

1/8”, 5/32” and 3/4” Drill Bits Crimp Tool

3/8” Diameter X 82° Countersink Bit Multimeter

Phillips and Standard Screwdrivers

4 INSTALLATION

For a proper EPT-SC install, all doors and frames must utilize a flush surface mount installation.

If the door/frame is pre-prepped by the manufacturer, then use the pre-fabricated mounting

features and the hardware provided to install the EPT-SC as discussed in Section 4.3 or 4.4. If

the installation is a field retrofit, determine the door and frame construction, then proceed to

mark the door and frame in accordance with Section 4.1.

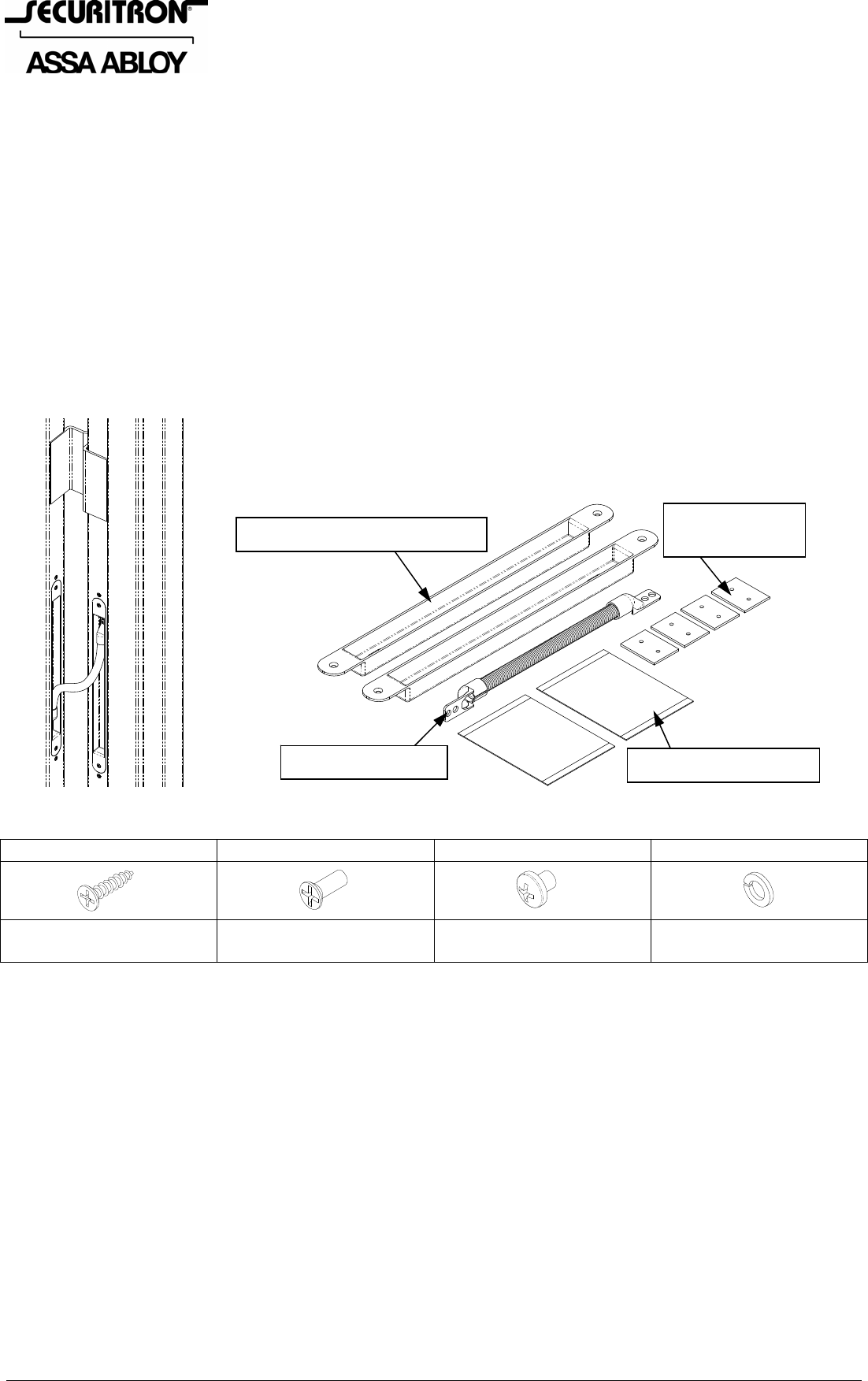

Flexible Shield

EPT-SC Lead Cover

(2)

Hardware Pack (2)

Flush Tab

Bracket

(

)
