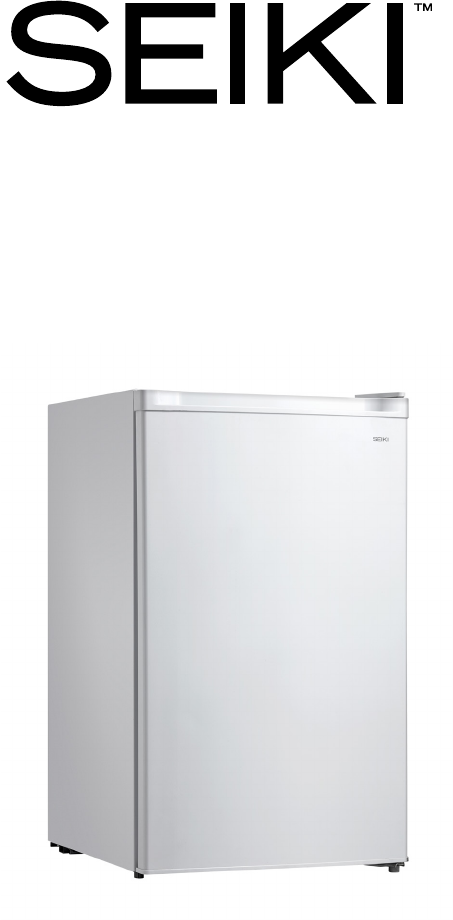

29L BAR REFRIGERTOR SC-129AU7BF INSTRUCTION MANUAL Please read this manual carefully before using, and keep it for future reference.
CONTENTS General Safety 4 Product Overview 8 Installation 9 Operation 10 Reversing the Door 11 Troubleshooting 15 Specifications 16 Customer Helpline 20
GENERAL SAFETY IMPORTANT INFORMATION Read this manual thoroughly before you start using the Bar Refrigerator. The safety precautions instructions reduces the risk of fire, electric shock and injury when correctly complied to. Please follow all instructions and take notice of all warnings. Pay close attention to messages that follow this safety alert symbol or the words DANGER, WARNING or CAUTION. These words will be used to alert you of potential hazards that and injure you and others.
GENERAL SAFETY INSTRUCTIONS (Cont.) This appliance is intended to be used in household and similar applications such as: staff areas in shops, offices and other working environments; - farm houses and by clients in hotels, motels and other residential type environments; - bed and breakfast type environments; - catering and similar non-retail applications R600A WARNINGS NOTE: This model uses 0.022Kg of R600a flammable refrigerant in its sealed system.
GENERAL SAFETY INSTRUCTIONS (Cont.) To reduce risk of fire, electric shock or injury, always follow these basic precautions and accident prevention measures when using this appliance, including the below: INSTALLATION • Heavy: The product is heavy, be careful when moving it. To avoid back or other injury, have 2 people lift or mechanical aid when installing. • Damage: When unnoxing, thoroughly inspect the appliance carefully for any damage. If there is any damage, do not install the appliance.
GENERAL SAFETY INSTRUCTIONS (Cont.) USAGE CONDITIONS AND RESTRICTIONS • Children: Supervision over children is to ensure that they do not play with the appliance. Never allow them to use, play with or crawl inside the appliance. Cleaning and maintenance must not be done by children.
PRODUCT OVERVIEW 8
INSTALLATION • Safety first: Before installing your new bar fridge, read all safety instructions in this manual, especially the sections on electrical safety and installation. • Do not tilt the appliance more than 45º from upright when moving. • This appliance is designed to be freestanding only and is not be recessed or built in. • Do not apply force to any part such as the condenser or door. • Place the bar fridge on a strong, level floor that is solid enough to support the unit when it is fully loaded.
OPERATION 1. For first time use, Please make sure to set the thermostat dial to 3, then leave it powered on for 2-3 hours. Then set the thermostat to desired settings and place foods in the appliance. COMPARTMENT TEMPERATURE SETTING. The higher the numbered setting the lower/cooler the temperature inside refrigerator (setting #3 is the average temperature). 16- 10 Warmest cooling power, Coldest cooling power.
REVERSING THE DOOR This appliance has the capability of opening the door from either the left or right side. The appliance is delivered to you with the door opening from the left side. To change the opening direction, please follow the below instructions. Be sure to unplug the appliance to change the door. WARNING: To ensure correct reliable operation of the refrigerator, contact an authorised service agent to reverse the door for you.
REVERSING THE DOOR (Cont.) Step 3 Dismantle the door and the bottom hinge assembly and levelling feet, then assemble the bottom hinge assembly and levelling feet onto the other side. Step 4 Put the door on the bottom hinge and assemble the upper hinge, upper hinge cover and plastic screw hole caps successively.
TROUBLSHOOTING Problem The appliance does not operate Possible Cause • It is not plugged in. Make sure it is properly plugged in and there is power at the socket • The circuit breaker tripped or has blown a fuse. • A general power outage has cut power to your home. • The room temperature is higher then usual The fridge turns on and off frequently. • Too much food is within the fridge. • Door is open too often • Door not closed • Temperature set incorrectly.
SPECIFICATIONS Total Gross Volume 129 Litres Total Refrigerator Storage 127 Litres Climate Class T Rated Current 0.8 A Power Supply 220-240V ~ 50Hz Rated Power of Lamp 2W Energy Consumption 205 kW.h/y Refrigerant R600a(22g) Insulation Blowing Gas Cyclopentane Weights Net: 24.5 kg / Gross: 27.
CUSTOMER HELPLINE: 1300 296 699 DISTRIBUTED BY: Ayonz Pty Ltd 18
