User manual

4
Parts Identification
Figures 2-2 and 2-3 highlight the main components of the printer.

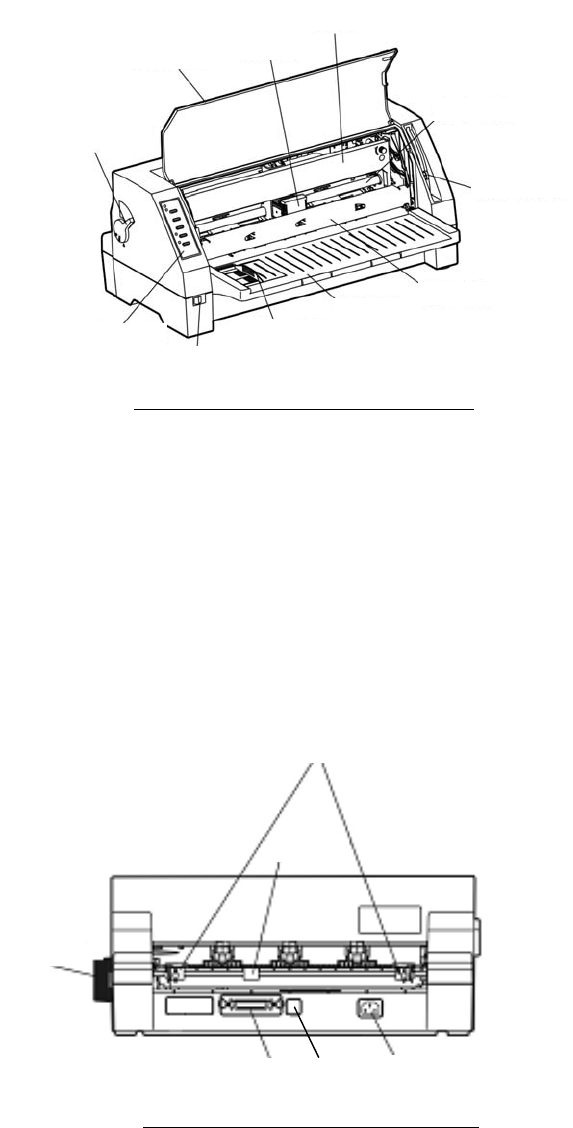

Figure 2-2 Main parts of printer (front view)
A Paper path select lever G Gap adjust lever
B Control panel H Carriage shaft
C Power switch I Ribbon cassette cartridge
D Cut sheet guide J Print head
E Front table K Window cover
F Sub friction roller
Figure 2-3 Main parts of printer (rear view)
A Paper feed knob D Power supply inlet
B USB interface connector E Paper guide pulley
C Parallel interface connector F Tractor
D
A
B
C
E
F
K
J
I
A
B
C
D
E
F
G
H
