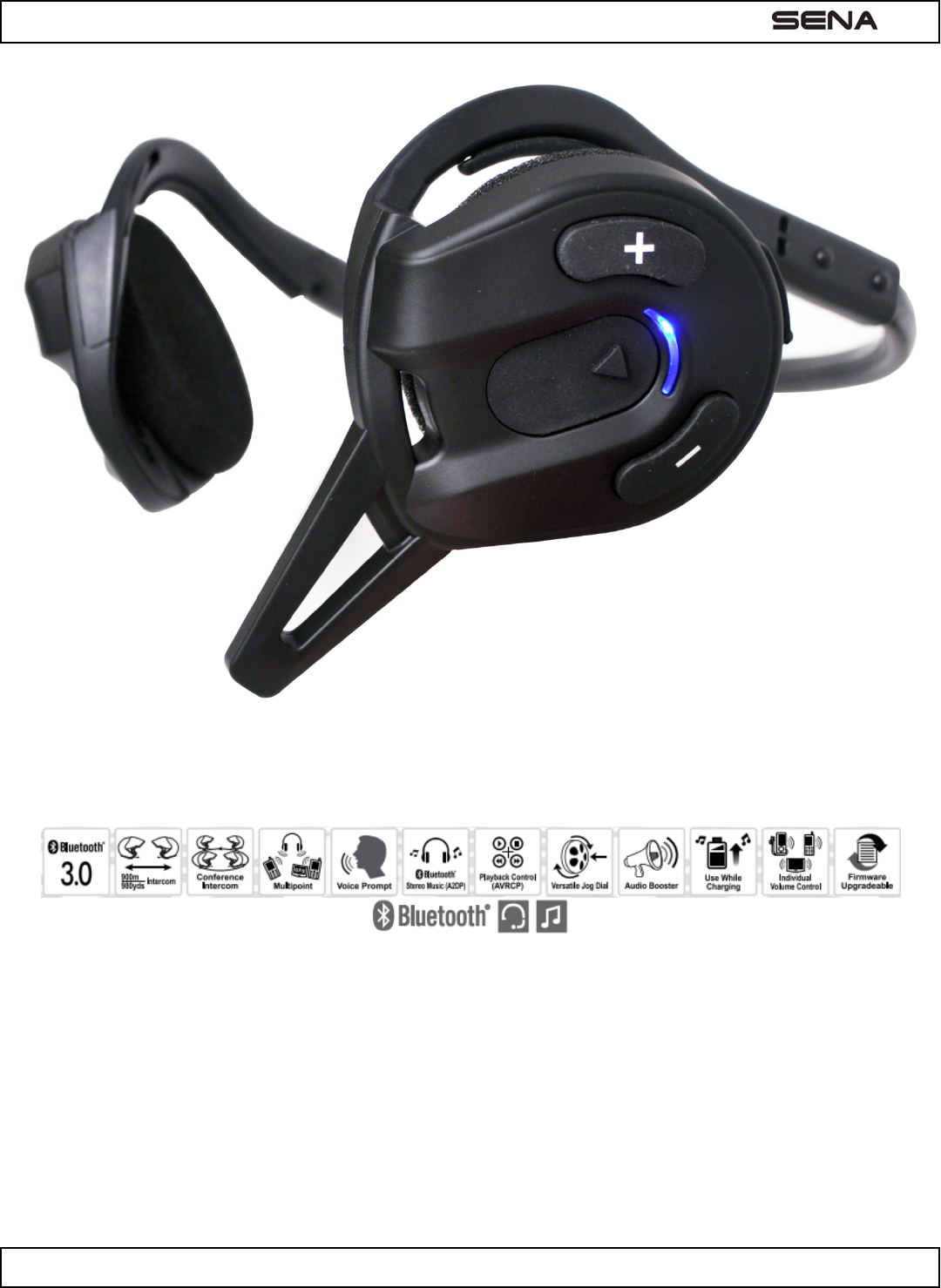

| NS10 NS10 Bluetooth Stereo Headset & Intercom SENA www.senabluetooth.
| NS10 1. POWERING ON/OFF AND CHARGING 1.1 Powering On Press the Center Button and the (+) Button at the same time for 1 second to power on. The blue LED turns on and you will hear ascending beeps and “Hello”. 1.2 Powering Off Tap the Center Button and the (+) Button simultaneously (you don’t need to press and hold in order for the system to power off). The red LED turns on for about 2 seconds until it turns off completely and you will hear “Goodbye” and descending beeps. 1.
| NS10 You can easily adjust the volume by tapping the (+) Button or the (-) Button. You will hear a beep when the volume reaches maximum or minimum level. The volume is set and maintained independently at different levels for each audio source even when you turn off and on the headset. For example, once you set the volume for mobile phone handsfree, it will not change even if you adjust the volume when you hear Bluetooth MP3 music.
| NS10 To go into mobile phone pairing mode, tap the (+) Button or the (-) Button until you hear a voice prompt, “Phone pairing”. Please refer to section 7.1 for details on mobile phone pairing. If you tap the (+) or (-) Button, you can exit from the phone pairing mode. 3.2 Multipoint Pairing Voice Prompt “Multipoint pairing” Factory Default N/A To go into multipoint pairing mode, tap the (+) Button or the (-) Button until you hear a voice prompt, “Multipoint pairing”. Please refer to section 7.
| NS10 Enable / Disable Tap the Center Button Tap the (+) Button or the (-) Button until you hear a voice prompt, “VOX phone”. If this feature is enabled, you can answer incoming calls by simply saying a word loudly enough, unless you are connected to intercom. For example, when you hear a series of beeps for an incoming call, you can answer the phone by saying “Hello” or any other word loudly. However, the phone VOX feature does not work if you are connected to intercom.
| NS10 You can disable voice prompts by configuration setting, but the following voice prompts are always on. - Voice prompts for configuration setting menu - Voice prompts for battery level Indicator - Voice prompts for factory reset 3.
| NS10 Multipoint Pairing None Phone Selective Pairing None Media Selective Pairing None VOX Phone Enable / disable VOX Intercom Enable / disable VOX Sensitivity - Set up 1 /2 / 3 / 4 / 5 or cancel - Enter adjustment mode - Save and exit Voice prompt Enable / disable Delete All Pairings Execute Factory Reset Execute Exit Configuration Execute Voice Configuration Menu & Button Operations 4.
| NS10 4.2 Multipoint Pairing Typical Bluetooth headsets can connect with only one HFP (Hands-Free Profile) device, but multipoint pairing allows the headset to connect with two HFP devices at the same time. So, when you already have a mobile phone connected with the NS10, you can also pair and connect a second mobile phone or other HFP devices such as GPS or Sena SR10, Bluetooth adapter. 1.
| NS10 If you use GPS only for turn-by-turn voice instructions, not for Bluetooth stereo music streaming, multipoint pairing is recommended for the GPS connection. Multipoint Bluetooth pairing allows the NS10 to connect two HFP devices at the same time: mobile phone and GPS navigation. Follow the steps below to pair the GPS using the multipoint pairing. 1. To enter into the voice configuration menu, press and hold the Center Button for 10 seconds until you hear a voice prompt, “Configuration menu”. 2.
| NS10 radio via SR10 for group communication as shown in the figure below. A GPS navigation or a radar detector which has headphone jack or audio line-out could be connected to the SR10 by wire. The GPS voice instruction or the radar detector alarm is also heard in the background via SR10 while having an intercom conversation or a phone call. Please refer to the SR10 user's guide for details. 5.
| NS10 2. Press and hold the Center Button for 5 seconds, then you will hear a mid-tone single beep and a voice prompt, “Intercom pairing” 3. Simply tap the Center Button of any one of the two headsets A or B (It doesn’t matter that you choose A or B.) and wait until the LEDs of both headsets turn to blue and intercom connection is automatically established. The two NS10 headsets A and B are paired with each other for intercom conversation.
| NS10 Note: The SMH5 cannot participate in three-way or four-way conference intercom with the NS10. The SMH5 has a limited capability of having two-way intercom with each other or with other Sena headset models. 7. FUNCTION PRIORITY The NS10 operates in the following order of priority: (highest) Mobile phone, Intercom, Stereo music by audio cable, (lowest) Bluetooth stereo music A lower priority function is always interrupted by a higher priority function.
| NS10 4. To reject a call, press the Center Button for 2 seconds until you hear a beep while the phone is ringing. 5. There are several ways to make a phone call: - Enter numbers on your mobile phone keypad and make a call. Then the call is automatically transferred to the headset. - In stand-by mode, press the Center Button for 3 seconds, to activate the voice dialing of your mobile phone. You will hear a high tone single beep. Your mobile phone has to support voice dialing.
| NS10 End intercom Single tap Start & End Two-way Intercom 10.2 Voice Activated Intercom (VOX Intercom) If VOX Intercom is enabled by the configuration setting as described in section 6.6, you can initiate an intercom conversation with the last connected intercom friend by speaking any word loudly. The easiest way to trigger intercom VOX is to blow into the microphone as if blowing dust off the microphone.
| NS10 As described in 6.4 of this user's guide, you can use a two-way radio and NS10 Bluetooth intercom simultaneously by using the Sena SR10, a Bluetooth Two-way Radio Adapter, along with the NS10. Incoming audio from the two-way radio is not interrupting an intercom conversation but is heard in background. This is useful when you have an intercom conversation with a passenger on the back seat and use a two-way radio for group communication with other motorcycle riders. 11.
| NS10 4. Now you (A) and two SMH10 intercom friends (B & C) are having a three-way conference intercom. 11.2 End Three-way Intercom When you are a member of an active three-way conference intercom, you can completely terminate the conference intercom or just disconnect an intercom connection with one of your active intercom friends. 1. Press the Center Button for 1 second until you hear a beep to terminate three-way conference intercom completely.
| NS10 12.2 End Four-way Intercom As same in the case of three-way intercom, you can completely get out of the four-way conference intercom or just disconnect a single intercom connection. 1. Press the Center Button for 1 second until you hear a beep to terminate four-way conference intercom. It terminates the intercom connections between you (A), and your intercom friends (B) and (C). 2.
| NS10 phone call End intercom first Tap the Center Button End phone call first Press the Center Button for 2“ or Wait for the called person to end the call Start & End Three-way Conference Phone Call 14. INTERCOM FAILURE When you try to start an intercom conversation with an intercom friend who is already having a conference intercom with other riders or a mobile phone call, you will hear a low tone double beep signifying an intercom busy signal. In this case, you have to try again later. 15.
| NS10 BATTERY INFORMATION The NS10 has an internal, non-removable external, rechargeable battery. Do not attempt to remove the battery from the device as you may damage the device. The battery can be charged and discharged hundreds of times, but it will eventually wear out. Recharge the battery only with Sena approved chargers designated for this device. Use of an unapproved charger may present a risk of fire, explosion, leakage, or other hazard.
| NS10 prevent possible harm to the environment or human health from uncontrolled waste disposal, please do not dispose of these products as unsorted municipal waste, but hand it in at an official collection point for recycling. CERTIFICATION AND SAFETY APPROVALS FCC Compliance Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: ● This device may not cause harmful interference.
| NS10 This product is CE marked according to the provisions of the R&TTE Directive (99/5/EC). Hereby, Sena declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. For further information please consult http://www.senabluetooth.com. Please note that this product uses radio frequency bands not harmonized within EU.
| NS10 By way of purchasing this Device and not returning it for a full refund (see below), you are irrevocably releasing, indemnifying from any liability, loss, claim and expense (including attorney’s fees) and holding Sena harmless for any bodily injuries, harm or death as well as losses or damages in goods, to any Vehicles including your own, or to any property or asset that belong to you or to third parties, any of which may result from using the Device under any circumstances or conditions and irrespec
| NS10 limited warranty extends only to the original consumer purchaser of the Product and is not assignable or transferable to any subsequent purchaser/end-user.
| NS10 WARNING Sena informs that using this device in public traffic may not be authorized by the law. Please check your local law and use this device only out of public traffic such as private properties or closed circuits. If the simultaneous use of both ear speakers while riding a motorcycle is prohibited by your local law, please use only a single ear speaker while riding. Sena denies any liability should you choose not to respect this warning.
| NS10 SENA www.senabluetooth.comUser's Guide for Firmware v1.
