3.2.4.2 Access Point Operating Mode
 In order to configure the device as an Access Point,
select Access Point from the Operating Mode drop-
down list.
 A dialog box will appear to notify you that the system
will restart in order for the change to take effect. Click
on the OK button to continue.
 Please wait while the device counts down and restarts
into the new operating mode.

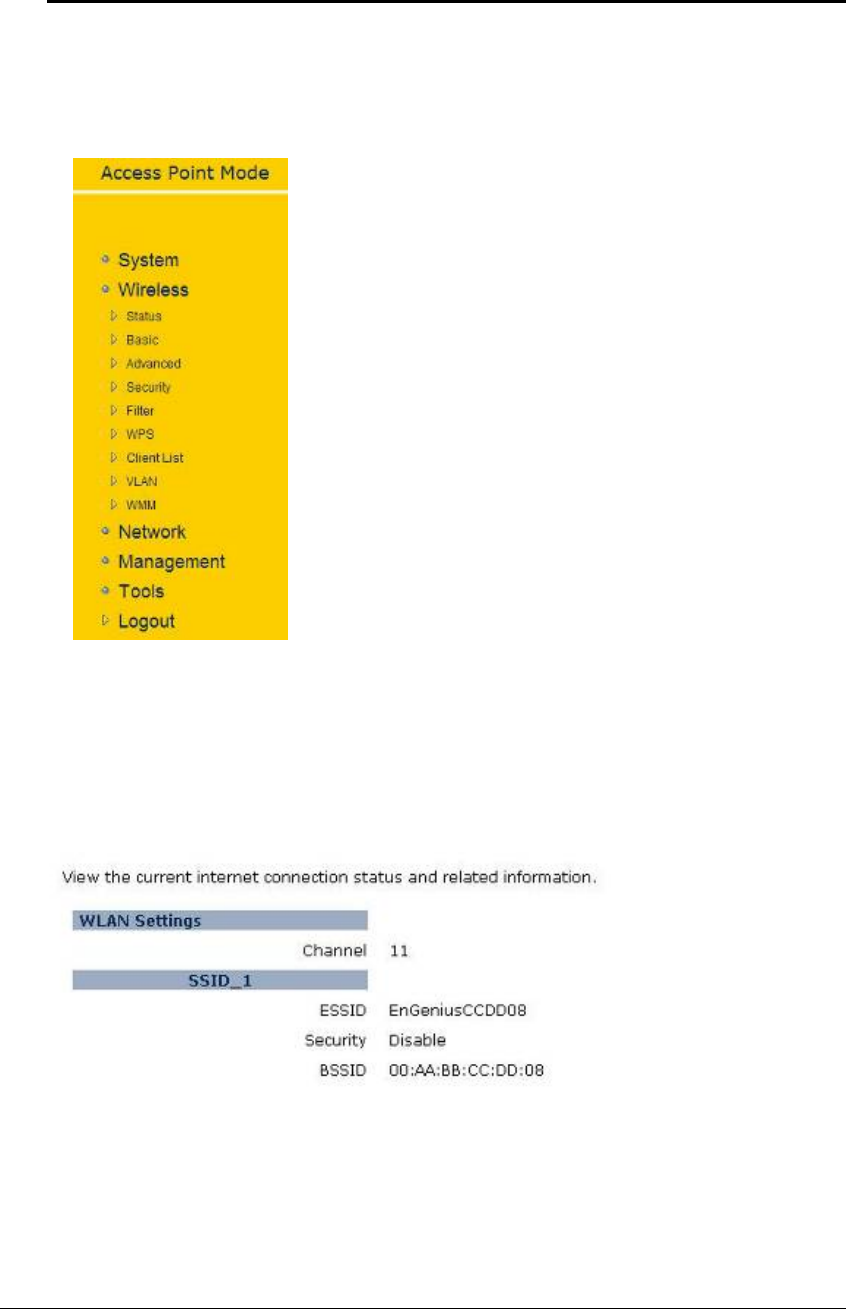

 Once the device has restarted into Access Point mode,
you will see a new drop-down menu with nine options
which are: Status, Basic, Advanced, Security, Filter,
WPS, Client List, VLAN, and WMM. Each of the
options is described in detail below.
3.2.4.2.1 Status
 Click on the Status link under the Wireless drop-down menu. This page will display the
current wireless settings such as SSID, Channel, Security and BSSID (MAC address)
3.2.4.2.2 Basic
 Click on the Basic link under the Wireless drop-down menu. This page will display the
current wireless settings such as SSID, Channel, Security and BSSID (MAC address).
