3.2.4.3 Client Bridge Operating

Mode

 In order to configure the device as an Access Point,

select Client Bridge from the Operating Mode

drop-down list.

 A dialog box will appear to notify you that the

system will restart in order for the change to take

effect. Click on the OK button to continue.

 Please wait while the device counts down and

restarts into the new operating mode.

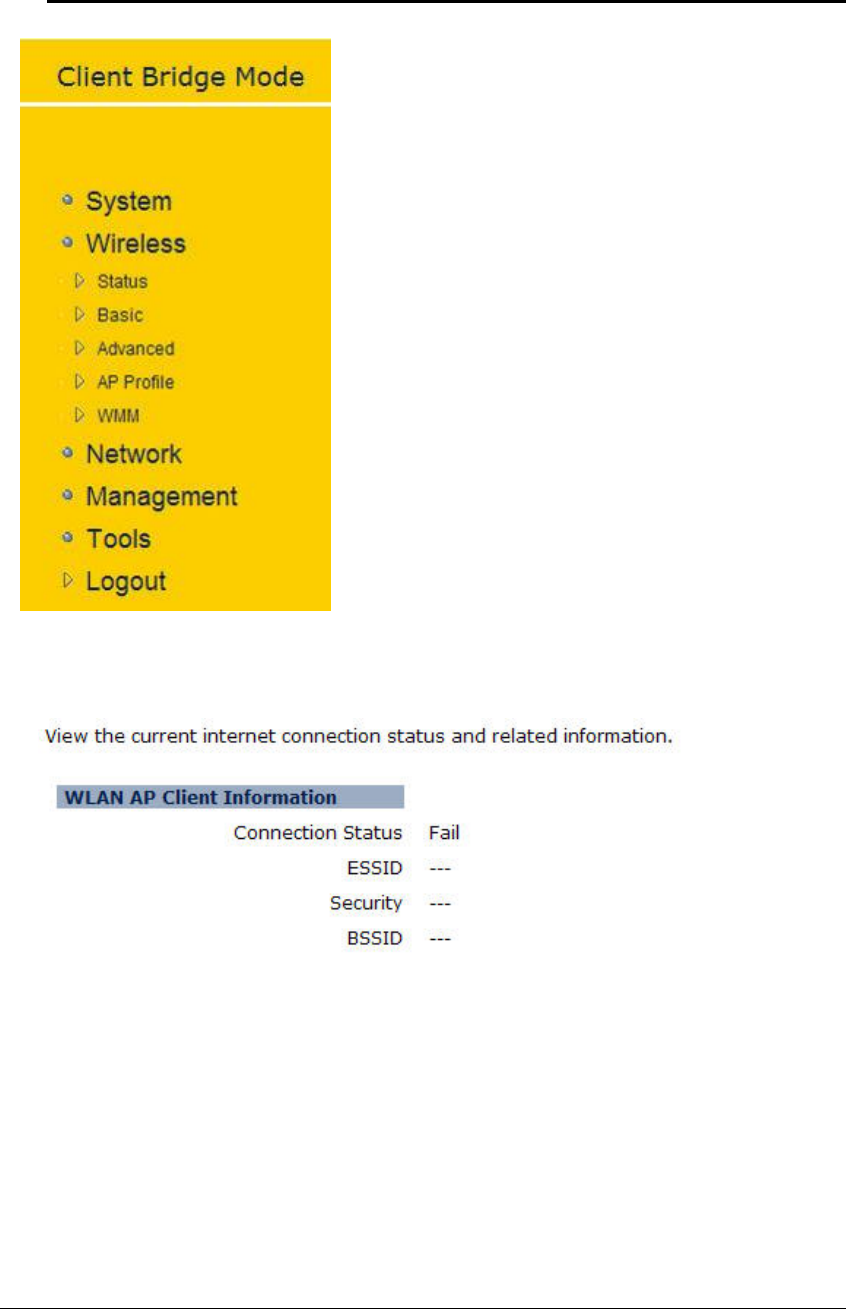

 Once the device has restarted into Client Bridge

mode, you will see a new drop-down menu with

fice options which are: Status, Basic, Advanced,

AP Profile, and WMM. Each of the options is

described in detail below.

3.2.4.3.1 Status

 Click on the Status link under the Wireless drop-down menu. This page will display the

current wireless settings such as SSID, Channel, Security and BSSID (MAC address)

3.2.4.3.2 Basic

 Click on the Basic link under the Wireless drop-down menu. This page will display the

current wireless settings such as SSID, Channel, Security and BSSID (MAC address).
