 Encryption: Select WPA pre-shared key from the drop-down list.
 WPA Type: Select TKIP, AES, or WPA2 Mixed. The encryption algorithm used to secure
the data communication. TKIP (Temporal Key Integrity Protocol) provides per-packet key
generation and is based on WEP. AES (Advanced Encryption Standard) is a very secure
block based encryption. Note that, if the bridge uses the AES option, the bridge can associate
with the access point only if the access point is also set to use only AES.
 Pre-shared Key Type:: The Key Type can be passphrase or Hex format.
 Pre-Shared Key: The key is entered as a pass-phrase of up to 63 alphanumeric characters in
ASCII (American Standard Code for Information Interchange) format at both ends of the
wireless connection. It cannot be shorter than eight characters, although for proper security it
needs to be of ample length and should not be a commonly known phrase. This phrase is used
to generate session keys that are unique for each wireless client.
 Click on the Apply button to save the changes.

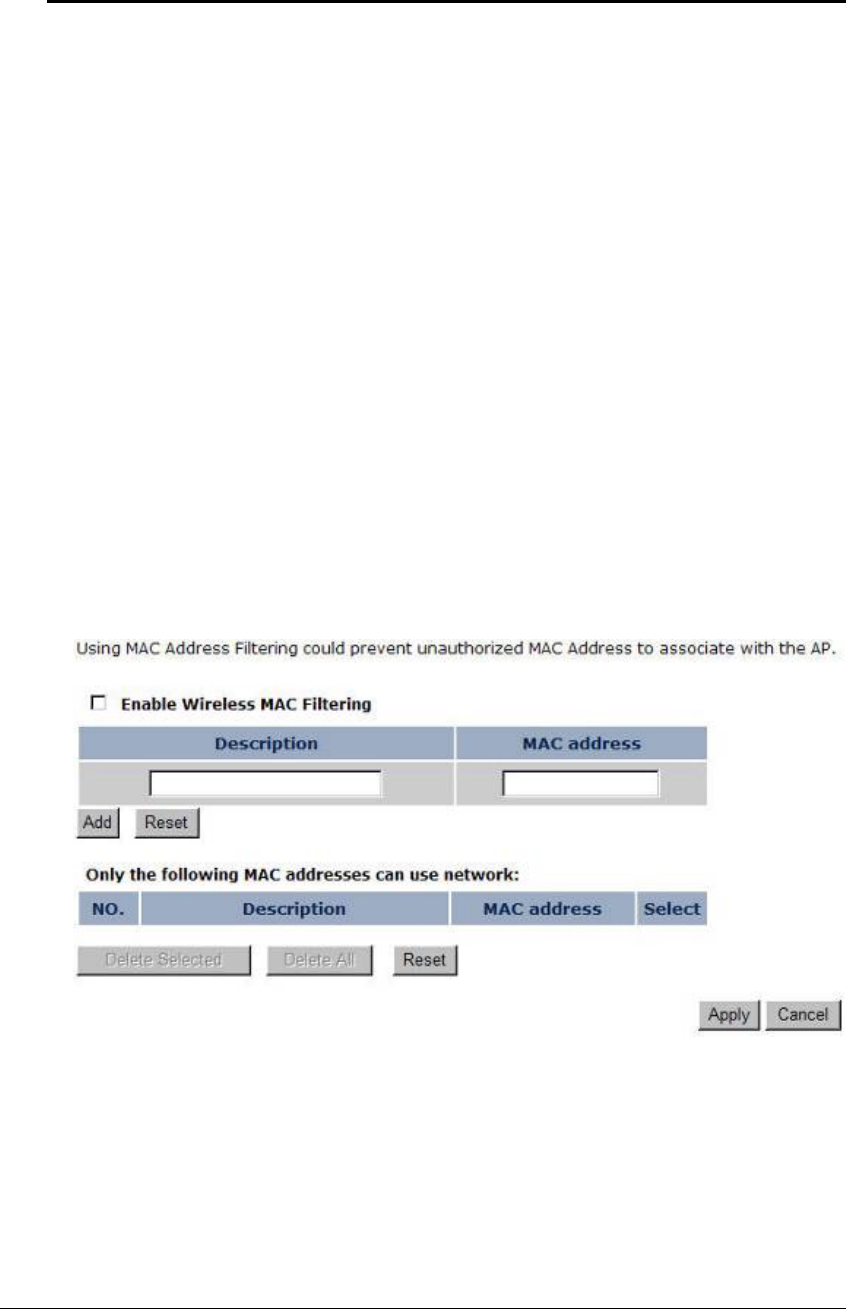

3.2.4.5.5 Filter
You will be able to block out connections from unauthorized MAC Address by setting filter
policy.
 Check on the Enable Wireless MAC Filtering
 Type in Description as a note for your own reference
 Enter the MAC address that you allow for accessing to your device
 Press Add to apply the policy
 Click Apply for the setting to take effect
3.2.4.5.6 WPS (Wi-Fi Protected Setup)
 Click on the WPS link under the Wireless drop-down menu
