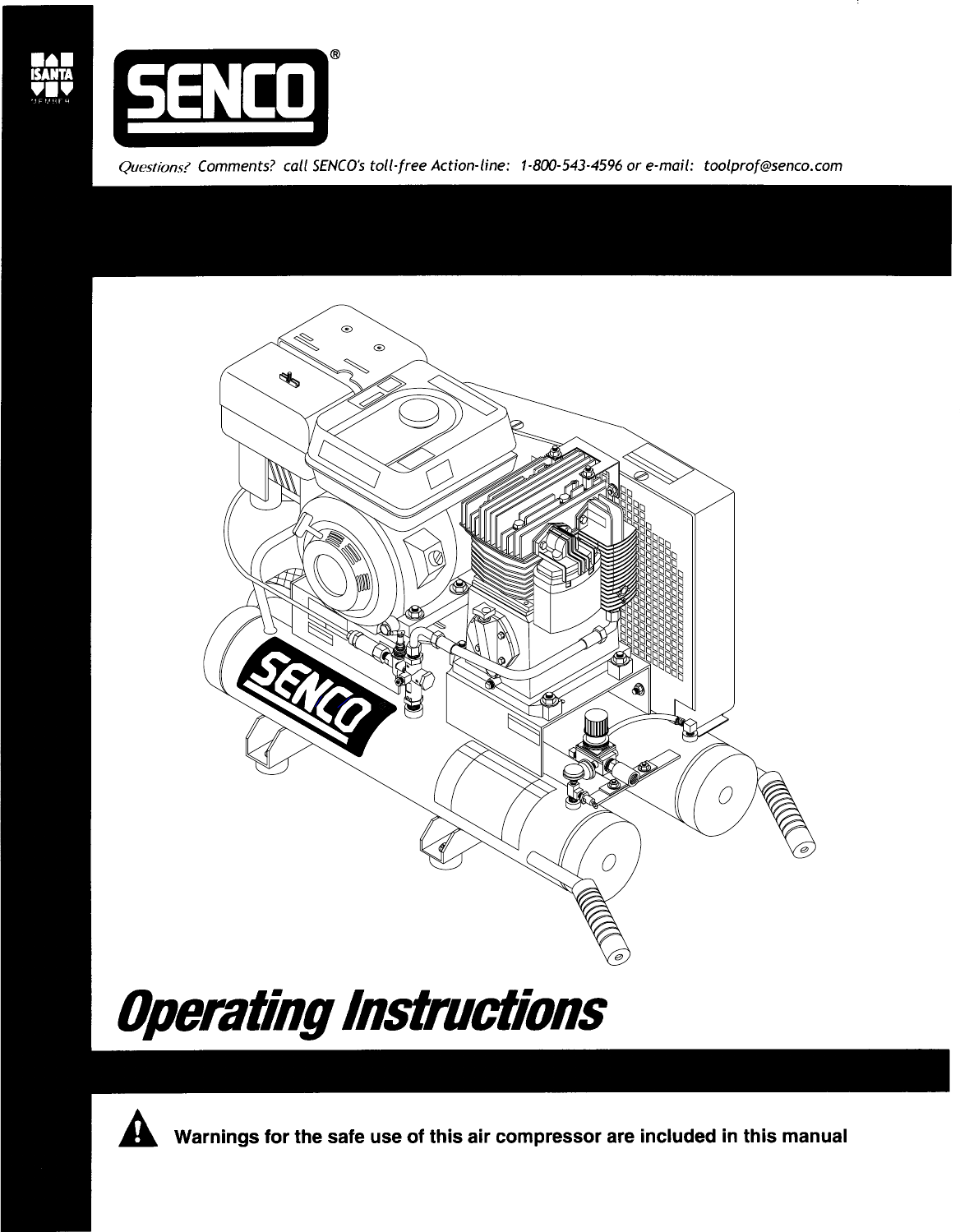

PC2015 Gasoline Air Compressor PC2012GasolineAirCompressor Questions? Comments? call SENCO's toll-free Action-line: 1-800-543-4596 or e-mail: toolprof@senco.com OPERATINGINSTRUCTIONS NFD0486 Issue: 12/18/97 Document #MTM008 Issue Date: 04/06/00 ©1998 by SENCO Products, Inc. © 2000 by SENCO Products, Inc. Warnings for safe use of this air compressor are in this manual.
TABLE OF CONTENTS INTRODUCTION ........................................................................ 3 SAFETY ALERT ........................................................................ 3 INSPECTION .............................................................................. 3 SAFETY WARNINGS .............................................................. 4-7 EXPLOSION OR FIRE ......................................................... 4 BURSTING .......................................................
INTRODUCTION Congratulations on the purchase of your new Senco® Air Compressor! You can be assured your Senco® Air Compressor was constructed with the highest level of precision and accuracy. Each component has been rigorously tested by technicians to ensure the quality, endurance and performance of this air compressor. This operator's manual was compiled for your benefit.
SAFETY WARNINGS READ ALL SAFETY WARNINGS BEFORE USING AIR COMPRESSOR HAZARD RISK OF EXPLOSION OR FIRE POTENTIAL CONSEQUENCE Serious injury or death may occur from normal sparks in the engine ignition system or engine exhaust/ muffler. PREVENTION Always operate air compressor in a well ventilated area free of flammable vapors, combustible dust, gases or other combustible materials. If spraying flammable material, locate the air compressor at least 20 feet away from the spray area.
SAFETY WARNINGS READ ALL SAFETY WARNINGS BEFORE USING AIR COMPRESSOR HAZARD POTENTIAL CONSEQUENCE PREVENTION RISK OF BURSTING Serious injury or death may occur from an air tank explosion if air tanks are not properly maintained. Drain air tank daily or after each use to prevent moisture buildup in the air tank. If air tank develops a leak, replace the air tank immediately. Never repair, weld or make modifications to the air tank or its attachments.
SAFETY WARNINGS READ ALL SAFETY WARNINGS BEFORE USING AIR COMPRESSOR PREVENTION HAZARD POTENTIAL CONSEQUENCE RISK Never allow any part of your body Serious injury could occur from OF BURNS or other materials to make contact touching exposed metal parts. with any exposed metal parts on These areas can remain hot for the air compressor. some time after the air compressor is shutdown. Never allow any part of your body to contact the engine muffler or adjacent areas.
SAFETY WARNINGS READ ALL SAFETY WARNINGS BEFORE USING AIR COMPRESSOR HAZARD RISK FROM NEGLIGENCE PREVENTION POTENTIAL CONSEQUENCE Risk of injury from negligent use. Never allow children or adolescents to operate this air compressor! Stay alert-watch what you are doing. Do not operate the air compressor when fatigued or under the influence of alcohol or drugs. Know how to stop the air compressor. Be thoroughly familiar with controls. RISK OF AIR COMPRESSOR DAMAGE Risk of major repair.
PDAC041 PC2015 GASOLINE AIR COMPRESSOR FEATURES 8 Senco® Gasoline Air Compressor Manual 2000
PRESRING.TIF 0MAC019-DUB AIR TANK DRAIN VALVE: The drain valve is used to remove moisture from the air tank(s) after the air compressor is shut off. NEVER attempt to open the drain valve when more than 10 PSI of air pressure is in the air tank! To open the drain valve, turn the knob counterclockwise. AIR TANK PRESSURE GAUGE: The air tank pressure gauge indicates the reserve air pressure in the air tank (s). AIR COMPRESSOR PUMP: To compress air, the pistons move up and down in the cylinders.
PREPARATION INITIAL SET-UP: 1. Read safety warnings before setting-up air compressor. 2. Ensure the oil level is above the minimum notch and below the maximum notch on the dipstick. If low, add Senco® part number PC0344 compressor pump oil. LOCATION: CAUTION In order to avoid damaging the air compressor, do not incline the air compressor transversely or longitudinally more than 10°. 1. Place air compressor at least 12 inches away from obstacles that may prevent proper ventilation.
OPERATION PRE-START CHECKLIST: 1. Check oil level. Add if necessary. 2. Remove any moisture in the air compressor air tank. Remove excessive pressure with an air tool, then open the air tank drain valve in the bottom of the air tank. Close tightly when drained. WARNING Risk of bodily injury. NEVER attempt to open the drain valve when more than 10 PSI of air pressure is in the air tank! 3. Make sure the engine switch is in the "OFF" position. 4. Make sure all safety valves are working correctly. 5.
TROUBLESHOOTING SYMPTOM 1. Engine will not start. PROBABLE CAUSE Various engine problems. REMEDY Refer to engine manual accompanying your air compressor. SYMPTOM 2. Noisy operation. PROBABLE CAUSE Loose engine pulley or pump flywheel. REMEDY Tighten pulley and or flywheel. Lack of oil in the pump. Add correct amount of oil. Check for bearing damage. Carbon deposits on pistons or valves. Remove cylinder head and inspect. Clean or replace. Bearing, piston or connecting rod failure.
TROUBLESHOOTING SYMPTOM 8. Insufficient pressure at air tool or accessory. PROBABLE CAUSE REMEDY Pressure regulator knob not turned to high enough Adjust pressure regulator knob to proper setting or pressure or defective pressure regulator. replace. Restricted air intake filter. Clean or replace. Air leaks. Check for leaks and repair. Hose or hose connections are too small or long. Replace with larger hose or connectors. Slipping belt. Tighten or replace.
Notes 14 Senco® Gasoline Air Compressor Manual 2000
Specifications Mo d e l # PC2015 E ng i ne Oil Type Oil Capacity Low Oil Protection Fuel Type Fuel Capacity Maximum No Load RPM SAE 10W 30 37.2 oz. Oil Alert Unleaded Gasoline 86 Octane Minimum 1.6 Gallon 3450 C o mp re s so r P ump Number of Cylinders 2 Compression Stages 2 Bore-1st Stage 3.74" Bore-2nd Stage 2.05" Stroke 2.36" RPM 1392 Flywheel Lubrication Oil Quantity Oil Type Crankcase 15.7 Splash 31.1 oz.
