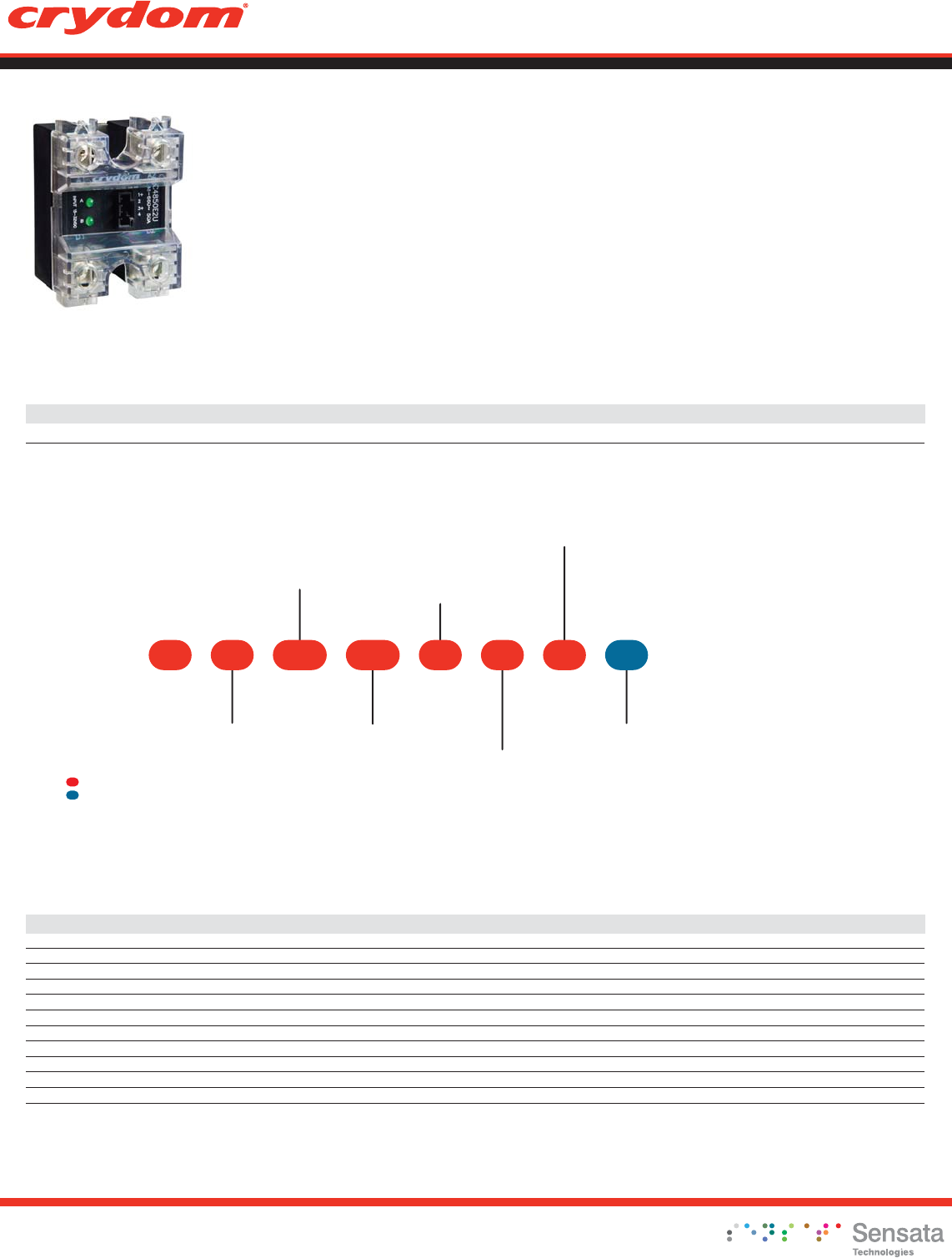

Evolution Dual Series

• 25A & 50A Output rating per channel @ 40°C

• 24 to 280 & 48 to 600VAC Operating voltage

• 4-32VDC Control input

• Three input termination options

• Zero turn-on outputs

• Input status LED indicator for each channel

• Available with IP20 “Touch-Safe” Covers

• UL508 Endurance Rating

PRODUCT SELECTION

480V, 50A480V, 25A240V, 50A240V, 25AControl Voltage

4-32 VDC

CD2425W2U

CD2450W2U CD4825W2U CD4850W2U

AVAILABLE OPTIONS

OUTPUT SPECIFICATIONS

Cx4850xxxxCx4825xxxxCx2450xxxxCx2425xxxxDescription

Operating Voltage (47-440Hz) [Vrms] 24-280 24-280 48-600 48-600

Load Current Range (3) [Arms] 0.15-25 0.15-50 0.15-25 0.15-50

Transient Overvoltage [Vpk] 600 600 1200 1200

Maximum Off-State Leakage Current @ Rated Voltage [mArms] 1.0 1.0 1.0 1.0

Minimum Off-State dv/dt @ Maximum Rated Voltage [V/µsec] (2) 500 500 500 500

Maximum 1 Cycle Surge Current (50/60) [Apk] 275/300 710/750 275/300 710/750

Maximum Surge Current 50Hz (20ms) [Apk] 275 710 275 710

Maximum On-State Voltage Drop @ Rated Current [Vpk] 1.3 1.3 1.3 1.3

Thermal Resistance Junction to Case (Rjc) [°C/W] 0.65 0.33 0.65 0.33

Maximum I² t for Fusing 50/60Hz (1/2 cycle) [A² sec] 380/370 2520/2320 380/370 2520/2320

Minimum Power Factor (with Maximum Load) 0.5 0.5 0.5 0.5

Do not forget to visit us at: www.crydom.com

Datasheet

Panel Mount

Series

Output Terminal

Orientation

U: A channel top,

B channel bottom

V: A channel on left,

B channel on right

Cover

C: Included

D: Not Included

Control Voltage

W: 4-32 VDC

Operating Voltage

24: 24-280 VAC

48: 48-600 VAC

Rated Load Current

25: 25 Amps

50: 50 Amps

Input Connector

2: Key Locking Connector

3: 4 Pin Connector

accepting Screw Terminals

4: 4 Pin Spring Terminal

Thermal Pad

Blank: Not Included

H: Included

2524DC W 2 V H

Required for valid part number

For options only and not required for valid part number

Not all part number combinations are available.

Contact Crydom Technical support for information on

the availability of a specific part number.

(1)
