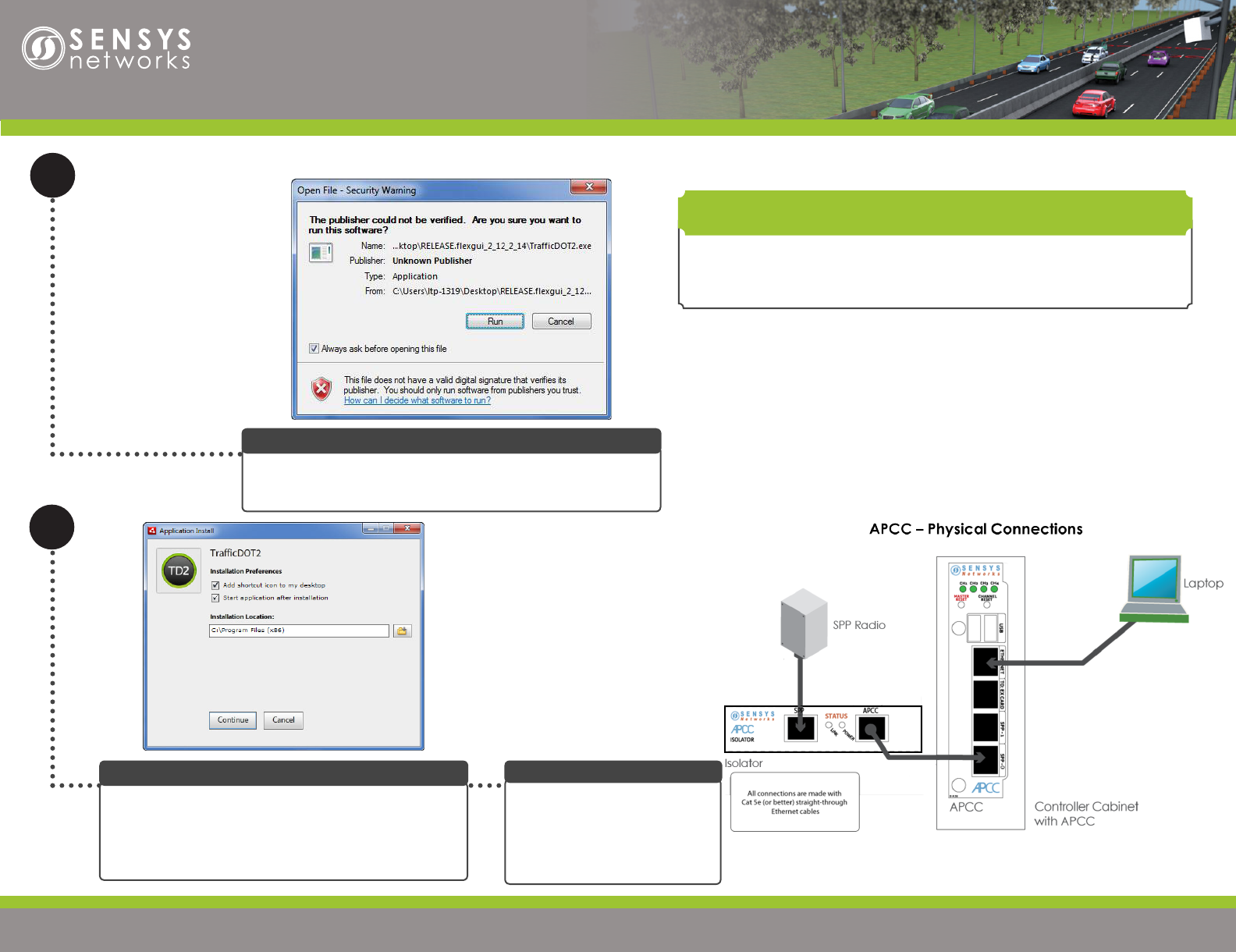

Quick Start Guide: Access Point Controller Card (APCC)

Set Up

Download the installation package from the Sensys Networks

website: http://www.sensysnetworks.com/products/trafcdot.

Double-click on TrafcDOT2.exe and click Run.

Download & Install Software

Cable the devices together with

Cat5 cables. Turn on controller.

Note: Until Master Mode is on,

the Power and Link light will

be off.

Connect Cables

• Internet access is required to download TrafcDOT2 and Adobe Air, or you

need an ofine version of Adobe Air and TrafcDOT2 same subnet as

AP/APCC.

• You must be able to change network setting of your laptop.

Recommendations

Click the checkboxes to select desired preferences. Click

Continue to accept the default installation location.

Note: Click the folder icon to select another location for

TrafcDOT installation.

Select Installation Preferences

Summary of content (4 pages)

PAGE 1
Quick Start Guide: Access Point Controller Card (APCC) 1 Set Up Recommendations • Internet access is required to download TrafficDOT2 and Adobe Air, or you need an offline version of Adobe Air and TrafficDOT2 same subnet as AP/APCC. • You must be able to change network setting of your laptop. Download & Install Software Download the installation package from the Sensys Networks website: http://www.sensysnetworks.com/products/trafficdot. Double-click on TrafficDOT2.exe and click Run.
PAGE 2
Quick Start Guide: Access Point Controller Card (APCC) 2 Connect Run TrafficDOT Click the TrafficDOT icon to start the configuration program. Select Master Mode Check Master Mode for each installed SPP radio and then click Turn On Selected SPP(s). Type in IP Address Select an APCC IP Address and click Connect. Save Changes Click Yes to save to flash memory. Note: Once Master Mode is on the Power LED on APCC isolator should be on and the Link light should blink about every second.
PAGE 3
Quick Start Guide: Access Point Controller Card (APCC) 3 Run Open AP Config Panel Click on the APCC to open the Access Point Configuration Panel. Set RF Channel Click the Radio window: Save Changes Click Yes to save to flash memory. 1. Select RF Channel. The entries in the RF Channel drop-down list correspond to the 16 channels available for use. Select an entry from the list by clicking it. The factory default channel is zero. 2. Click Apply. 1608 Berkeley CA CA 94710| 94710 | info@sensysnetworks.
PAGE 4
Quick Start Guide: Access Point Controller Card (APCC) 4 Manage Main Windows • The default radio channel of the access point and sensors is Channel 0 (zero). Open System Config Panel Click the System Config tab to open the System Configuration Panel. Start Controller Link & Set Time Zone Click the Other tab (a), specify Time Zone (b), click Save to AP(c). • All sensors or repeaters on the APCC’s channel are found on the Map View Tray or Table windows.
