Physical Details - Network Camera
Front - Network Camera

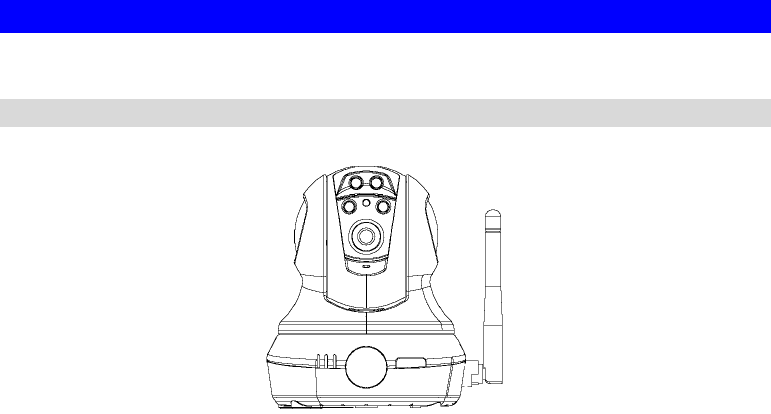

Figure 2: Front Panel
White Light LEDs
These White Light LEDs are designed for the supply of backlighting
while under the low-light environments. The LEDs can be turned on
by Event Trigger when the light is insufficient. They can also be
manually turned on/off on the View Video Screen.
Day/Night Sensor
This is hardware sensor to detect LUX.
Lens
No physical adjustment is required or possible for the lens, but you
should ensure that the lens cover remain clean. The image quality is
degraded if the lens cover is dirty or smudged.
Microphone
The built-in microphone is mounted on the front.
Power LED
(Green)
On - Power on.
Off - No power.
Blinking - The Power LED will blink during start up. This will take
15 to 20 seconds.
Active LED
(Green)
Off - No user is viewing the camera.
Blinking - User(s) is viewing the camera.
Network LED
(Green, Amber)
On (Green) - Wireless or LAN connection is available.
Off - Wireless or LAN is not connected.
Blinking (Green) - Data is being transmitted or received via the
LAN or Wireless connection.
On (Amber) - If the LED is on for 5 seconds, the WPS is not
processing successfully.
Blinking (Amber) - WPS function is being processed.
PIR Sensor
The PIR sensor is designed for human body detection.
Privacy Button
On (Green) - The privacy button is in use.
Off - The privacy button is not activated.
