Operating instructions

6
2.0 Parts List
1.1 SRPM Parts List
Qty
(1) Setra SRPM assembly
(2) Barbed Coupling, Brass
(2) 1/4 inch Tube, Silicone, Inter-Connect
(4) 6-32 x 1/2” Mounting Screws for SRPM Base
Not Included: Supplied by User
(2) Single Gang Electrical Box for RPS Plates
(1) Double Gang Metal Electrical Box with Grounding
Stud
(1) 4 x 4 inch Metal Plaster Ring
(1) Door Switch SPDT or SPST, N.O., as needed
1.2 Model SRAN (Option) Parts List
Qty
(1) Annunciator Assembly
Not Included: Supplied by User
(1) Single Gang Electrical Box
1.3 Accessories (Option) Parts List
Qty
(2) Part # RPS, Static Pressure Fitting Plate
Not Included, Supplied by User
(2) Single Gang Electrical box for RPS Plates
23

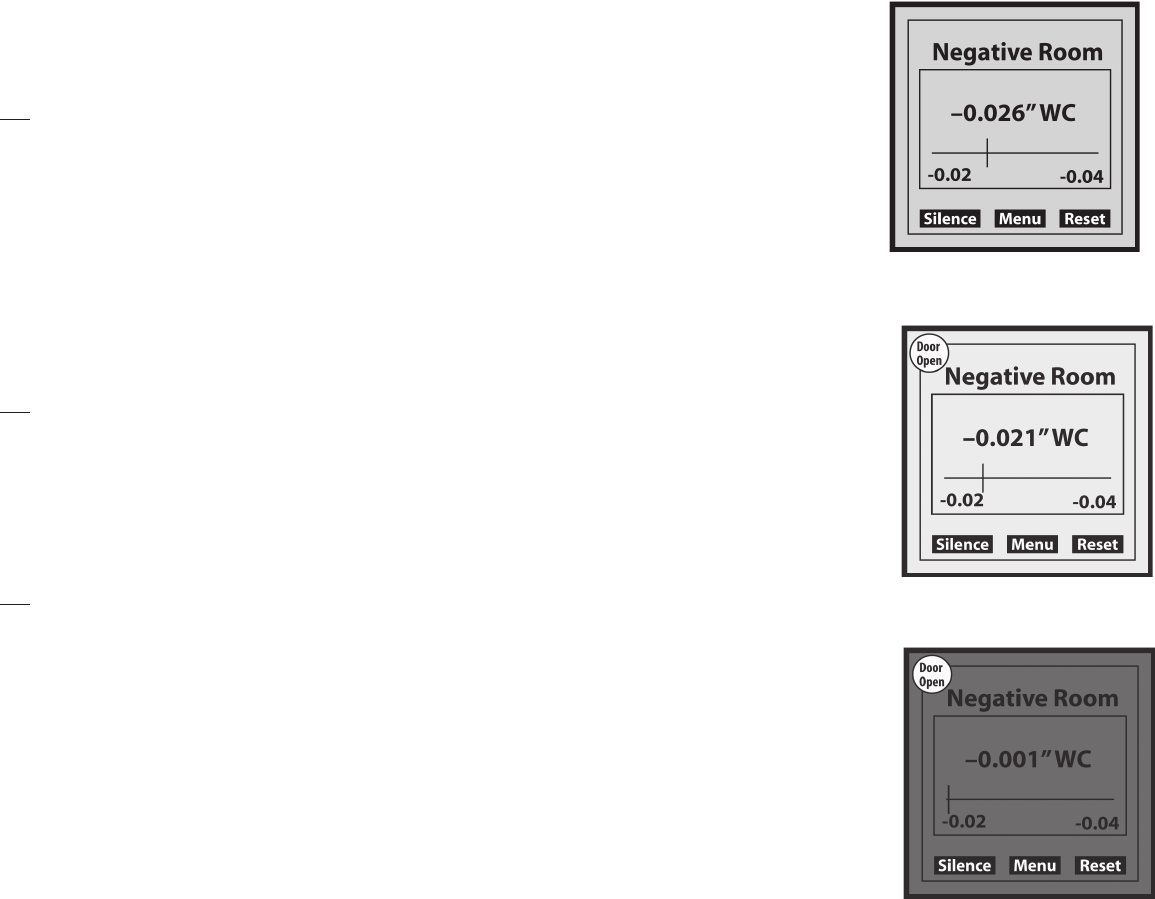

8.8 Pressure Monitoring Screens
The actual room static pressure is shown as a number on the LCD and visually as
a “Moving Bar” indicator operating between the preset pressure limits.
Normal room pressure condition within the preset pressure limits is verified by a
Green colored screen
Normal room pressure condition within limits turns screen to yellow when door
is open, indicating “Pre-alarm”.
Room static pressure outside preset limits is indicated by a Red screen after expi-
ration of alarm “time delay”.
Green Screen
Normal
Yellow Screen
Pre-Alarm
Red Screen
Alarmed
