User's Manual

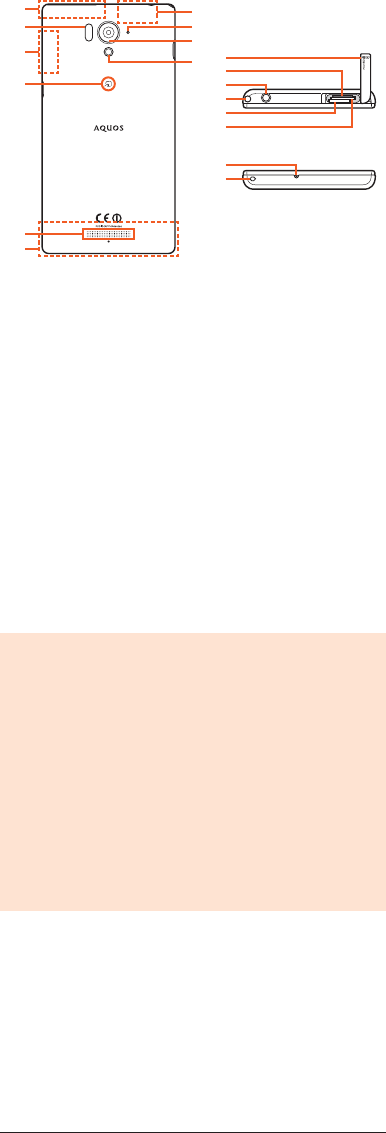

■ Back/Top and Bottom
⑪
⑯
⑰
⑱
⑲
⑳
㉑
㉔
㉕
㉒
㉖
㉓
③
⑮
⑪
⑬
⑭
⑫
⑪ Internal antennas
⑫ Infrared port
⑬ GPS antenna
⑭
&
mark
Hold it over a reader/writer when using Osaifu-Keitai
®
/NFC.
Send and receive data via IC communication.
⑮ Speaker
⑯ Wi-Fi
®
/Bluetooth
®
antenna
⑰ Recording microphone
⑱ Out camera lens
⑲ Mobile light
⑳ au Nano IC Card (LTE)/microSD memory card cover
㉑ IMEI tray
Allows you to confirm the product’s IMEI.
㉒ Earphone/Microphone jack
㉓ TV antenna
㉔ microSD m
emory card slot
㉕
au Nano IC Card (LTE) tray slot
㉖ Mouthpiece (Microphone)
Transmits your voice to the other party during a call. It is also used for
recording sounds. Take care not to cover the microphone with your fingers
etc. when using it.
◎ The back cover of the product cannot be removed. Removing it forcibly
may cause damage or a fault.
◎ The battery is built into the product, and cannot be removed by the
customer. To force the power off, refer to “Turning the Power Off Forcibly”
(▶P. 14).
Grip sensor
◎ Grip sensor may not work properly in the following cases, which may
cause malfunction.

Operation with gloved hands

Operation while
the product is equipped with a case, cover, etc.
*

Operation while the product is wet

Operation while a metallic object touches the sensor
* Depending on the case or cover, you may be able to use Grip sensor with the
product equipped with it. Set “Putting cover setting” to “Covered” after
equipping the product with the case or cover.
Internal antennas, Wi-Fi
®
/Bluetooth
®
antenna
◎ Antennas are built into the product. Do not cover with hand during calls
or data communication, or place stickers over antennas. Doing so may
af
fect call/communication quality.
