Outline
1
• You can cut your camera costs by using your current camera (IV-S33M)
Two, commercially available EIA cameras can be connected using an IV-S33EA1 special converter. This
means that you can use your current EIA cameras the same as before, and just replace your image
processing section with the IV-S33M. Installation and adjustment of lighting, camera, and lenses is easy
and can cut your costs.
• CCD trigger function does not need an external sensor
After a trigger window is setup, the IV-S30 does not need an external sensor if it is scanning moving
objects. To set up a trigger, you can select from binary image conversion, average density, and gray
search techniques. The gray search mode is useful for a workpiece for which you cannot easily establish
the density range.
* The gray search trigger function is only available on the IV-S33M.
• Shutter speed freely set
The shutter speed can be set anywhere between 1/30 and 1/10000 second for each object type. Practi-
cally, this means that the light level can be adjusted without changing the lighting equipment for each
object type. The random shutter function is used to close the shutter when a trigger event is detected, so
that precise still images of moving objects can be scanned.
• Easily and automatically set threshold value and judgement criteria (IV-S33M)
Using the SET key, the IV-S33M can automatically set the threshold values (binary conversion, density
difference, and edge width), that used to be set by entering numbers manually. To determine the upper
and lower limits of the OK and NG criteria, you only need to measure an OK workpiece. Therefore, you no
longer need to rely on skill, or experience to make accurate measurements at high speed.
• Automatic search reference images (IV-S33M)
The controller automatically searches for the maximum contrast area within the measurement area, and
detects it virtually instantly. Mistake-free work can now be performed quickly.
* This can be used for mis-collation checks of printed matters.
• Simple measurements of position, detection of the same workpiece and counting quanti-
ties (IV-S33M)
By using the degree of match inspection functions for multiple workpieces and position measurement for
multiple workpieces, the controller can detect up to 128 workpieces in one image that meet or exceed a
specified degree of match with the reference image. The controller can count quantities and measure the
positions of workpieces that have complicated structures of light levels and are difficult to convert to
binary images.
• Effective when checking for angular deviation, very good as a robotic eye
The controller can detect objects turned through a full 360˚ of orientation. It can inspect printing at great
angles off the main axis, and can be used in robotic inspection machines.
• CE approval applied for, widely accepted in international markets
The reliability of the IV-S30 means that it can be used in units destined for overseas markets.
• Integrated measuring programs allow the controller to be used for inspection and mea-
surement immediately
Simple operations on the remote keypad let you select the desired measuring program to suit your appli-
cation. Since there is no need to develop measuring programs, this unit is easy set up and you can start
measuring products the same day you receive it.
- Various measuring programs
Positional deviation measurement, degree of match inspection, distance and angle
measurement, lead inspection, area measurement by binary conversion, counting by binary
conversion, label measurement by binary conversion, point measurement, BGA/CSP
inspection*
1
, multiple position measurement*
2
, and multiple degree of match inspection*
2
.
*
1
IV-S32M/S33M only, *
2
IV-S33M only.

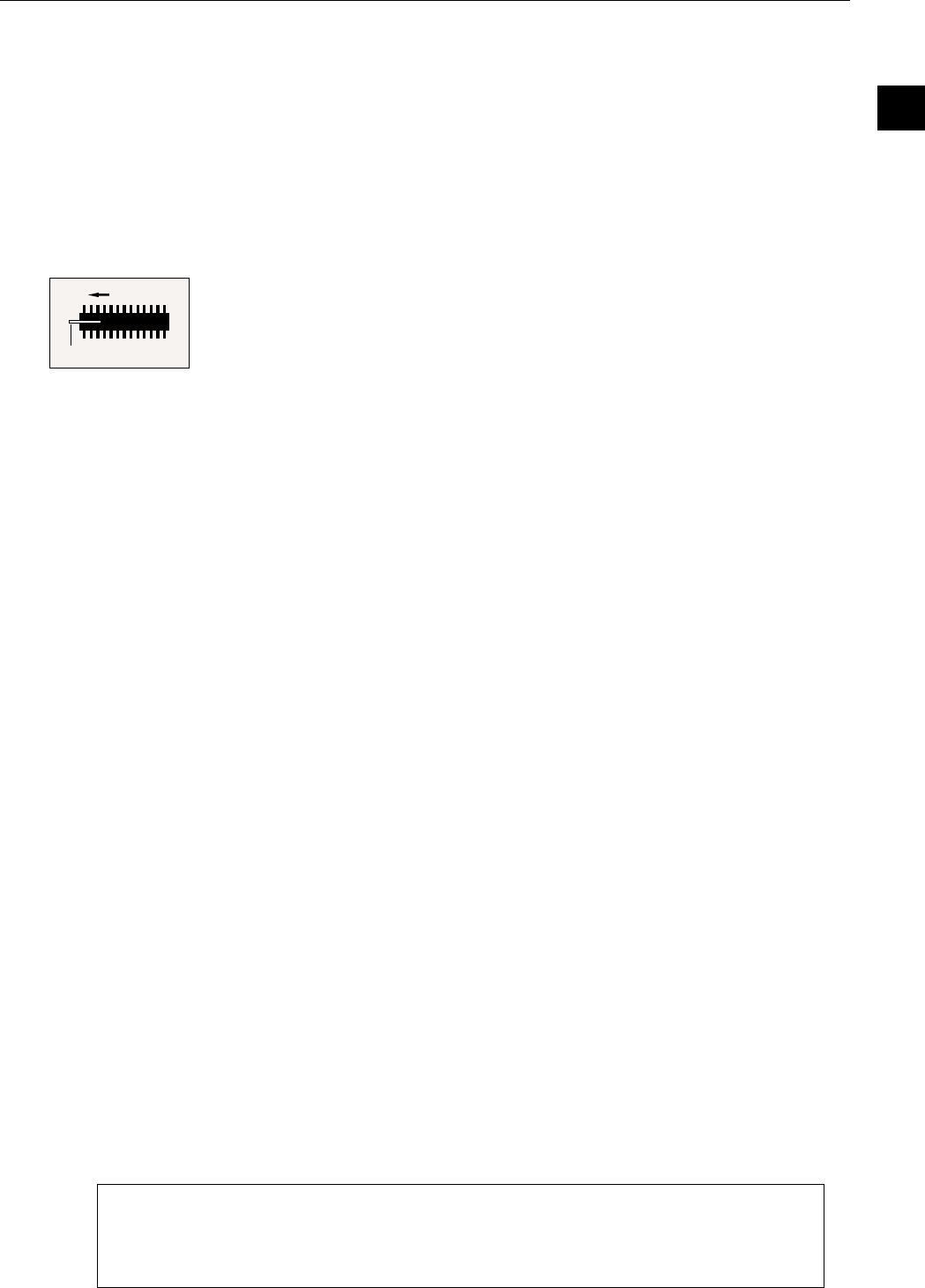

CCD trigger
Feed direction
