9-11
9
Operation Examples (Standard menu: Area measurement by binary conversion)
OPS-MENU RETURN LOCK EVALUATION NUM-CALC OUT-COND
2
4
1
3
[TYPE MEAS COND]
[MEASUREMENT 1]
OPS-MENU RETURN LOCK
[TYPE MEAS COND]
[MEAS COND]
6
MEASUREMENT 1
MEAS-BIN-AREA C1
(MEAS-COND)
OPS-MENU RETURN LOCK EVALUATION NUM-CALC OUT-COND
1
MEAS SELECTION
NO POSI-DEVIATION CHK-DEG-MATCH
INSPECT-LEAD INSPECT-BGA/CSP
MEAS-BIN-AREA CNT-BIN-OBJ LABEL-BIN-OBJ
POINT-MEAS MULTI-POSI MULTI-MATCHES
2SELECT CAMERA CAM1 CAM2
3
CHNG GRAY LEBEL NO YES(00.0TIMES
γ+ γ -
CHNG-L
INCRS-M
)
4
SPACE FILTER
NO NUM-OF-TIMES 0(0~5)
7WINDOW NUM-OF-MASKS(1 2 4) BINARY-IMG-MASK
8REGISTER NO. 00(0~15) NO YES
REGISTER NO.
9
BINARY AREA COND
NUMERIC CALC
00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15
○×××××××××××××××
××××××××××××××××
1
3
1
5
[TYPE MEAS COND]
[MEASUREMENT 1]
1
OBJECT TYPE NO.
00(0~63) NO YES
2SELECT CAMRA CAM1&2 CAM1&NG-IMG
3
IMG PRE-PROCESS
(TO NEXT SUB-MENU)
4
MEASURE 0 CAM1
NO (MEAS-COND) NO
5
MEASURE 0 CAM2
NO (MEAS-COND) NO
6
MEASUREMENT 1
NO
(MEAS-COND)
7
MEASUREMENT 2
NO
(MEAS-COND)
8
MEASUREMENT 3
NO
(MEAS-COND)
9
MEASUREMENT 4
NO
(MEAS-COND)
1
MEAS SELECTION
NO POSI-DEVIATION CHK-DEG-MATCH
INSPECT-LEAD INSPECT-BGA/CSP
MEAS-BIN-AREA CNT-BIN-OBJ LABEL-BIN-OBJ
POINT-MEAS MULTI-POSI MULTI-MATCHES
2SELECT CAMERA CAM1 CAM2
3
CHNG GRAY LEBEL NO YES(00.0TIMES
γ+ γ -
CHNG-L
INCRS-M
)
4
SPACE FILTER
NO NUM-OF-TIMES 0(0~5)
OPS-MENU SAVE LOCK TITLE FINAL-CALC FINAL-OUTPUT I/O SYSTEM
OPS-MENU RETURN LOCK
2

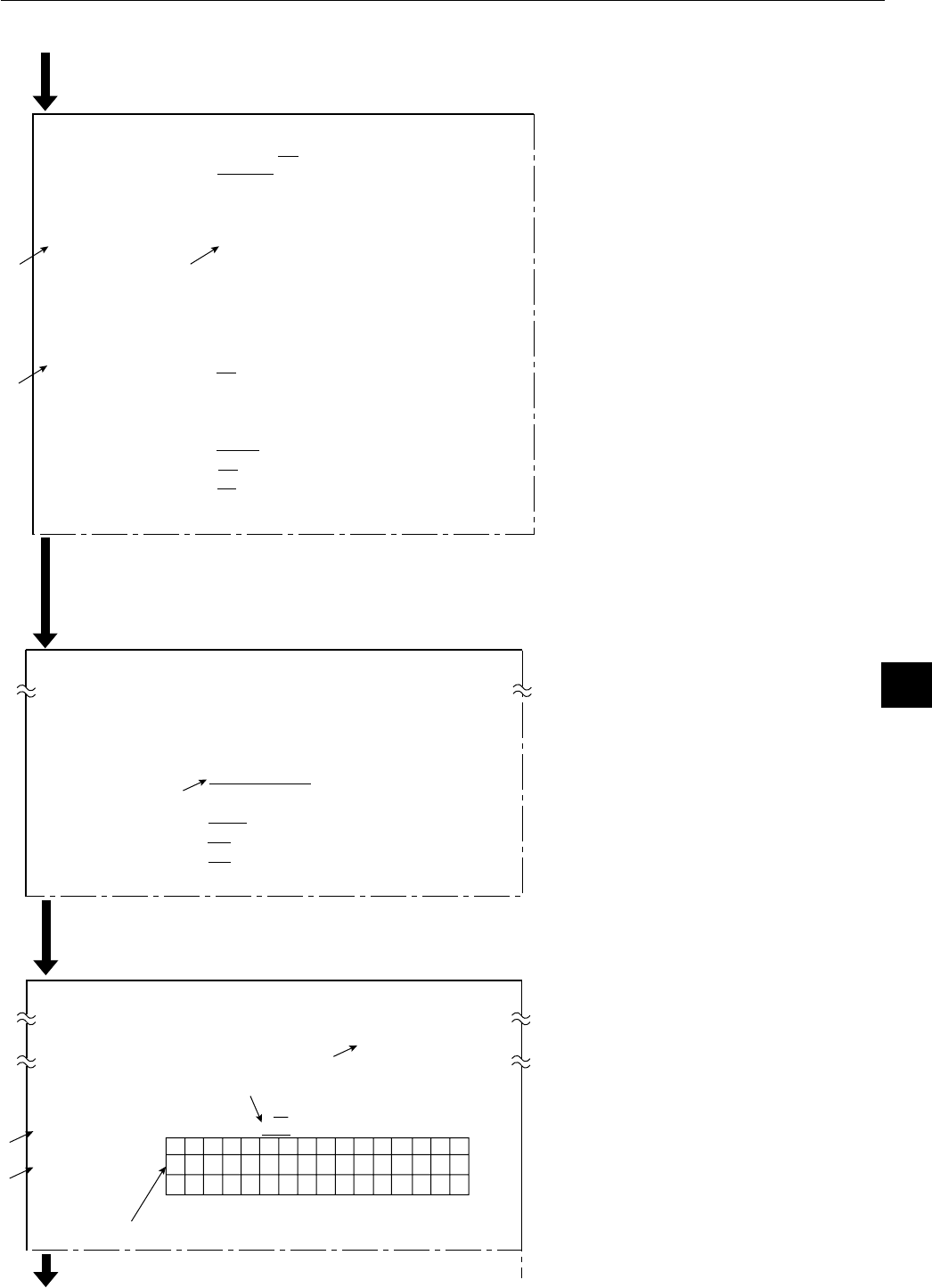

(5) Setting the measurement number ("MEASUREMENT 1" is selected for the IV-S33M)
1. Move the cursor to the "5MEASUREMENT 1" item using the up and down keys, and press the SET key.
2. Move the cursor to "NO" using the left and right keys, and press the SET key.
3. Move the cursor to the "1MEAS SELECTION" item in the lower part of the window using the up and down
keys. Then press the SET key.
(6) Setting the measurement program
1. Move the cursor to the "MEAS-BIN-AREA" item using the left and right keys, and press the SET key.
2. Press the ESC key.
(7) Setting the registration number (00 is selected in this example)
1. Move the cursor to "MEAS-COND" using the
left and right keys, and press the SET key.
2. Move the cursor to the "2REGISTER NO."
item in the lower part of the window using
the up and down keys. Then press the SET
key.
3. Move the cursor to "YES" using the left and
right keys, and press the SET key.
4. Move the cursor to the "3BINARY AREA
COND" item using the up and down keys,
and press the SET key.
5. Move the cursor to the circle below the
registration number 00, and press the SET
key.
To the next page
Continued from the previous page
