4-2
Part Names and Functions
4
Lens mount section
(M 15.5 x 0.5 mm)
Cable connector
2 Camera body
1 Camera head
Cable length: 1 m
Head cable
CCD section
φ17mm
Camera head
installation section

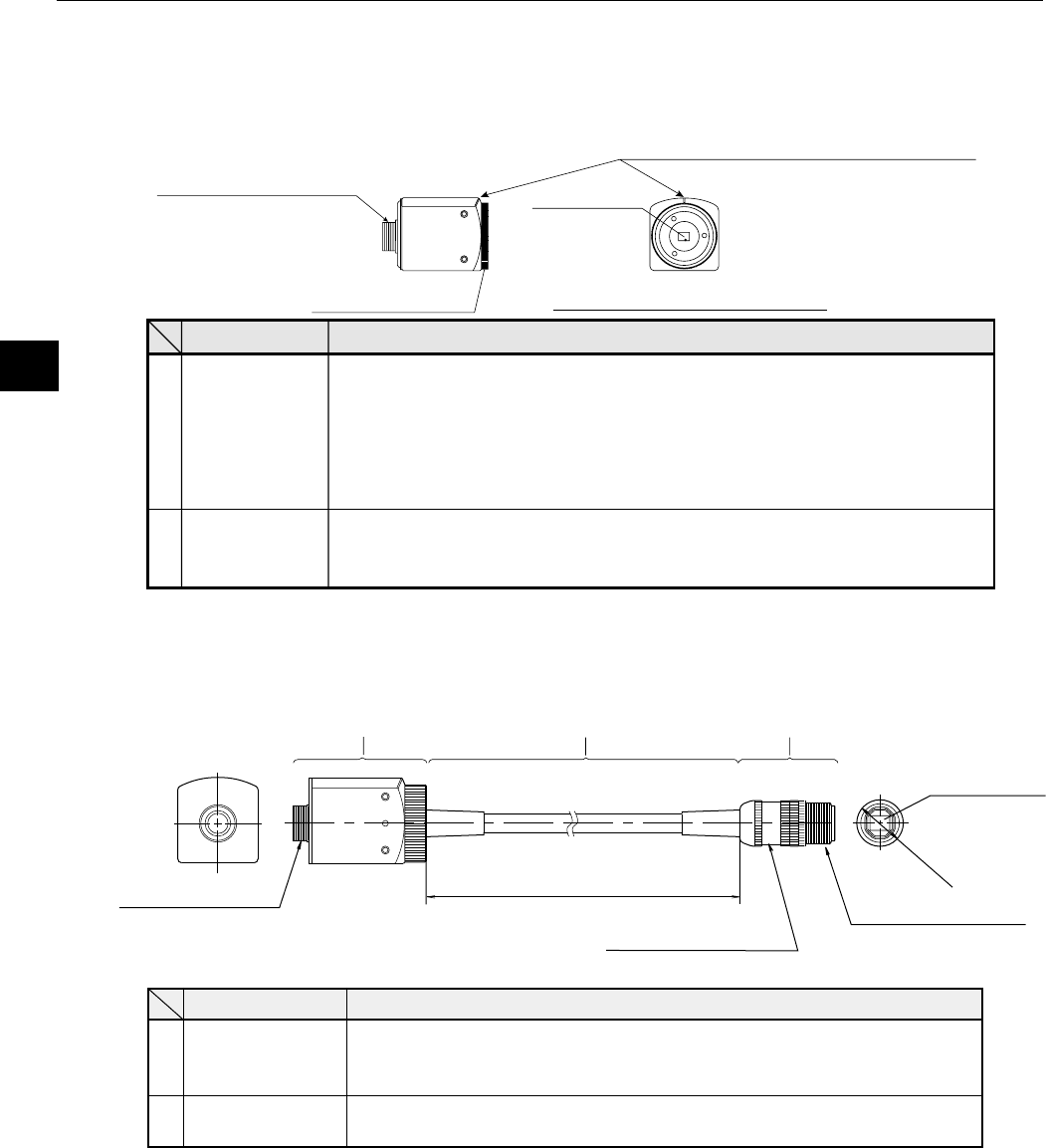

4-2 Camera
[1] Camera
(1) Standard camera (IV-S30C1)
- To connect an IV-S30C1 camera, use the IV-S31M/S32M/S33M controller and camera cable shown
above.
(2) Micro camera (IV-S30C2)
- To connect an IV-S30C2 camera, use the IV-S31M/S32M/S33M controller and camera cable shown
above.
Lens holder
FunctionName
The holder is used to make fine adjustment to the distance (back plane fo-
cus) between the CCD section and camera lens using a focus fixed lens.
(The distance has been adjusted before shipment. Usually, it does not
need to be adjusted.)
- To adjust it, loosen the upper lock screw, and turn the lens holder coun-
ter-clockwise. The maximum allowable distance is 1.5 mm.
Cable
connector
Connect this connector to the camera cable (IV-S30KC3/S30KC5
/S30KC7).
2
1
2 Cable connector
CCD section
1 Lens holder
Front view (view A) of the CCD
Lock screw (for securing the lens holder)
⇒
A
