5-13
5
Connection and Installation Methods

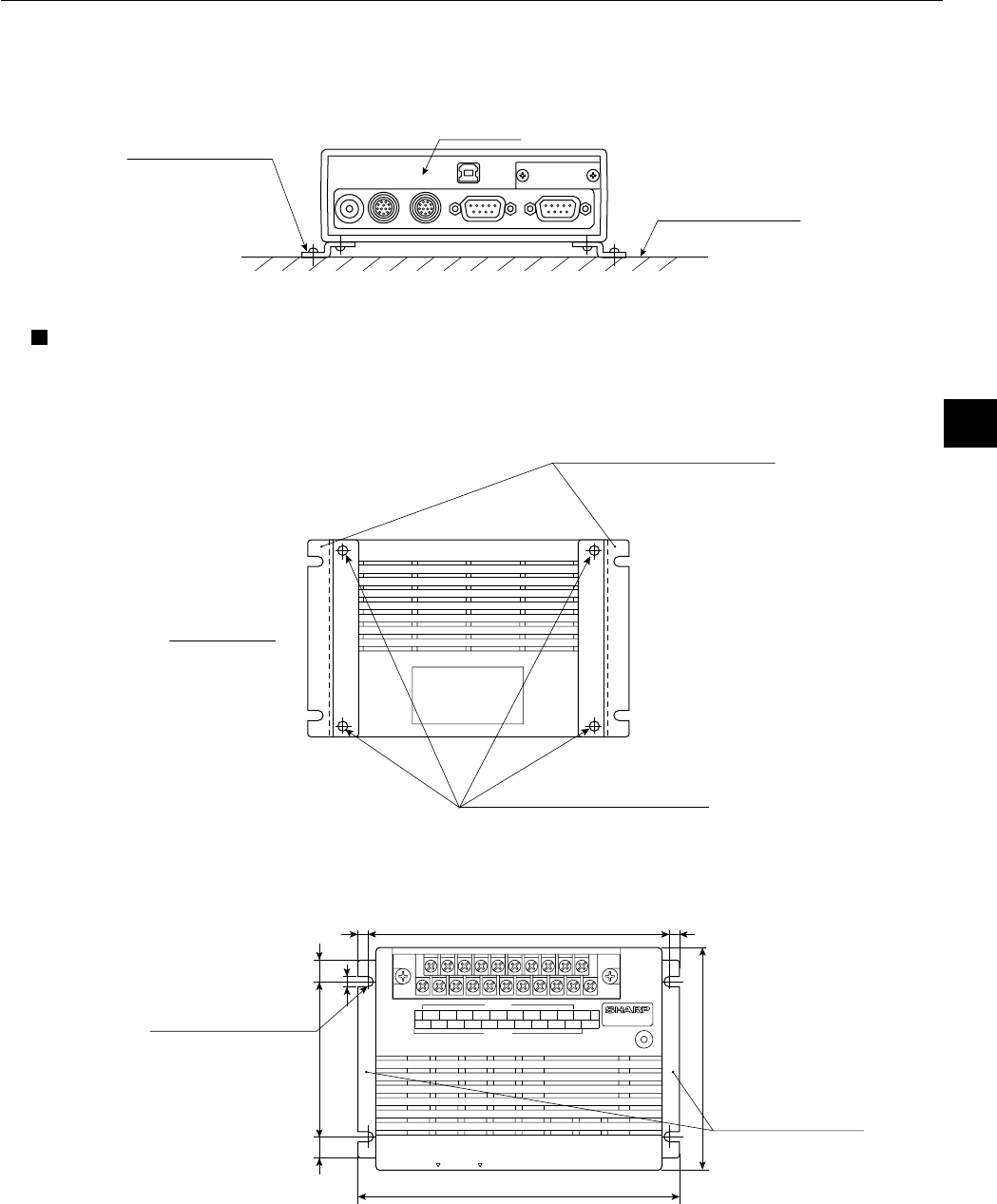

[2] Installation
To install the IV-S31M/S32M/S33M controller, secure the bottom of the housing on the mounting
surface with the two main housing brackets (supplied with the controller.)
Mounting procedure
1 Attach the two housing brackets on the bottom of the controller.
Four screws (M 3 x 6) are supplied to attach the brackets.
2 Secure the housing on the mounting surface with the brackets.
The external dimensions of the housing brackets and the controller are shown on the following page.
Mounting surface
controller
Housing bracket
IV-S3*M
OUTPUT
INPUT
POWER
Y7Y0 Y1 Y2 Y3 Y4 Y5 Y6
COM
COM
+24V
X7X0 X1 X2 X3 X4 X5 X6
READY
0V
VIDEO
CAMERA1
CAMERA2
USB
RS232C/RS422
REMOTE
55
138
148
100
7010.5 10.5
4.5
Housing bracket
(Unit: mm)
Mounting position
(4 places)
Housing bracket (2 pcs.)
Screw position (4 places)
Bottom view
