7-7
Simplified Menu Operation
7

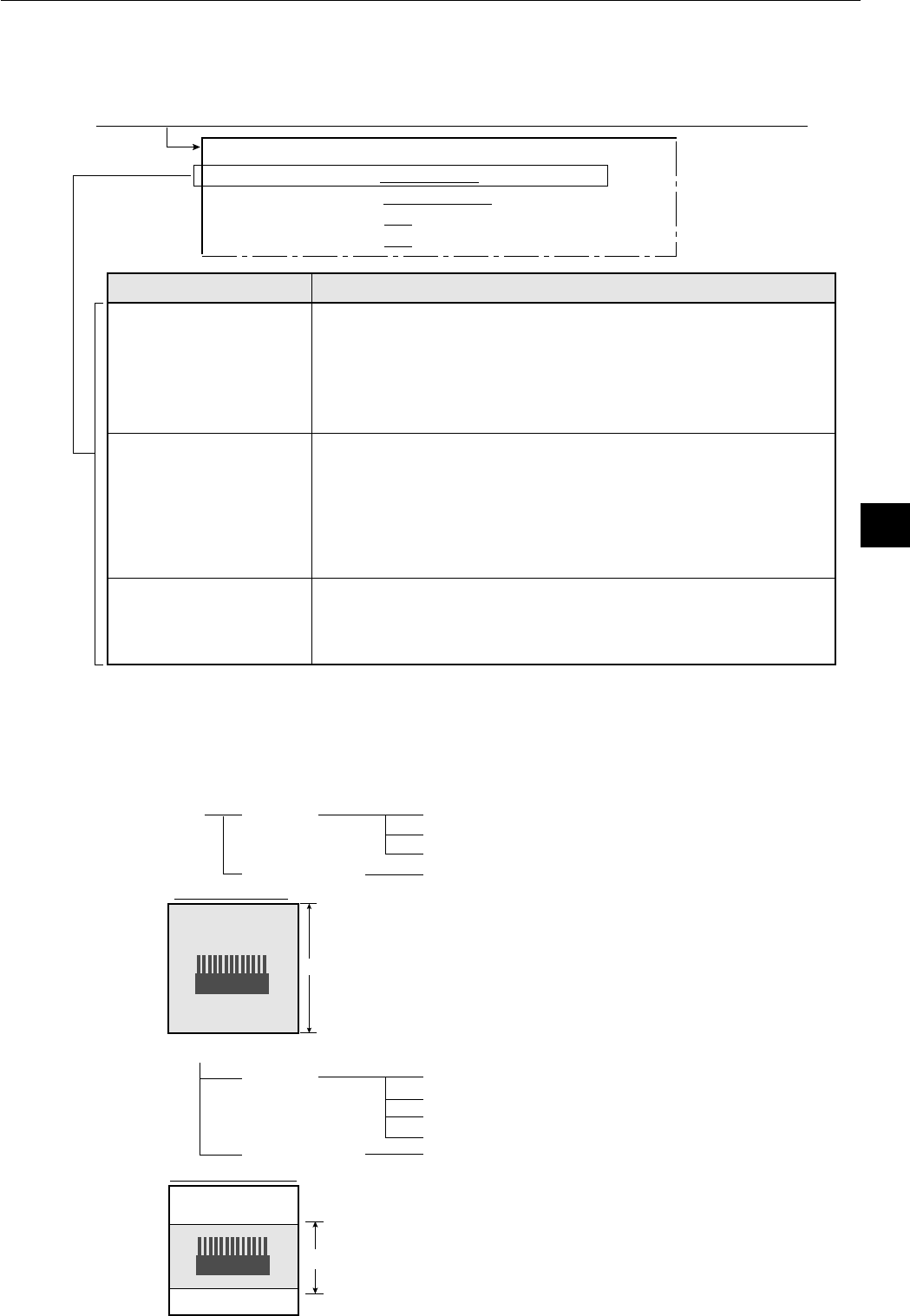

7-5 Setting the operation conditions
[1] Image capture
Specify the range of lines which will be captured during operation.
Ë Ë
Ë Ë
Ë Operation procedure
1. On the [TYPE RUN CND] (shown above), move the cursor to the "1 CAPTURE IMG" item with
the up and down keys, and press the SET key.
2. Move the cursor to "PARTIAL-IMG," "WHOLE-IMG" or "NO" with the left and right keys, and press
the SET key.
Ë Ë
Ë Ë
Ë Example of a comparison of the capture times
On the MAIN OPS MENU, move the cursor to the "OPS-CND" item, and press the SET key.
PARTIAL-IMG
(partial image)
WHOLE-IMG
(whole image)
NO
(no image)
Description
1
CAPTURE AN IMAGE
- No image will be captured during operation. Measurements will
be carried out with an image currently being displayed.
- This mode is only used to carry out measurements on an image
transmitted from a personal computer to the IV-S30.
- An image consisting of only the specified line, required for
inspection or measurement, will be captured.
- The number of lines is determined by the mesurement window
setting.
- The processing time of a partial image is shorter than in the
WHOLE-IMG mode.
[TYPE RUN COND]
1CAPTURE IMG PARTIAL-IMG WHOLE-IMG NO
2
MESSAGE DISPLAY
YES(NUMERIC) YES(NO NUMERIC) NO
3
PATTERN DISPLAY
YES NO
4
SHOW BINARY IMG
YES NO
- A whole image will be captured, irrespective of the window
settings for inspection or measurement.
- This mode is used to monitor portions of an image outside the
window set up for inspection or measurement.
Note: When the IV-S33M is used and "FULL+HALF" is selected
for the image capture mode (see page 7-31), it will
process the whole area in the full mode.
IV-S33M
IV-S31M/S32M
16.7 ms (high-speed camera and full mode)
8.3 ms (high-speed camera and half mode)
33.3 ms (standard camera)
33.3 ms (standard camera)
IV-S33M
IV-S31M/S32M
8.3 ms (high-speed camera and full mode)*
4.2 ms (high-speed camera and half mode)*
12.5 ms (high-speed camera and full + half mode)*
16.6 ms (standard camera)
16.6 ms (standard camera)
Whole image reading
480 lines
(approx. 33 ms)
240 lines
(approx. 8 ms)
Partial image reading
・When "WHOLE-
IMG" is specified
・When "PARTIAL-IMG" is specified: (When 240 scan lines is specified)
* The image capture time may vary with the
position of the partial image. (In the
example shown above, the maximum
variation is 0.4 ms)
- Image capture mode (full/half mode)
-See page 7-31
