7-10
Simplified Menu Operation
7
[4] Binary image display
Select "YES or NO" to display a binary image on the MAIN OPS MENU.
ËË
ËË
Ë Operation procedure
1. On the [TYPE RUN COND], move the cursor to the "4 SHOW BINARY IMG" item with the up
and down keys, and press the SET key.
2. Move the cursor to "YES" or "NO" with the left and right keys, and press the SET key.
ËË
ËË

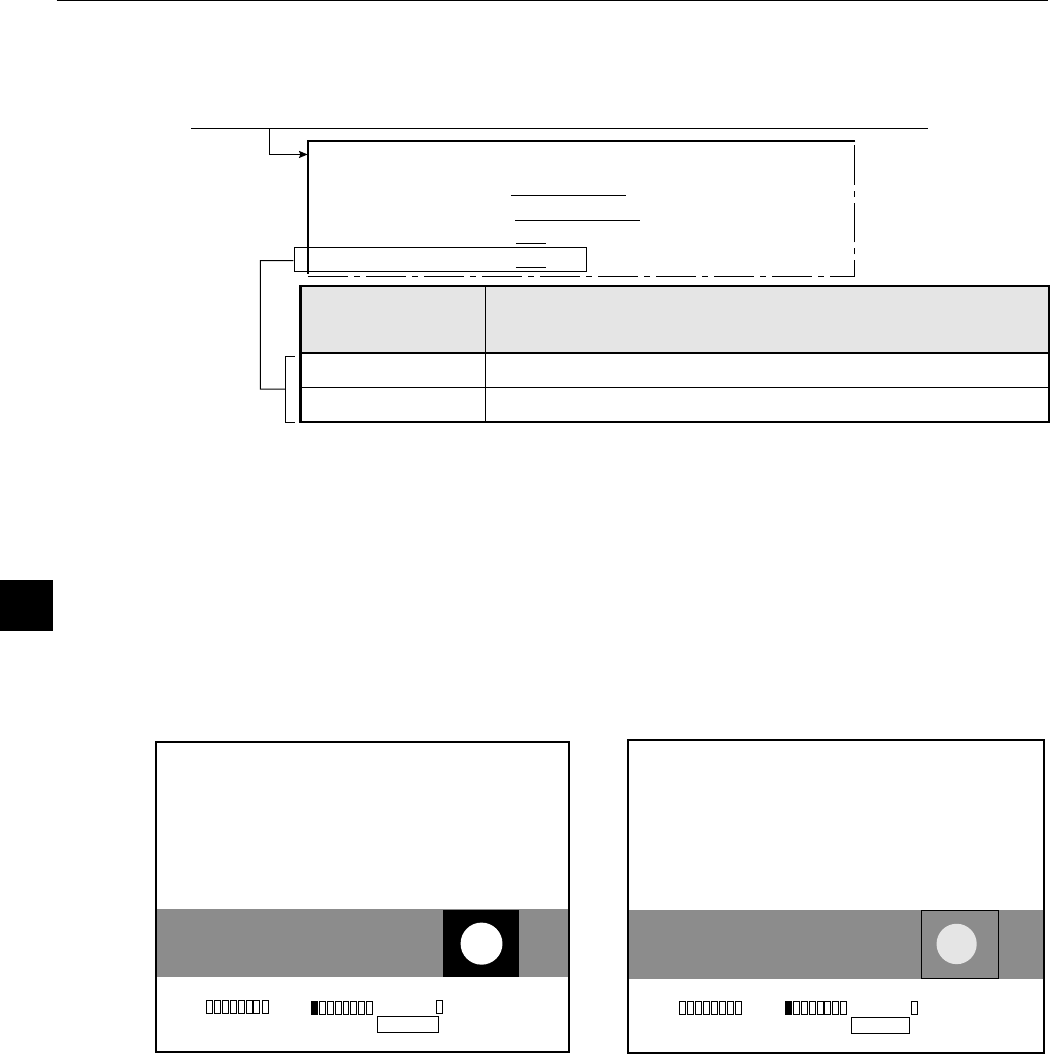

Ë Display examples
On the MAIN OPS MENU, move the cursor to "OPS-CND," and press the SET key.
YES
NO
A binary image will be displayed on the MAIN OPS MENU.
A binary image will not be displayed on the MAIN OPS MENU.
4 SHOW BINARY
Description
The line "4SHOW BINARY IMG" will only be displayed when "3PATTERN
DISPLAY" is set to "YES."
[TYPE RUN COND]
1CAPTURE IMG PARTIAL-IMG WHOLE-IMG NO
2
MESSAGE DISPLAY
YES(NUMERIC) YES(NO NUMERIC) NO
3
PATTERN DISPLAY
YES NO
4
SHOW BINARY IMG
YES NO
- When "show binary image" has been set
to YES
- When "show binary image" has been set
to NO
F.IMG C1 L
VX.XX
(TYPE00)
OK
MEAS XXXXms 2000-08-01 10:30
MEASUREMENT 1 EXISTENCE
CHG-TYPE
EXIST-COND EXIST-EVAL. SEL-CAMERA
OPS-CND
SYS-CND
ADJ-CONTRAST
SAVE
SHUTTER
X0~7 Y0~7
READY
1REG
00 000000
~
245760 A00=018190 OK
2REG
01 000000
~
245760 A01=
3REG
02 000000
~
245760 A02=
4REG
03 000000
~
245760 A03=
5REG
04 000000
~
245760 A04=
6REG
05 000000
~
245760 A05=
7REG
06 000000
~
245760 A06=
8REG
07 000000
~
245760 A07=
F.IMG C1 L
VX.XX
(TYPE00)
OK
MEAS XXXXms 2000-08-01 10:30
MEASUREMENT 1 EXISTENCE
CHG-TYPE
EXIST-COND EXIST-EVAL. SEL-CAMERA
OPS-CND
SYS-CND
ADJ-CONTRAST
SAVE
SHUTTER
X0~7 Y0~7
READY
1REG
00 000000
~
245760 A00=018190 OK
2REG
01 000000
~
245760 A01=
3REG
02 000000
~
245760 A02=
4REG
03 000000
~
245760 A03=
5REG
04 000000
~
245760 A04=
6REG
05 000000
~
245760 A05=
7REG
06 000000
~
245760 A06=
8REG
07 000000
~
245760 A07=
