7-12
Simplified Menu Operation
7
7-7 Setting the shutter speed
- The shutter speed can be set independently for each object type.
- Since the shutter speed can be set continuously in the range of 1/30 to 1/10,000 of a second, very fine
adjustment is possible.
- If you want to measure moving objects and increase the image processing speed, set the shutter speed
to around 1/1000 or 1/2000 seconds. However, if you use a faster shutter speed than you need, very
bright lights will be necessary, and bright lighting is not economical.
- For details about the relationship between the brightness of objects (objects to be measured) and the
shutter speed, see section "5-1 [2] Illumination and shutter speed."
[Example]
ËË
ËË
Ë Setting procedure
1. Move the cursor to the SHUTTER item on the MAIN OPS MENU using the left and right keys, and
press the SET key.
- The shutter speed will be displayed.
2. Press the SET key.
3. Press the SET key again, and move the cursor to the digit you want, using the left and right keys.
1/ 00060
This cursor will move to the left and right.
4. Set the value using the up and down keys.
5. Repeat steps 3 and 4 to set each digit.
6. After setting all of the digits, press the SET key.
7. To complete the setting of the shutter speed, press the ESC key.

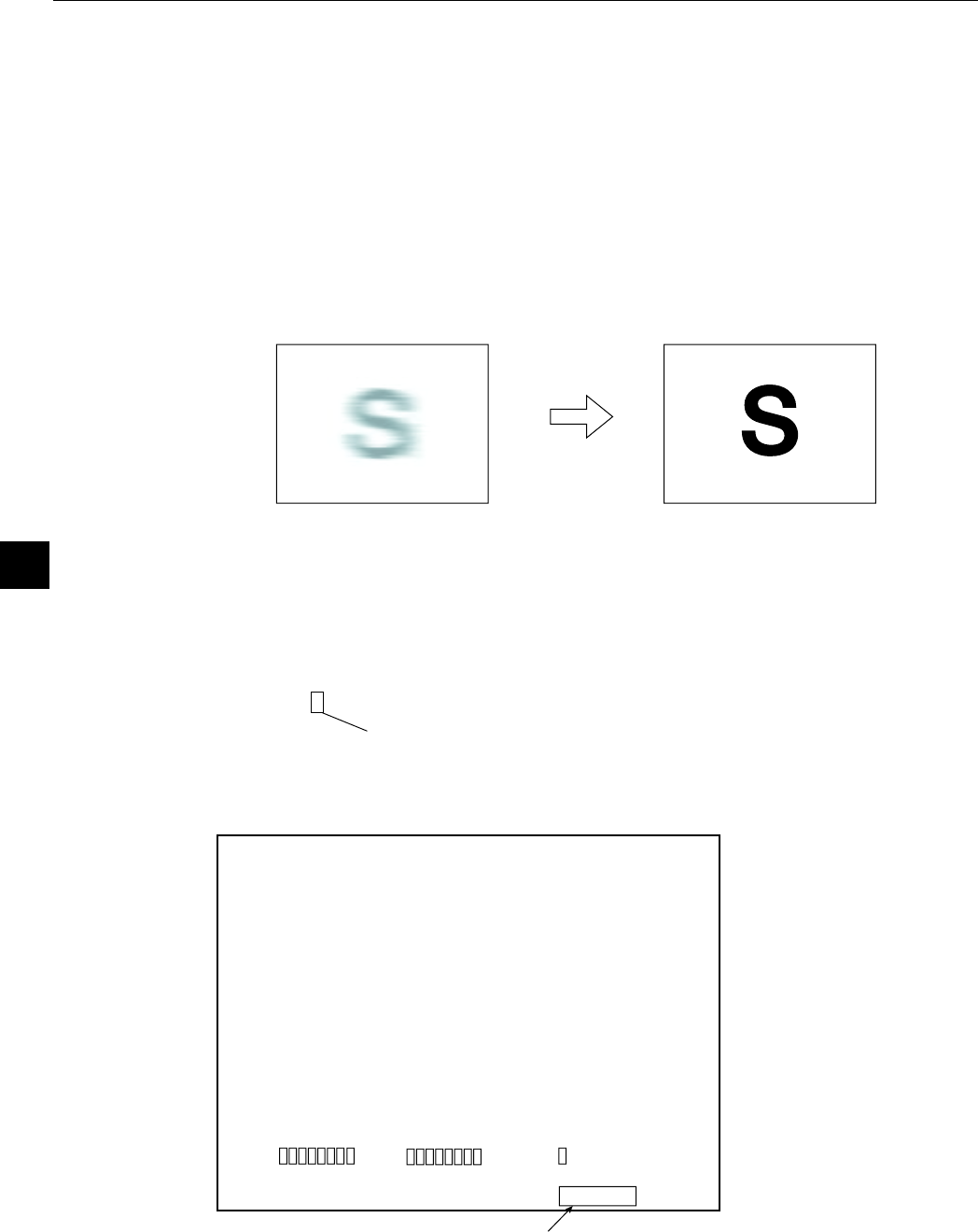

- When the shutter speed is slow
(1/60 of a second)
- When the shutter speed is fast
(1/1000 of a second)
The object is frozen on the screen.The object is blurred across the screen.
F.IMG C1 L
VX.XX
(TYPE00)
MEAS XXXXms 2000-08-01 10:30
MEASURE0 CAM1 POSITIONING
CHG-TYPE
POSI-COND
POSI-EVAL.
OPS-CND
SYS-CND
ADJ-CONTRAST
SAVE
SHUTTER
X0~7 Y0~7 READY
①SHUTTER SPEED 1/00060(1/30~1/10000)
