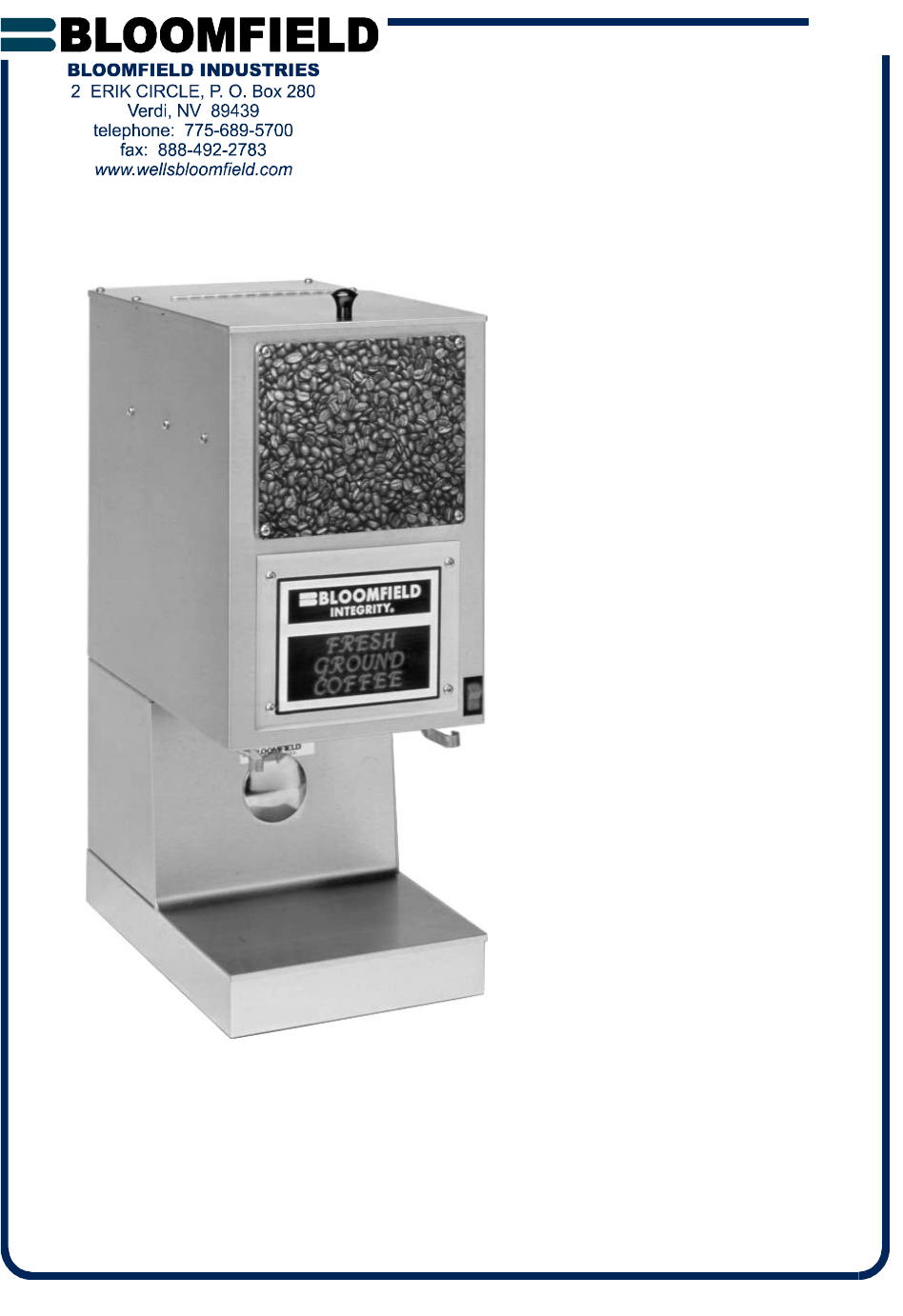

765 OWNERS MANUAL for COFFEE GRINDER MODEL: 8730 Includes: Installation Operation Use & Care Servicing Instructions Model 8730 Coffee Grinder PRINTED IN UNITED STATES OF AMERICA p/n 70385 Rev.
WARRANTY STATEMENT It also does not apply if the serial nameplate has been removed or unauthorized service personnel perform service. The prices charged by Bloomfield Industries for its products are based upon the limitations in this warranty. Seller’s obligation under this warranty is limited to the repair of defects without charge by a Bloomfield Industries Authorized Service Agency or one of its sub-agencies. This service will be provided on customer’s premises for non-portable models.
TABLE OF CONTENTS WARRANTY STATEMENT xi SPECIFICATIONS 1 FEATURES & OPERATING CONTROLS 2 PRECAUTIONS & GENERAL INFORMATION 3 AGENCY LISTING INFORMATION 3 INSTALLATION INSTRUCTIONS 4 OPERATION 6 CLEANING INSTRUCTIONS 7 SERVICING INSTRUCTIONS 8 WIRING DIAGRAMS 9 EXPLODED VIEW & PARTS LIST 10 Thank You for purchasing this Bloomfield Industries appliance.
FEATURES AND OPERATING CONTROLS Fig.
PRECAUTIONS AND GENERAL INFORMATION WARNING: ELECTRIC SHOCK HAZARD All servicing requiring access to non-insulated components must be performed by qualified service personnel. Do not open any access panels which require the use of tools. Failure to heed this warning can result in electrical shock. WARNING: INJURY HAZARD All installation procedures must be performed by qualified personnel with full knowledge of all applicable electrical codes. Failure could result in property damage and personal injury.
INSTALLATION READ THIS CAREFULLY BEFORE STARTING THE INSTALLATION CAUTION: ELECTRICAL DAMAGE DO NOT plug in or energize this appliance until all Installation Instructions are read and followed. Damage to the grinder may occur if these instructions are not followed. CAUTION: UNSTABLE EQUIPMENT HAZARD It is very important for safety and for proper operation that the grinder is level and stable when standing in its final operating position.
INSTALLATION (continued) INITIAL ADJUSTMENTS The grinder is factory set to deliver the proper amount of ground coffee for a standard 64 oz. brew. The grinder is set to normal fine grind specifications. Both throw weight and grind are adjustable to customer requirements. A. ADJUST THROW WEIGHT The amount of coffee per brew determines the strength of the brewed coffee. The grinder controls the amount of ground coffee delivered by controlling the grind time. The timer has two ranges: .
OPERATION CAUTION: NORMAL OPERATION CUT / PINCH HAZARD Fill the hopper with coffee beans. DO NOT reach into the hopper or discharge chute without first unplugging the unit from electric power. Place the appropriate filter paper in your brewer’s brew chamber. Slide the brew chamber under the grind head on the guide rails. Press the start button. When the grinder stops, remove the brew chamber and proceed with your normal brew sequence.
CLEANING INSTRUCTIONS PROCEDURE: Clean Coffee Grinder CAUTION: PRECAUTIONS: Disconnect grinder from electric power. SHOCK HAZARD Do not submerge or immerse grinder in water. FREQUENCY: Weekly TOOLS: Mild Detergent, Clean Soft Cloth or Sponge Soft Bristle Brush 1. Disconnect grinder from electric power. Empty beans from hopper. Remove any remaining brew chamber from under grind head. 2. Wipe grounds, solids and any remaining beans from the hopper. 3.
SERVICING INSTRUCTIONS ADJUST GRINDER BURRS After replacing grinder burrs, or to compensate for wear from extended use, it may be necessary to adjust the burrs. Empty the hopper and run the grinder until there are no more beans in the burrs. Remove the front access panel. Note the position of the grind adjustment. Turn the adjustment head fully clockwise (fine grind) until it is against the stop. Fig. 5 Adjust Burrs Using a 9/16” box-end wrench to loosen the jam nut.
WIRING DIAGRAM 9
EXPLODED VIEW & PARTS LIST 8730 CABINET AND ASSOCIATED COMPONENTS 10
EXPLODED VIEW & PARTS LIST (continued) 8730 MOTOR & GRINDER COMPONENTS 11
Bloomfield Industries proudly supports CFESA Commercial Food Equipment Service Association Bloomfield Industries, Inc. Division of Carrier Commercial Refrigeration In US and Canada Telephone: 775-689-5700 Fax: 888-492-2783 Fax: 800-356-5142 (for orders only) website: www.wellsbloomfield.
