User's Manual

Remote control and Wi-Fi Repeater Description
Remote control
(U.S. Mode)
UP
UP
LEFT
LEFT
FORWARD
FORWARD
LEFT
TURN
LEFT
TURN
TURN
RIGHT
TURN
RIGHT
RIGHT
RIGHT
BACK
BACK
DOWN
DOWN
Quadcopter Direction
(" " indicates nose direction)
10
Taking off and Landing(Outdoors)
T
aking off
:
Landing：
1) Place Quadcopter (with full power battery) on a flat and open ground, and ensure Tail Indicator faces toward you.
2) Power on the Remote control,Wi-Fi Repeater and Quadcopter in sequence.
3) Be sure the Remote control is set exactly as the figure below.
4) Starting motors: toggle the left joystick to left bottom corner and toggle right joystick to right bottom corner at the mean time to start motors.
5) Push the left joystick slowly, then Quadcopter take off. Please refer AEE Quadcopter User Manual for more details.
Note:The motors can not be started until GPS signal is ready(Tail Indicator(green) remains on) , when the S4 is in GPS mode.
1) Slowly pull the left joystick to lower Quadcopter until it touches the ground(only on a flat and open ground).
2) After landing, pull the left joystick to the lowest position and hold for more than 3 seconds until the motors stop.
3) Power off Quadcopter by sliding the switch to OFF.
4) Remove the battery.
5) Power off Remote control and Wi-Fi Repeater.
Important:
1) Control the flight height under your control during your first flight.
2) Do not toggle the left joystick to left bottom corner and toggle right joystick to right bottom corner during flight ,or it will cause the motors to stop working and
the Quadcopter will drop without control.

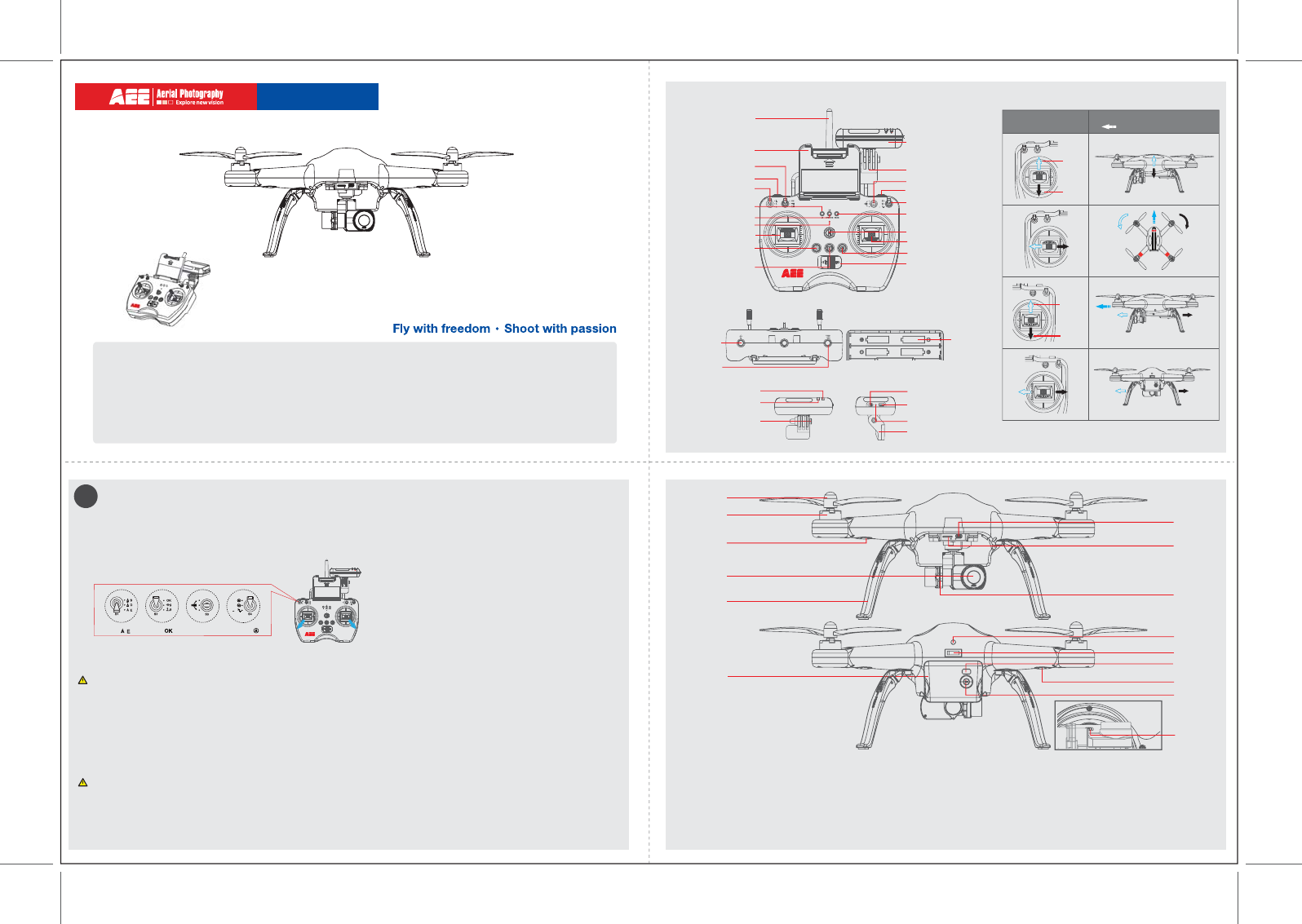

[ 1 ] Propeller [ 2 ] Motor [ 3 ] Front Indicator [ 4 ] Camera
[ 5 ] Landing Gear [ 6 ] Mini USB Port [ 7 ] Micro SD Card Slot [ 8 ] 3-Axial Gimbal
[ 9 ] Quadcopter Battery [ 10 ] Tail Indicator [ 11 ] Power Switch [ 12 ] Rear Indicator
[ 13 ] Battery Level LCD Segment Display [ 14 ] Battery Level Check Button [ 15 ]
4XJUDI
Note: The Remote Control is set to U.S. mode by default.
Power Switch
Charging Port
(mini USB port)
Pairing Button
Repeater Base
Power Indicator
Wi-Fi Indicator
Lock Screw
Disclaimer
Please read this disclaimer carefully before using the product of Quadcopter. This product is not suitable for people under the age of 18. By using this
product, you hereby agree to this disclaimer and signify that you have read them fully. You agree that you are responsible for your own conduct and
content while using this product, and for any consequences there of. You agree to use this product only for purposes that are proper and in accordance
with the terms and any applicable or guidelines AEE may make available.
1. Shenzhen AEE Aviation Technology Co.,Ltd. reserves the right of final interpretation of this disclaimer.
2. Any part of this disclaimer is subject to change without prior notice.
5IJTEJTDMBJNFSJTBWBJMBCMFJONVMUJQMFMBOHVBHFT*ODBTFPGBOZEJTDSFQBODZUIF$IJOFTFWFSTJPOTIBMMQSFWBJM
'PSNPSFEFUBJMFEPSMBUFTUQSPEVDUJOGPSNBUJPOQMFBTFWJTJU6TFS.BOVBMBOEXXXBFFDPN
Battery
Compartment
S3 S4
GPS
NRM
F M
S1 S2
D
S
E















ON OFF
CAM
S3:
Middle
S1: S2:
GPS
S4:
GPS
NRM
F M
S3 S4
GPS
NRM
F M
S1 S2
D
S
E
Antenna
Wi-Fi Repeater
Repeater Base
Gimbal Control Switch S3
Photo Shooting &
Video Recording Indicator
Strap Hole
Right Joystick
Video Stop Button
Remote Control
Power Switch
Smartphone Holder
Remote Control
Power Indicator
Status Indicator
Left Joystick
Airborne
Shutter Button
Airborne Video
Recording Button
Hook Open/Close Button
Hook Open/
Close Button
Buzzer Hole
Return Button
Return Button
Calibration Switch S2
Speed Switch S1
Flight Mode Switch S4
Y08A
