User's Manual

3.2 Pairing camera
The enclosed baby unit has already been registered ,
You do not need to register it again unless the baby unit
loses its link with the parent unit. See section “5.2
Camera Registration” for more details.
3.3 VOX Function
Press VOX key will turn on VOX mode, The VOX mode
automatically puts the display in sleep mode to save battery. It
reactivates automatically, when it detects noise in the baby's
room.
3.4 music player
Press music key will turn on the music player and play
lullaby through the baby unit; press music key again will
turn off it.
3.5 Talk function
Press and hold PTT key on the parent unit to talk to your
baby through the baby unit loudspeaker. The symbol will
be displayed at the bottom of the screen.
3.6 Adjusting the volume
When the video is playing mode, press Volume- key to
decrease volume or Volume+ key to increase volume.
The display will show the current volume for 5 seconds.

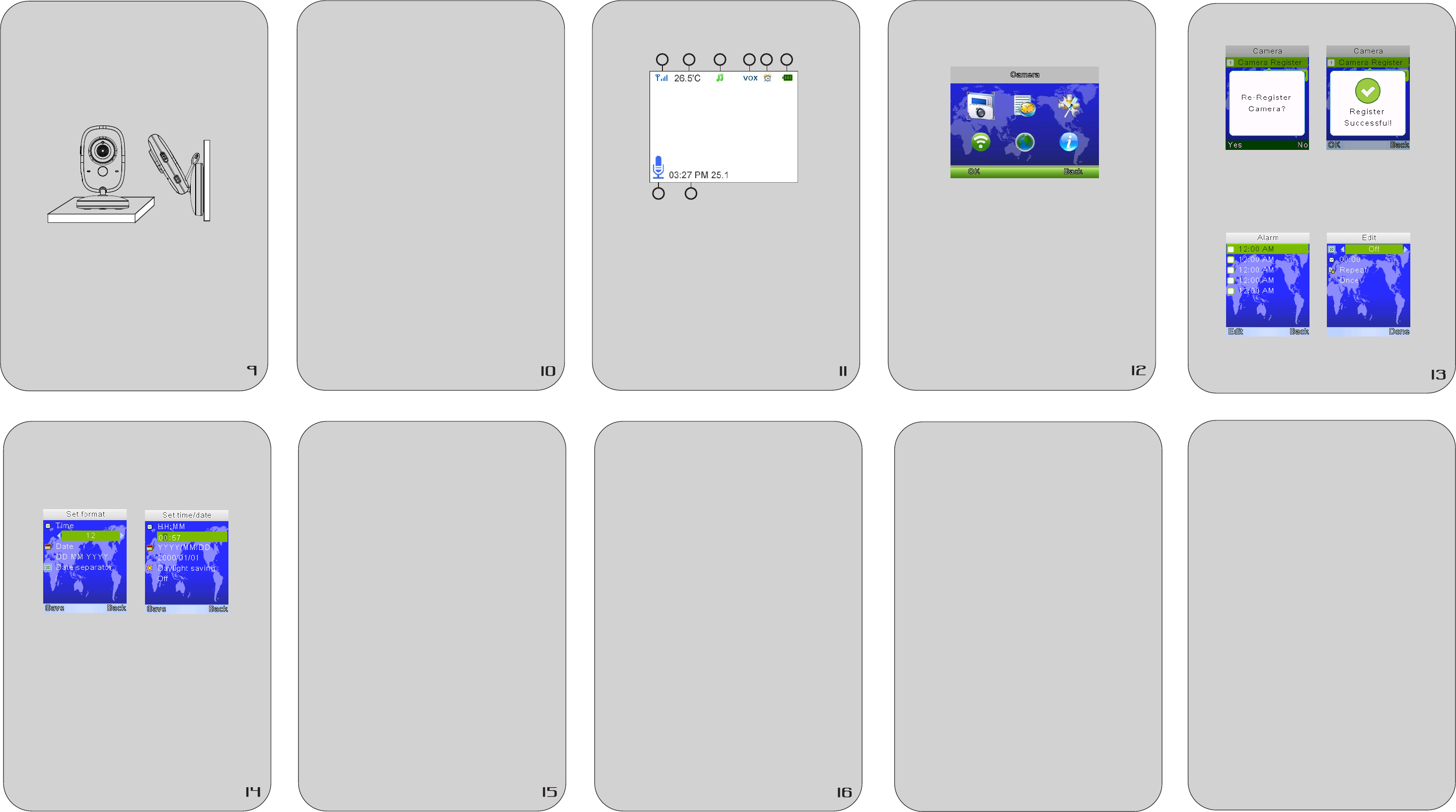

4. Monitoring Screen Icons
1. Signal strength indicator
2. Temperature of the baby's room
3. Lullaby is playing
4. Vox function activated
5. Alarm activated
6. Battery indicator
7. PTT function activated
8. Date and time ( HH:MM AM/PM DD/MM )
5. Menu Options
5.1 Main menu
Press “OK/Menu” key at monitoring screen will enter the
main menu, It contains 6 items :
1. Camera
2. Alarm
3. Settings
4. VOX
5. Languages
6. System info
You can press the “Up” key or “Down” key to move the
cursor to select an item and press “Menu” key will
enter the sub-menu which you selected.
Press “Return” key will back to monitoring screen
5.2 Camera Registration
Press “OK/Menu” key to entry registering screen, then
push the pair key on the back of baby unit within 10
seconds.
5.3 Alarm
Press ”PTT” key to move the cursor and “Up/Down” key
to change value .
5.4 Settings
5.4.1 Time and date
There are contains 2 items in this menu
Set time / date
Set format
Press ”PTT” key to move the cursor and “Up/Down”
key to change value .
5.4.2 Temperature unit
Switch the unit to Celsius or Fahrenheit
5.4.3 Anti-flicker
You are able to adjust the frequency of 50 / 60 HZ to
suit your lighting for anti-flicker
5.4.4 LCD backlight
You are be able to adjust the brightness of the LCD
you are viewing and the LCD backlight active time in
menu operation.
5.5 VOX
5.5.1 System mode
This menu allows you to choose the working mode
from the following: Normal mode / VOX mode
5.5.2 VOX Sensitivity
Switch the Vox sensitivity at Low / Medium / High
level
5.6 Language
Language setting menu allows you to choose your
language from the following :
English
French ( Francais )
Spanish ( Espanol )
Portuguese ( Portugues )
Italian ( Italiano )
German ( Deutsch )
Turkey ( Turkce )
Russian
5.7 System info
There are contains system information such as
Project id,Hardware version, software version ,
build date etc.
6. TECHNICAL FEATURES
- Frequency: 2.4 GHz Digital
- Modulation Mode: GFSK
- Operating temperature: -10 to +45°C
- Operating Humidity: <85%
- Range: 260m in open field
Monitor
- LCD: 3.2 “ TFT LCD
- Resolution: 320X240@20fps
- Battery: Li-Polymer 750mAh
- Dimensions (W x H x D): 120mm x 70mm x 17mm
Camera
- Sensor: 0.3Mega pix CMOS
- Minimum Illumination: 0Lux (IR on)
- Night Vision Distance: 15ft (5m)
- Lighting sensor
- Temperature sensor
- Dimensions (W x H x D): 67mm x 106mm x 67mm
3. Using the Baby Monitor
3.1 Setting up
Place the baby unit in a convenient location (e.g. on a
table) and point the camera lens towards the area you
want to monitor. Adjust the baby unit until you are
satisfied with the image in the parent unit.
NOTE
Do not place the baby unit within baby's reach! If
there is interference on the picture or sound, try
moving the units to different locations, and ensure
they are not close to other electrical equipment.
21 3 4 5 6
7 8
17
FCC Statement
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user's authority
to operate the equipment.
his equipment has been tested and found
to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC
Rules. These limits are designed to
provide reasonable protection against harmful
interference in a residential installation.
This equipment generates uses and can
radiate radio frequency energy and, if not
installed and used in accordance with the
instructions, may cause harmful interference
to radio communications. However, there is
no guarantee that interference will not
occur in a particular installation. If this
equipment does cause harmful interference
to radio or television reception, which can
determined by turning the equipment off and
on, the user is encouraged to try to correct
the interference by one or more of the
18
following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the
equipment and receiver.
-- Connect the equipment into an outlet on
a circuit different from that to which the
receiver is connected.
-- Consult the dealer or an experienced radio
/TV technician for help
This device complies with part 15 of the
FCC rules. Operation is subject to the
following two conditions (1)this device may
not cause harmful interference, and
(2) this device must accept any interference
received, including interference that may
cause undesired operation.
