User's Manual

MID User Guide
5
1. Insert card to the right position. Otherwise it will damage the card.
2. Once the card has been locked, it can not be formatted or written.
3. Don’t insert and remove the card repeatedly in a short time. It may cause the card damaged.
4. Suggest using major brands of memory card to avoid any incompatibility.
2.3 Remove and insert memory card and U disk
Please don’t remove the memory card and U disk while you are using the files of it. For
example, when you are viewing files in my photo, my video or my music, you remove the
memory card or U disk directly may cause the memory card and U disk damaged and the device
may exit automatically for protection. Remove memory card please refer to“2.2 How to use
Memory Card”; remove U disk please close all applications or documents which have been
opened from the U disk.
2.4 Storage Space
The device has three storage spaces: internal device storage, U disk and memory card. The internal
device storage named “LocalDisk”; the memory card named “sdcard”; and the external U disk
named “udisk”. The user can use space in the localdisk is probably 1GB. The U disk and memory
card is on its specific capacity, the maximum support to 32GB memory card.
2.5 Power On and Off
1、Power On: When power adaptor is plugged, User can press Power button to enter the Window
Platform.
2、Power Off: User can long press (2 seconds) power button, then system will pop up equipment
selection dialog box. Select shutdown, System will then pop off the confirmation dialog box,
select OK you can shut down. User can long press (8 seconds) power button to shut down the
machine.
3、Hibernate: User can long press (2 seconds) power button, then system will pop up equipment
selection dialog box. Select dormancy, the system will into hibernation. Then press the power
button to boot.
4、Airplane mode: User can long press (2 seconds) power button, then system will pop up
equipment selection dialog box. Select airplane mode, the system will into airplane mode.
2.6 Vibrate
Open vibrate:
Click volume icon on the status bar to adjust the volume to zero to put it on vibrate mode.
Close vibrate:
Make the volume is not zero, and then the vibrate mode closed.
2.7 Interface switching
System interface can switch the screen automatically according to the direction of the device.
Screen time on a two second, the conversion process will become dimmer, the screen switch to
normal after finishing.
2.8 External Network Cable and U Disk

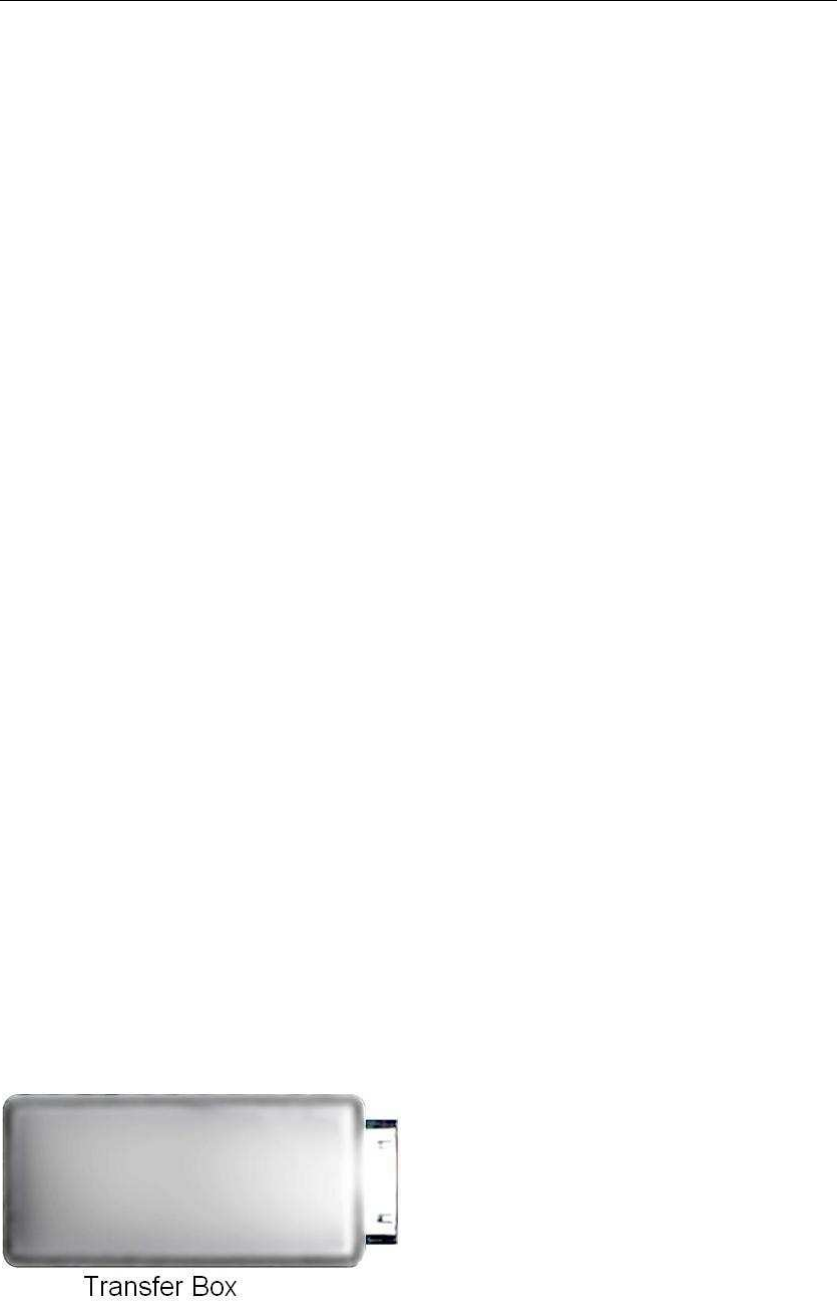

Transfer Box:
If you want to connect Ethernet or USB, you need to connect a transfer box first.
External network cable:
Make the interface of the adapter connect to
the USB interface of the device. There are
two USB interface and an Ethernet interface
on the adapter. You can connect external
network cable and U disk.
