User's Manual

Operation Manual of XBox 2.4GHz RF Game Controller

Brief Introduction

Thank you for purchasing our XBox 2.4GHz Radio Frequency Game Controller. Along with our

highest manufacturing standards and testing throughout its development, we ensure you could get

the best possible product. To make it fully fits your X-Box Console, please review this user’s

instruction manual carefully for operation.

Characteristic

1, Applicable for X-Box Console and various of software the console supported;

2, Support Dual Shock game software;

3, Two Built-in motors make the game more realistic;

4, Special device of low power consumption feature;

5, Macro function and LED indicator;

6, Alarm function for lower voltage;

7, FC function (Short for “Force Connection”) between the appointed controller and the appointed

receiver;

8, Extra connection cable for use instead of batteries;

9, ISM frequency range between 2.4GHz – 2.5GHz

10, Available over 10 meter straightaway range;

11, Available 20 RF controllers playing at the same time within valid range;

12, Normal voltage: 4V – 7V (4 X AA batteries)

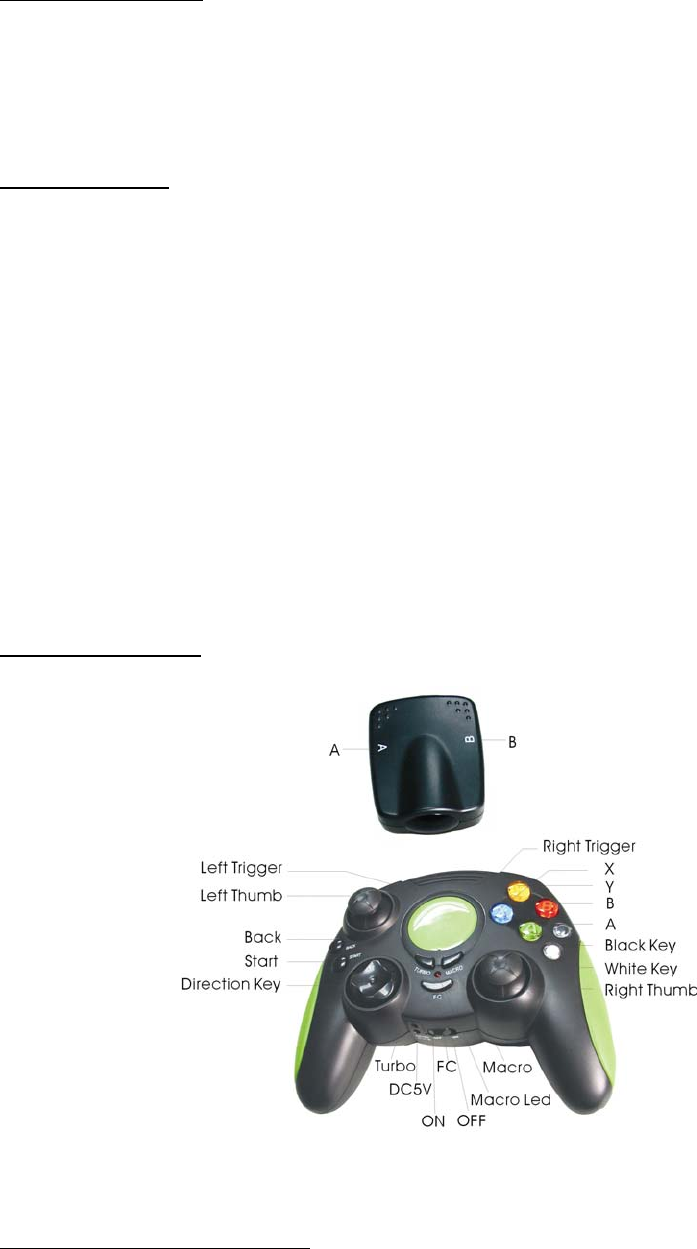

Keystroke Layout

Connection and Installation

1, Insert the receiver to the socket of X-Box Console and turn on the power.

2, Place the 4 X AA batteries inside the controller first, and move the switch to the position of

“ON”, then press “Start” “Left Thumb” “Right Thumb” or “FC”so as to activate the

PAGE 1
Operation Manual of XBox 2.4GHz RF Game Controller Brief Introduction Thank you for purchasing our XBox 2.4GHz Radio Frequency Game Controller. Along with our highest manufacturing standards and testing throughout its development, we ensure you could get the best possible product. To make it fully fits your X-Box Console, please review this user’s instruction manual carefully for operation.
PAGE 2
controller. The Led Indicator on the receiver will be on; 3, You can play by pressing 8-way Directional button and other control buttons. Operation of the Function 1, Low Power Consumption To save the power consumption, there is a special “sleeping mode” built into this controller.
PAGE 3
Trigger” buttons. (Remember that each button can be defined with group function of no more than 15 steps. For examples, pressing “A” once, or pressing “B, X, Left Trigger” buttons at the same time means 1 step. It will be saved automatically and exit after 15 steps. ) d, Press “Macro” key and exit. The Led indicator is off. Thus, “White Key” has the function of “A-X-Y-Left Trigger” group buttons. B, The cancellation of “Macro” function a, Press “Macro” button, the Led indicator is on.
PAGE 4
NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER AUTHORITY TO OPERATE THE EQUIPMENT.
