1



Packingcontents

Whenyouunpacktheproduct,makesurethefollowingitemsareenclosed:

1. MainUnit2.Poweradapter3.SiliconWristband4.Usermanual

Note:Themainunitofthepedometerisputinthechargingboxbeforeshipment.



MainFeatures

● SynchronizationviaBT4.0● Track routine activities ● OLEDscreen



ProductOverview



Tochargethebattery,takeoutthemainunitfromthewristband,thenputitinto

thechargingbox,andconnectittoPCorpoweradapter.



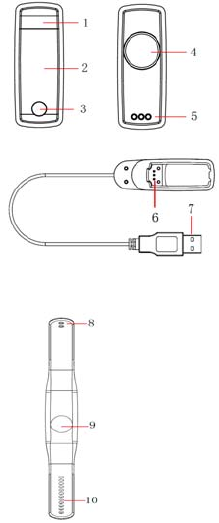

MainUnit

1. Sheetmetalforputting

fingerontotestheartrate

2. OLEDscreen

3. Button,presstoexplore

themenu.

4. Sheetmetalfortouching

skintotestheartrate

5. Contactsforcharging

ChargingBox

6. Contactsforcharging

7. StandardUSBport

Wristband

8. Fixingclasp

9. Slotforholdingtheunit

10. Positioningholes

Summary of content (8 pages)

PAGE 1
Packing contents When you unpack the product, make sure the following items are enclosed: 1. Main Unit 2. Power adapter 3. Silicon Wristband 4. User manual Note: The main unit of the pedometer is put in the charging box before shipment. Main Features ● Synchronization via BT4.0 ● Track routine activities ● OLED screen Product Overview Main Unit 1. Sheet metal for putting finger on to test heart rate OLED screen Button, press to explore the menu.
PAGE 2
Motor actions Low battery 1. 2. When the battery level is less than 10%, the built‐in motor will vibrate, stop and vibrate again respectively for 1 seconds , warning user to charge the battery as soon as possible; When the battery level is less than 5%, the motor will keep vibrating for 3 seconds before the device is powered off.
PAGE 3
y AndroidTM 4.3 or later with bluetooth 4.0. 2. Download and install software On your iOS device (iPhone, iPad), download and install the NextOne app from the App StoreSM; on your Android device, download the NextOne app from the Google PlayTM Store. Getting Started When you use the device and run the app NextOne for the first time, you shall have to set up your personal Profile and Goal first. 1. Profile Gender: Female/ Male; Work Type: Mild/ Medium/ Heavy.
PAGE 4
on these data. Using the Device and App Homepage After setting up your profile and goal, you will come to the Homepage: . a. Main Menu: Enter the Main Menu; c b a b. Day view: Switch between Day and d Week view; c. Sync: setup connection between the device and phones or tablets; e d. Share: Share the app data to social networks; e.
PAGE 5
synchronized with that of the app. User can see the data on the Homepage. You need to sync the device with the NextOne app every seven days to avoid data loss. Share User can share the exercise results with friends through social networks, like Facebook, Twitter, MSN etc.. Day/ Week View You can check your exercise data of one day or a week. Main Menu User can go to Main Menu any time if he wants to use other function or change his personal settings. 1.
PAGE 6
c. d. 2. The monitoring lasts for at least 15 seconds before you get the result. Tap the Sync button on your phone or tablet to check the data. Sleep Quality The device can be used to measure and monitor your sleep quality. To monitor your sleep: 1. From the main menu select Sleep Quality 2. Press the start monitoring button on the bottom of the screen 3. After your sleep press the Sync monitoring button on the bottom of the screen. 4.
PAGE 7
charge it actually. FCC Caution. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
PAGE 8
theequipment and receiver. ‐Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.
