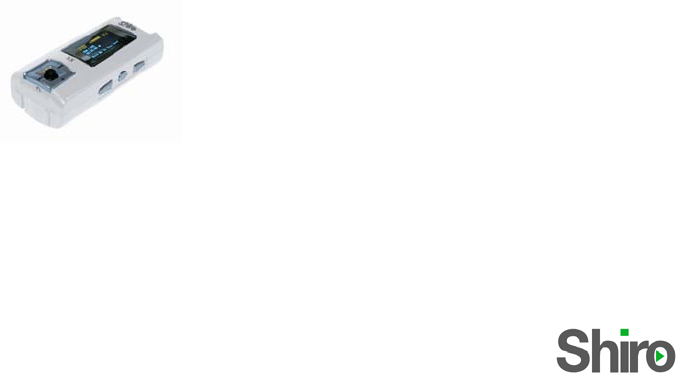

SX MP3 Digital Audio Player (USB 2.0) User Guide Version 1.
Table of Contents Notice Operation Buttons, Packages Includes, Power On & Off Minimum System Requirements, LCD Information Menu Functions Music Operation, Voice Operation, Recording Settings FM Operation Deleting Files, Setting Equalizer, Setting Repeat Mode Setting A-B Clipping, Firmware Upgrade, Connecting Player to Computer, Troubleshooting Guide Technical Specifications 1 2 3 4 5 6 7 8 9 Notice 1. If the player is not used for a long duration, please remove the battery to avoid battery leakage. 2.
Operation Buttons VOLUME + or - FORWARD or REWIND MENU HOLD Button Insert the SD/MMC Card according to the orientation shown Connect the USB cable from here to the Computer USB port Package Includes Installation CD, USB Cable, Earphone, User Guide, AAA Battery, Line-In Cable Power On & Off To power on the player, press Play/Pause. To power off the player, press and hold Play/Pause.
Minimum System Requirements Operating System: Windows 98® /98SE/ME/2000/XP or MacintoshTM OS 10.x Hardware: 20MB of free disk space, 4x CD-ROM or higher, USB port LCD Information Current Mode Current Music/Total Music Loop Mode Equalizer Volume Hold/Locked Battery A-B Clipping Playing Time Singer Detail File Name The loop mode includes Normal, Repeat Track, Repeat All, Shuffle, Shuffle Repeat mode.
Menu Functions 1. Press Menu to go to the mode you need. 2. You can select Music, Voice, FM Tuner, Setting, Delete File, Information, Record, Language Setting (Optional) and Return. 3. You can choose by pressing the Left/Right. To enter, press Menu. 4. Choose Music to enjoy your MP3/WMA/WAV songs. 5. Choose Voice to record voice (press and hold the A-B) or listen to your recorded audio file in WAV format. 6. 7. 8. Choose FM Tuner to enter radio mode. Choose Record to enter recording mode.
Music Operation 1. Press Play/Pause will either play or pause the song. 2. Press Left/Right (FF/REW) to choose next or previous song. 3. Press VOL+ or VOL- to adjust volume. 4. Press and hold the Left/Right (REW/FF) to fast forward or rewind. Voice Operation Check that you have set the Source to Voice under Setting > Record Setting. There are 2 ways to begin recording. 1. Press and hold A-B for about 2 seconds while in Music mode to start recording. Press Play/Pause to stop recording.
2. Press Left/Right to navigate to Rec Setting mode. 3. Press Menu to enter Rec Setting Menu. 4. You can set Source, Encoding Format, Quality of Recording, Storage or Exit Menu. Press Left/Right to navigate across these items. Press Menu to change to different mode. Source item is used to set the recording source. You can select Microphone/FM/Line-In. Encoder item is used to set the format of the recorded file in WAV or MP3 only. Quality item is used to set the quality of recording.
Deleting File 1. From Main Menu, navigate to Delete mode. 2. Choose Music, you will be able to delete files under Music mode. This applies for Voice. 3. If you do not want to delete the current file, you can choose No by using Left/Right. Press Menu. If you want to delete the file, choose Yes option follow by Menu. 4. After file deletion is successful, the player will go back to the Delete mode automatically, you can continue to delete the remaining files. 5. To quit, press and hold Menu.
Setting A-B Clipping 1. While the music or audio file is playing, press A-B once to set the start point A. 2. Press A-B again to start repeating the repeated portion continuously. 3. While repeating A-B portion, you can press A-B or Left/Right exit this mode. Firmware Upgrade 1. Click on Start > Programs > Sigmatel MSCN > Firmware Download. You must ensure the player has been connected to the computer USB port. 2. You may download the firmware file from www.shirocorp.com or Installation CD. 3.
Answer: Please replace the battery then try again. 2. My player can power up but it shows ‘LOCKED’ and powers off. Answer: Press HOLD switch to unlock it. 3. What is the maximum SD/MMC Card size I can use for this MP3 Player? Answer: The maximum SD Card tested is 1GB. For MMC is 512MB. 4. How do I record using Line-In? Answer: Connect the Line-In cable to any audio source. Refer to Recording Setting to setup the record format and quality. Once done, go to Main Menu > Record to start recording.
LIMITATION OF LIABILITY AND DAMAGES.
