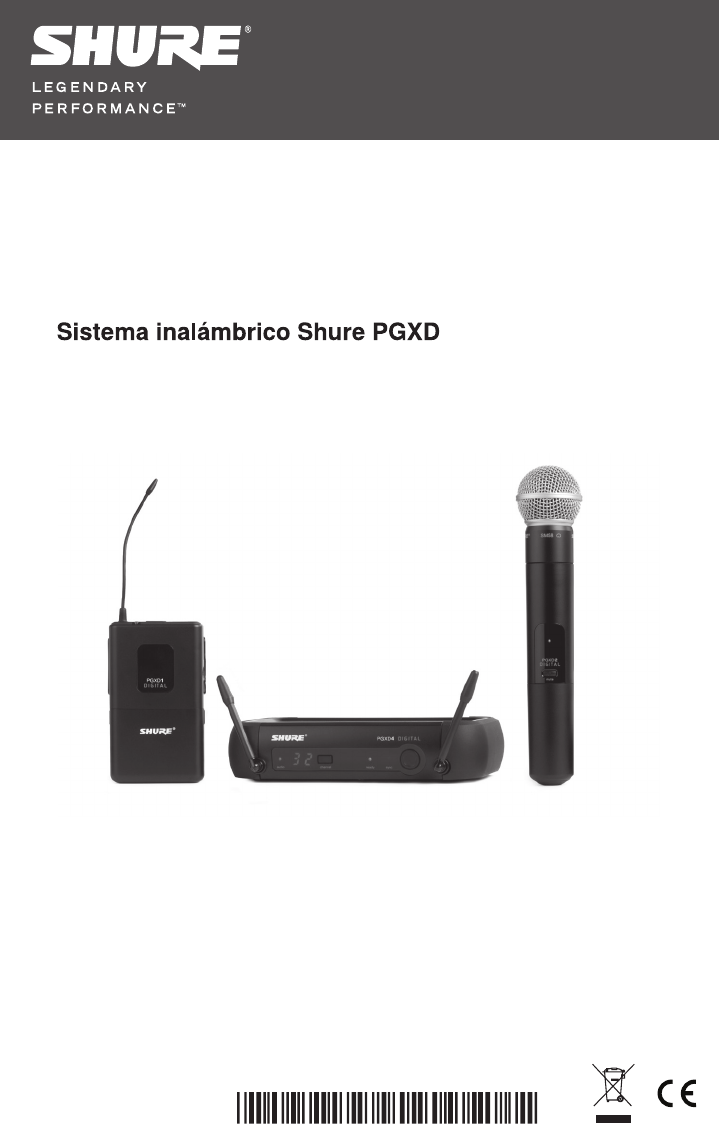

PGXD Wireless System Shure PGXD Wireless PGXD sans fil de Shure Shure PGXD Sem Fio ©2010 Shure Incorporated 27B14513 (Rev. 2) Printed in U.S.A.
D D D D
D D D
D
PGXD System Components PGX Digital Wireless Systems Offering uniquely tailored wireless solutions for vocalists, guitarists, and presenters, PGX-Digital combines the trusted legacy of Shure wired microphones with state-of-the-art, 24-bit digital wireless technology to deliver strong, clean RF performance. The result is wireless audio that sounds like wired, rock-steady RF signal even at extended distances, and plug-and-play setup and operation.
⑧ Adapter cord tie-off ⑩ 6.35 mm (1/4”) instrument level output jack MIC ⑦ AC adapter jack INSTRUMENT ⑨ XLR microphone output jack Transmitter Controls and Connectors PGXD2 ① Indicator LED Displays battery level, mute, and IR transmission status (see table). ② Power / Mute Switch Press to mute or unmute. Press and hold to power on or off. ③ Infrared (IR) port Receives infrared beam to synchronize frequencies. When using multiple systems, only one transmitter IR port should be exposed at a time.
Batteries Wearing the Bodypack Transmitter • A fresh set of alkaline batteries lasts up to 10 hours (9 hours, PGXD2). Clip the transmitter to a belt or slide a guitar strap through the transmitter clip as shown. • The transmitter LED and the receiver ready LED glow red to indicate low battery (typically less than 60 minutes remaining). For best results, slide the transmitter until the belt is pressed against the base of the clip. • NiMH rechargeable batteries may be used.
Single System Setup Synchronize Scan Synchronize the transmitter to the receiver by aligning the infrared (IR) ports and pressing the sync button. Make sure the IR ports are closely aligned. Use the scan feature on the receiver to find a clear channel. After a successful sync, the transmitter LED momentarily flashes red and the receiver ready light illuminates.
Manual Channel and Group Selection (receiver only) Using the receiver to scan for a channel is the best way to find the best frequency for your system. However, for multiple system setup, you may need to manually set the group number. 1. Press and hold the channel button. 2. Hold the button until the channel or group display begins flashing. 3. Release and press the button again to advance the setting. At the desired channel or group number, wait for the flashing to stop. This activates the new setting. 4.
Troubleshooting Issue Indicator Status Solution No sound or faint sound Receiver ready LED on Verify all sound system connections Receiver ready LED off • Turn on transmitter • Make sure the batteries are installed correctly • Perform automatic transmitter setup • Insert fresh batteries Noise bursts or audio dropouts Receiver LED screen off Make sure AC adapter is securely plugged into electrical outlet Transmitter indicator LED flashing red Replace transmitter batteries.
SPECIFICATIONS Working Range (Line of Sight) 60 m (200 ft) Note: Actual range depends on RF signal absorption, reflection and interference. RF Carrier Range X8: 902–928 MHz X8A: 915–928 MHz X8B: 902–907.5 MHz, 915–928 MHz Note: varies by region Audio Frequency Response 20–20000 Hz Note: Dependent on microphone type Total Harmonic Distortion (Ref. 1 kHz, 6 dB below input clip) <0.
CERTIFICATION PGXD1, PGXD2, PGXD4 This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Certified by IC in Canada under RSS-210 and RSS-102. (IC: 616A-PGXD1, 616A-PGXD2, 616A-PGXD4). PGXD1, PGXD2 Certified under FCC Part 15. (FCC ID: DD4PGXD1, DD4PGXD2). PGXD4 Approved under the Declaration of Conformity (DoC) provision of FCC Part 15.
