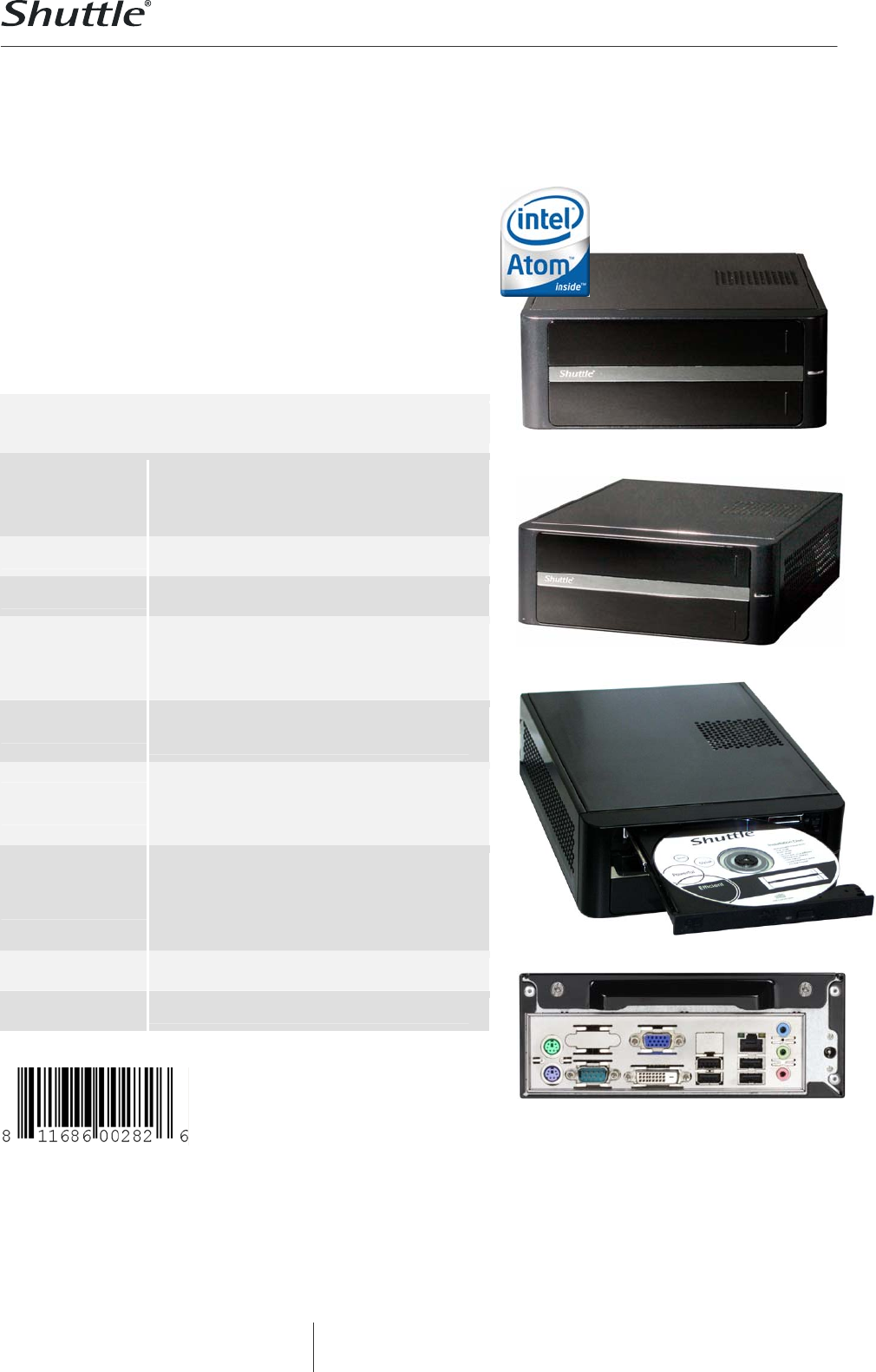

Shuttle Barebone X27D –

Stylish Simplicity

The ultra-compact Shuttle Barebone X27D comes with an

integrated Dual Core Intel Atom processor. Its visual appearance

shines with coated surfaces and mirrored plates. The optical drive

and front panel connectors are elegantly concealed behind drive

doors to provide maximum protection. This tiny tot with barely 7cm

in height and a volume of 3 litres comes up with DVI, support for

DDR2 memory and SATA2 as well as a vast array of interfaces and

connectors. Ideal for use with internet and office applications.

Feature Highlight

X chassis

• Slim X-series chassis, black color

• Dimensions: 25 x 18.5 x 7 cm (L/W/H)

• Bays: 1x 2.5”, 1x for slim optical drive

CPU

• Intel ATOM 330 Dual Core, 2x 1.6GHz

Chipset

• Intel 945GC + ICH7

Graphics

• Integrated GMA950 graphics

• 224MB Shared Memory

• Digital DVI and analog VGA output

Memory

• 1x 240 pin DIMM socket

• Supports max. 2GB DDR2-533/667

Drive

connectors

• 2x SATA II (3 Gbit/s)

• 1x IDE ATA 100

• Preinstalled Serial ATA cables

Other

connectors

• 5.1 HD audio

• USB 2.0 (4x rear, 2x front, 4x onb.))

• Gigabit LAN

• Serial port, PS/2 ports

Power supply

• External 60W fanless power supply

Application

• Basic

Shuttle

-Series Barebone

X 27D

Images for illustration purposes only.

The optical drive is not included.

Summary of content (6 pages)

PAGE 1
Product Specification Shuttle X-Series Barebone Shuttle Barebone X27D – Stylish Simplicity X 27D The ultra-compact Shuttle Barebone X27D comes with an integrated Dual Core Intel Atom processor. Its visual appearance shines with coated surfaces and mirrored plates. The optical drive and front panel connectors are elegantly concealed behind drive doors to provide maximum protection.
PAGE 2
Product Specification Shuttle X-Series Barebone X27D – Special Product Features Built-in Intel® Atom™ Processor The Shuttle Barebone X27D comes with embedded Intel® Atom™ 330 dual core processor which is based on an entirely new x86-design which consumes only a few watts of power, but powerful enough to connect to business, enjoy entertainment and enable a big Internet experience.
PAGE 3
Product Specification Shuttle X-Series Barebone X27D Specifications Storage bays 1x 2,5" (internal) for hard disk 1x for optical drive in slimline format With pre-installed SATA cables Power Supply External 60W power adapter (fanless) Input: 100~240V AC, max. 2A Output: 12V DC, 50/60 Hz, max. 5A Internal DC-DC daughter board Chipset Intel® 945GC+ICH7 Express Chipset Embedded Processor Memory Support Intel ATOM 330 processor (Codename: Diamondville) 2x 1.
PAGE 4
Drive connectors 2x Serial-ATA II, 3 Gb/s (300 MB/s) bandwidth, 1x IDE ATA 100 drives Note: This barebone system comes with pre-installed SATA cables for a 2.5" hard disk and for an optical slim drive. If you want to use an optical drive with IDE connector (PATA) then an additional Slim IDE Adapter with IDE ribbon cable is required, which is not included in the package. Front panel Microphone input Audio Line-out (headphone) 2x USB 2.
PAGE 5
Product Specification Shuttle X-Series Barebone X27D – Connectors Front Panel Back Panel 7 13 8 14 9 19 10 1 1 2 3 4 5 6 7 8 2 3 4 5 6 11 USB 2.0 Microphone input Head phone output USB 2.0 HDD LED Power LED Slim format optical drive (drive not included) Pre-installed SATA cables Power button 9 10 11 12 13 14 15 16 17 18 19 12 15 16 17 18 PS/2 mouse PS/2 keyboard Serial port Digital DVI video output Analog VGA video output Gigabit LAN (RJ45) 4x USB 2.
PAGE 6
Product Specification Shuttle X-Series Barebone X27D – Required components Just add a few components and you will get a fully configured Mini-PC system: DDR2-533/667/800 Memory module max. 2GB 2.5” SATA-hard disk Windows / Linux Operating System Note: This barebone system comes with preinstalled SATA cables for a 2.5" hard disk and for an optical slim drive.
