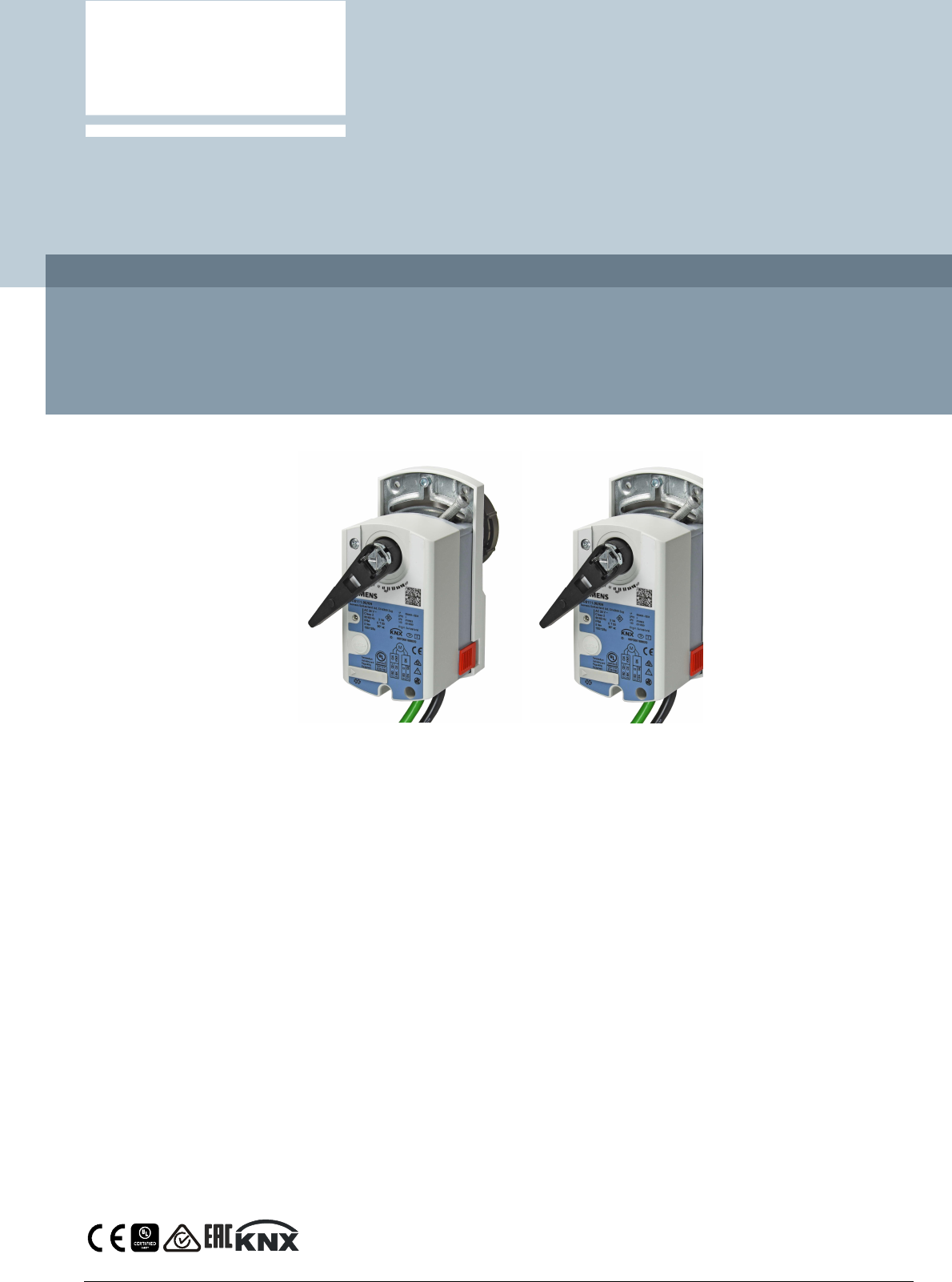

s ACVATIX™ Rotary actuator for ball valves KNX / PL-Link G..B111.9E/KN Rotary actuator 5 / 10 Nm with KNX communication for 6-port control ball valves and ball valves ● ● ● ● ● A6V10725318_en--_k 2019-08-28 GDB111.9E/KN with 5 Nm nominal torque GLB111.9E/KN with 10 Nm nominal torque Operating voltage AC 24 V Supports KNX S-Mode and PL-Link For use with VWG41..
Functions Function Description Communication - KNX-TP, galvanically separated - Max. 256 nodes per line (with repeaters) - Busload 5 mA - Setpoint and actual value for actuator position 0..100% - Operating mode “heating / cooling control” for 6-port control ball valve or operating mode “position control” for 2-/3-port control ball valves - Override control with binary communication objects - Setpoint monitoring and backup mode Functions Type summary Product no. Ordering no. GDB111.
2- and 3-port control ball valves PN40 internally threaded Rp GDB..9E 3 externally threaded G..B kvs [m /h] DN GLB..9E Dpmax Dps Dpmax Dps 350 1400 - - - 350 2-port control ball valves ‒ ‒ VAG61.15.. G1B 1…6.3 15 VAI61.15.. Rp ½“ ‒ ‒ 1…10 15 VAI61.20.. Rp ¾” VAG61.20.. G1¼B 4…10 20 VAI61.25.. Rp 1” VAG61.25.. G1½B 6.3…16 25 VAI61.32.. Rp 1¼” VAG61.32.. G2B 10…25 32 VAI61.40.. Rp 1½” VAG61.40.. G2¼B 16…40 40 VAI61.50.. Rp 2” VAG61.50..
Controllers and room units Product no. Ordering no. Documentation Room thermostat KNX RDG160KN S55770-T297 A6V10629627 Flush-mount room sensor KNX AQR2532NNW with AQR2570NF or AQR2576NF S55720-S136 S55720-S203 S55720-S207 A6V10389050 5WG1227-2AB11 A6V10387579 (N3191) Room control unit UP227/11 (N1411) Software versions G..B111.9E/KN series B are designed for using ETS device profile v2.x. ETS device profile v1.x is supported for backward compatibility reasons.
HMI (Human-Machine Interface) Push-button operation Activity Push-button operation Confirmation Enter / leave addressing mode Press button <1 s LED turns red or gets off Reset to factory settings Press button >20 s LED flashes orange until device restarts PL-Link connection test 1) Press key >2 s and <20 s LED flashes 1x orange 1) Function or part of the function available in PL-Link operation only LED colors and patterns Color Pattern Description Off --- Fault free operation or device no
Commissioning and parameterization The following operating modes are available: ● Heating / cooling control: The actuator uses two separate setpoints for heating and cooling each with a range 0...100%. ● Position control: The actuator is controlled with a 0...100% position setpoint. Operating mode “Heating / cooling control” When using “heating / cooling control” the parameters as listed below are available. Parameter sets for 6-port control ball valves DN 10 and DN 20 can be selected.
Operating mode “Position control” Parameters available in “position control”: Parameter Range Opening direction CW (R) / CCW (L) Opening direction of the actuator Description Factory setting CW (R) Max. position 0…100% Setting for the upper position limit 100% Min.
Notes Safety Caution National safety regulations Failure to comply with national safety regulations may result in personal injury and property damage. ● Observe national provisions and comply with the appropriate safety regulations. Mounting Mounting positions IP54 in the following mounting positions Maintenance The rotary actuators are maintenance-free. Disconnect the electrical connections from the terminals if you want to work at the device.
KNX Group Objects Nr. Name in ETS Object function Flags Data point type KNX Range C R W T U ID DPT_Name Format Unit 1 Fault information Transmit 1 1 0 1 0 219.001 _AlarmInfo 6 Byte --- [0...255 ] = Log Nr. [0...2] = Alarm priority [0...14] = Application area [0...4] = Error class [0...7] = Attributes [0...7] = Alarm status 2 Fault state Transmit 1 1 0 1 0 1.005 _Alarm 1 bit --- 0 = No alarm 1 = Alarm 3 Fault transmission Receive 1 0 1 0 1 1.
Group Objects Description 1 Fault information If group object #3 ”fault transmission” is set to “on”, the following faults can be transmitted if they occur. In that case, group object #2 value changes to “alarm”. Error Group obj. #1 Description Resolution Device jammed XX 00 0A 03 0C 05 Target position can’t be reached due to blockage. Remove blockage (visual inspection required) or invert Opening direction, if it is set wrongly Or switch on adaptive positioning, if mechanical limits are intended.
Technical data Power supply Operating voltage G..B111.9E/KN AC 24 V ± 20% (SELV) or AC 24 V class 2 (US) Frequency Power consumption 50/60 Hz at 50 Hz Actuator holds 1 VA / 0.5 W Actuator rotates 3 VA / 2.5 W Function data Positioning time for nominal rotation angle G..B111.9E/.. Nominal torque GDB.. 5 Nm GLB.. 10 Nm GDB.. < 7 Nm GLB..
Directives and Standards Product standard EN 60730-x Product family standard EN 50491-2, EN 50491-3, EN 50491-5 General requirements for Home and Building Electronic Systems (HBES) and Building Automation and Control Systems (BACS) Electromagnetic compatibility (Application) For residential, commercial and industrial environments EU Conformity (CE) A5W00003842 1) RCM Conformity A5W00003843 1) UL, cUL AC 24 V UL 873 http://ul.
Diagrams Internal diagram / Power supply and communication cables The KNX rotary actuator is supplied with two prewired power supply and communication cables. G..B111.9E/KN Core desig.
