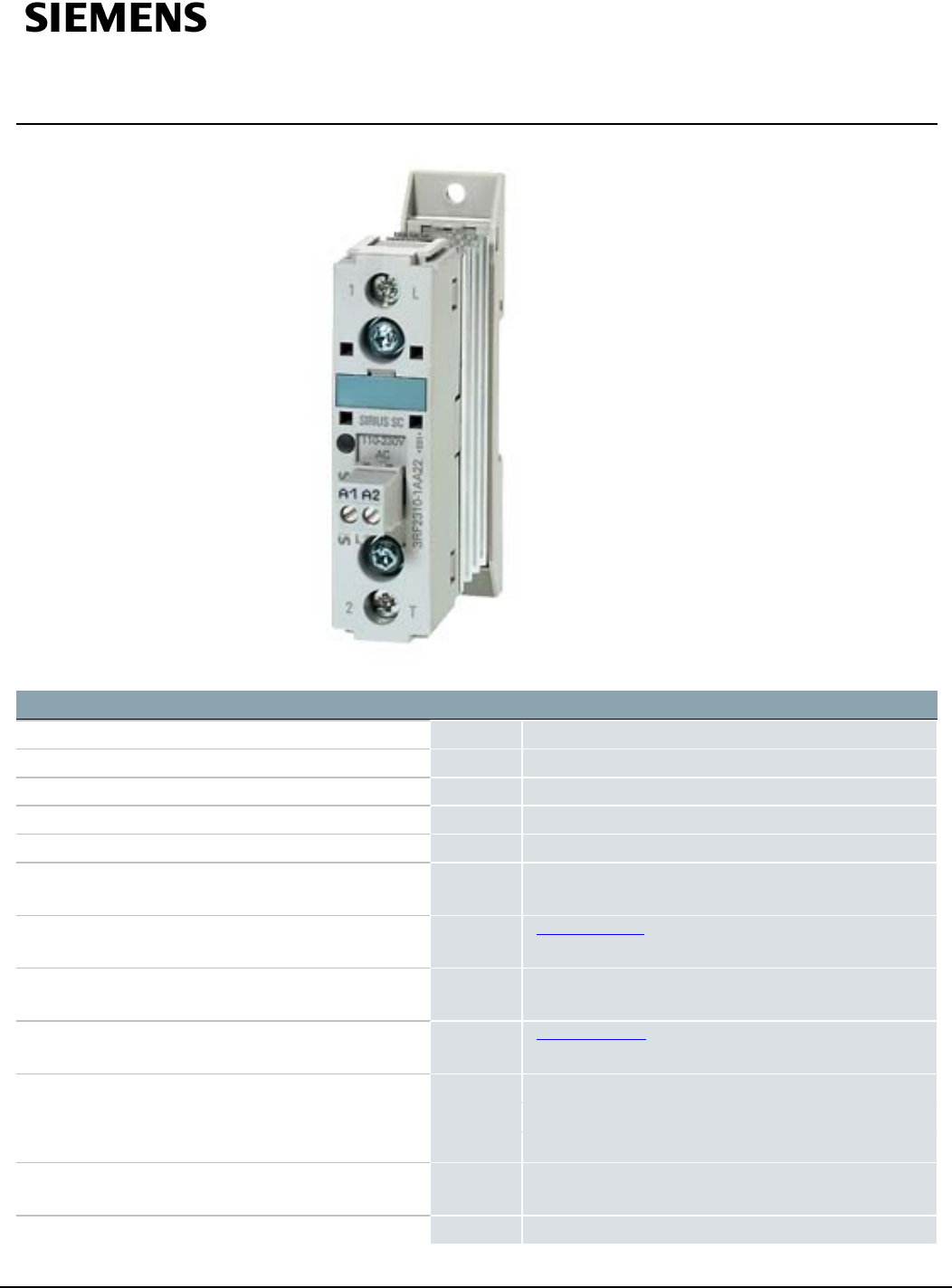

Data sheet 3RF23 10-1AA24

SEMICOND. CONTACTOR 3RF2, 1-PH. AC 51 10 A

40 DEGREES C 48-460 V / 110-230 V AC SCREW

TERMINAL

General technical data:

product brand name SIRIUS

Product designation solid-state contactor

Product function zero-point switching

Number of poles for main current circuit 1

Protection class IP IP20

Product designation _1 of the accessories that can

be ordered

terminal cover

Manufacturer article number _1 of the accessories

that can be ordered

3RF2900-3PA88

Product designation _4 of the accessories that can

be ordered

load monitoring

Manufacturer article number _4 of the accessories

that can be ordered

3RF2920-0GA36

Ambient temperature

● during operation

°C -25...+60

● during storage

°C -55...+80

Installation altitude at height above sea level

maximum

m 1000

Vibration resistance acc. to IEC 60068-2-6 2g

3RF23 10-1AA24 Changes preserved

Page 1/

Summary of content (6 pages)

PAGE 1
Data sheet 3RF23 10-1AA24 SEMICOND. CONTACTOR 3RF2, 1-PH.
PAGE 2
Shock resistance acc. to IEC 60068-2-27 15g / 11 ms Equipment marking acc. to DIN 40719 extended according to IEC 204-2 acc. to IEC 750 K Equipment marking acc. to DIN EN 61346-2 Q Number of NC contacts for auxiliary contacts 0 Number of NO contacts for auxiliary contacts 0 Number of CO contacts for auxiliary contacts 0 Main circuit: Number of NO contacts for main contacts 1 Number of NC contacts for main contacts 0 Operating current ● at AC-1 at 400 V Rated value A 10.
PAGE 3
V 230 — at 50 Hz Full-scale value for signal<0> recognition V 40 — at 60 Hz Full-scale value for signal<0> recognition V 40 Hz 5 mA 2 mA 15 — at 60 Hz Final rated value Control supply voltage ● at AC Symmetrical line frequency tolerance Control current ● at minimum control supply voltage — at AC ● at AC Rated value Installation/ mounting/ dimensions: Mounting type screw and snap-on mounting onto 35 mm standard mounting rail Mounting type Side-by-side mounting Yes Design of the thread of
PAGE 4
● finely stranded — with core end processing 1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1.0 mm²) — without core end processing 1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1.0 mm²) Connectable conductor cross-section ● for main contacts mm² 1.5 ... 6 mm² 1 ... 10 mm² 0.5 ... 2.5 — with core end processing mm² 0.5 ... 2.5 — without core end processing mm² 0.5 ... 2.
PAGE 5
General Product Approval EMC Declaration of Conformity Test Certificates spezielle Prüfbescheinigunge n Test Certificates Typprüfbescheinigu ng/Werkszeugnis other Umweltbestätigung Further information Short-circuit protection, design of the fuse link https://www.automation.siemens.com/cd-static/material/info/3RF23_eng.pdf Information- and Downloadcenter (Catalogs, Brochures,…) http://www.siemens.com/industrial-controls/catalogs Industry Mall (Online ordering system) http://www.siemens.
PAGE 6
22,5 ∅5 5 85 100 90 14 25 48 69 73 ∅5 4 54 77 89 last modified: 3RF23 10-1AA24 Page 6/6 17.07.2015 05.10.
