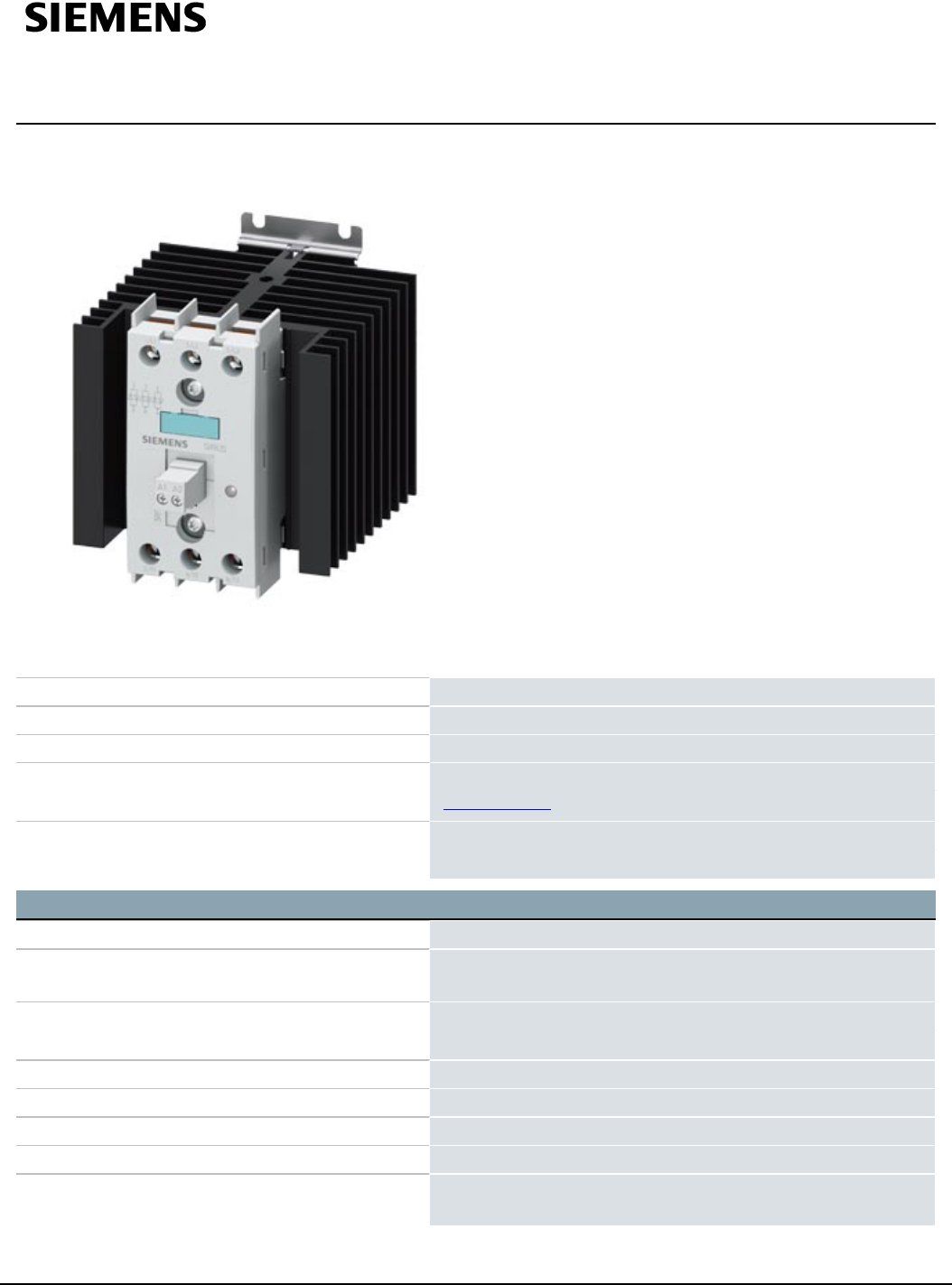

Data sheet 3RF2430-1AC45

Solid-state contactor 3-phase 3RF2 AC 51 / 30 A / 40 °C 48-600 V /

4-30 V DC 3-phase controlled screw terminal Blocking voltage 1200

Product brand name SIRIUS

Product designation solid-state contactor

Product type designation 3RF24

Manufacturer's article number

● _2 / of the accessories that can be ordered

3RF2900-0EA18

Product designation

● _2 / of the accessories that can be ordered

converter

General technical data

Product function zero-point switching

Power loss [W] / for rated value of the current / at AC

/ in hot operating state

91W

Insulation voltage

● rated value

600V

Degree of pollution 3

Protection class IP IP20

Shock resistance / acc. to IEC 60068-2-27 15g / 11 ms

Vibration resistance / acc. to IEC 60068-2-6 2g

Reference code / acc. to DIN 40719 extended

according to IEC 204-2 / acc. to IEC 750

3RF2430-1AC45 Subject to change without notice

Page 1/

Summary of content (7 pages)

PAGE 1
Data sheet 3RF2430-1AC45 Solid-state contactor 3-phase 3RF2 AC 51 / 30 A / 40 °C 48-600 V / 4-30 V DC 3-phase controlled screw terminal Blocking voltage 1200 V Product brand name SIRIUS Product designation solid-state contactor Product type designation 3RF24 Manufacturer's article number ● _2 / of the accessories that can be ordered 3RF2900-0EA18 Product designation ● _2 / of the accessories that can be ordered converter General technical data Product function zero-point switching Power loss [
PAGE 2
Reference code / acc. to DIN EN 81346-2 Q Reference code / acc. to DIN EN 61346-2 Q Main circuit Number of poles / for main current circuit 3 Number of NO contacts / for main contacts 3 Number of NC contacts / for main contacts 0 Operating voltage / at AC ● at 50 Hz / rated value 48 ... 600 V ● at 60 Hz / rated value 48 ... 600 V Operating frequency / rated value 50 ...
PAGE 3
Number of NO contacts / for auxiliary contacts 0 Number of CO contacts / for auxiliary contacts 0 Installation/ mounting/ dimensions Mounting type ● Side-by-side mounting screw fixing Yes Height 100 mm Width 89.5 mm Depth 123.
PAGE 4
Ambient temperature ● during operation -25 ... +60 °C ● during storage -55 ... +80 °C Electromagnetic compatibility Conducted interference ● due to burst / acc. to IEC 61000-4-4 2 kV / 5 kHz behavior criterion 2 ● due to conductor-earth surge / acc. to IEC 61000-4-5 2 kV behavior criterion 2 ● due to conductor-conductor surge / acc. to IEC 61000-4-5 1 kV behavior criterion 2 ● due to high-frequency radiation / acc. to IEC 61000-4-6 140 dBuV in the frequency range 0.15 ...
PAGE 5
89.5 45 123.8 4.5 30 69 5 / L3 47.5 3 / L2 90 95 1 / L1 107.8 15 14.5 A 1 A2 2 / T1 4 / T2 6 / T3 89.3 14.4 111.
