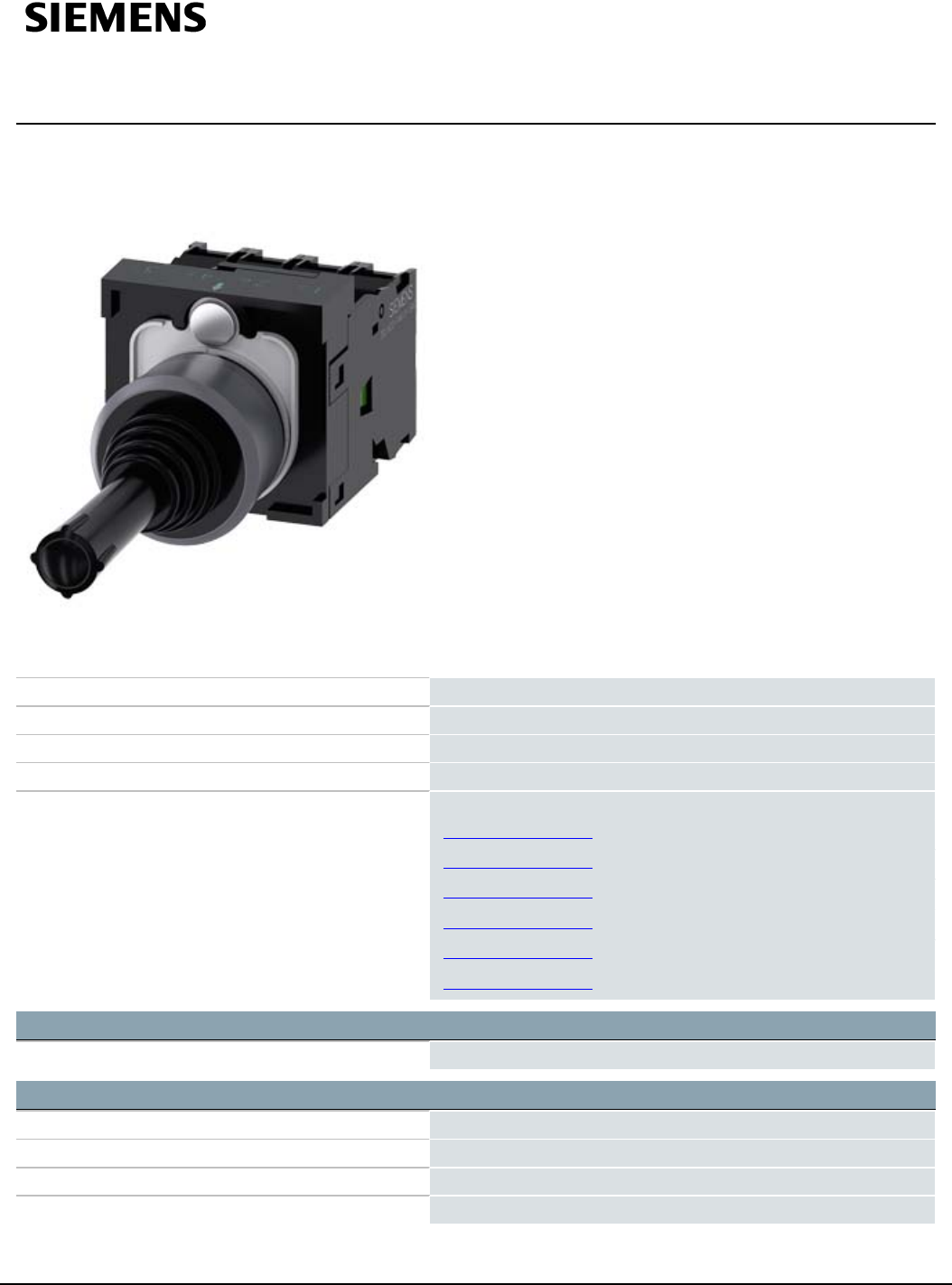

Data sheet 3SU1130-7AE10-1QA0

Coordinate switch, 22 mm, round, plastic with metal front ring, black,

4 switch positions, latching, without mechanical interlocking, in O

position, with holder, 1 NO, 1 NO, 1 NO, 1 NO, screw terminal,

Product brand name SIRIUS ACT

Product designation Coordinate switches

Design of the product Complete unit

Product type designation 3SU1

Manufacturer's article number

● 1 of supplied contact module

3SU1400-1AA10-1BA0

● 2 of supplied contact module

3SU1400-1AA10-1BA0

● 3 of supplied contact module

3SU1400-1AA10-1BA0

● 4 of supplied contact module

3SU1400-1AA10-1BA0

● of the supplied holder

3SU1500-0BA10-0AA0

● of the supplied actuator

3SU1030-7AE10-0AA0

Enclosure

Shape of the enclosure front round

Actuator

Design of the operating mechanism without mechanical interlock

Manner of function of the actuating element latching

Direction of actuation horizontal / vertical

Product extension optional Light source No

3SU1130-7AE10-1QA0 Subject to change without notice

Page 1/

Summary of content (6 pages)

PAGE 1
Data sheet 3SU1130-7AE10-1QA0 Coordinate switch, 22 mm, round, plastic with metal front ring, black, 4 switch positions, latching, without mechanical interlocking, in O position, with holder, 1 NO, 1 NO, 1 NO, 1 NO, screw terminal, Product brand name SIRIUS ACT Product designation Coordinate switches Design of the product Complete unit Product type designation 3SU1 Manufacturer's article number ● 1 of supplied contact module 3SU1400-1AA10-1BA0 ● 2 of supplied contact module 3SU1400-1AA10-1BA0
PAGE 2
Color ● of the actuating element black Material of the actuating element plastic Shape of the actuating element Extended handle Outer diameter of the actuating element 30.
PAGE 3
Continuous current of the DIAZED fuse link gG 10 A Operating voltage ● at AC — at 50 Hz rated value 5 ... 500 V — at 60 Hz rated value 5 ... 500 V ● at DC — rated value 5 ...
PAGE 4
● during operation -25 ... +70 °C ● during storage -40 ... +80 °C Environmental category during operation acc. to IEC 60721 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95 %, no condensation in operation permitted for all devices behind front panel) Installation/ mounting/ dimensions Mounting type front mounting ● of modules and accessories Front plate mounting Height 40 mm Width 40 mm Shape of the installation opening round Mounting diameter 22.
PAGE 5
Cax online generator http://support.automation.siemens.com/WW/CAXorder/default.aspx?lang=en&mlfb=3SU1130-7AE10-1QA0 Service&Support (Manuals, Certificates, Characteristics, FAQs,...) https://support.industry.siemens.com/cs/ww/en/ps/3SU1130-7AE10-1QA0 Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...) http://www.automation.siemens.com/bilddb/cax_de.aspx?mlfb=3SU1130-7AE10-1QA0&lang=en 125 71.
PAGE 6
.3 NO .3 NO .4 NO .3 NO .4 NO .4 NO .3 NO .
