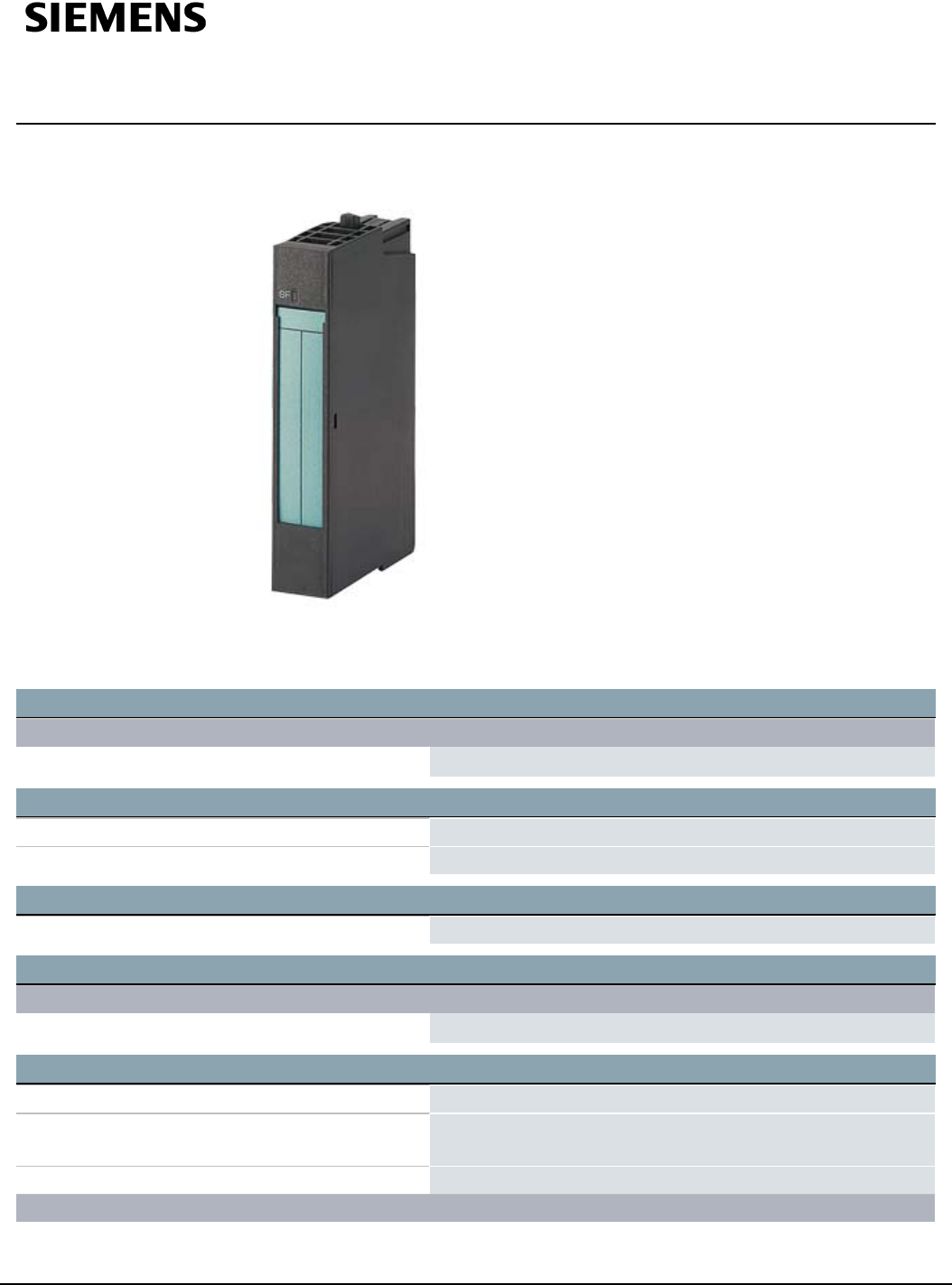

Data sheet 6AG1134-4GB11-2AB0

SIPLUS ET 200S EM 2AI I-4DMU -25...+60°C based on 6ES7134-

4GB11-0AB0

Supply voltage

Load voltage L+

● Rated value (DC)

24V; From power module

Input current

from load voltage L+ (without load), max. 30mA

from backplane bus 3.3 V DC, max. 10mA

Power loss

Power loss, typ. 0.6W

Address area

Address space per module

● Address space per module, max.

4byte

Analog inputs

Number of analog inputs 2

permissible input current for current input (destruction

limit), max.

40mA

Cycle time (all channels) max. Number of active channels per module x basic conversion time

Input ranges (rated values), currents

6AG1134-4GB11-2AB0 Subject to change without notice

Page 1/
