Data sheet 6AG1134-6FF00-2AA1

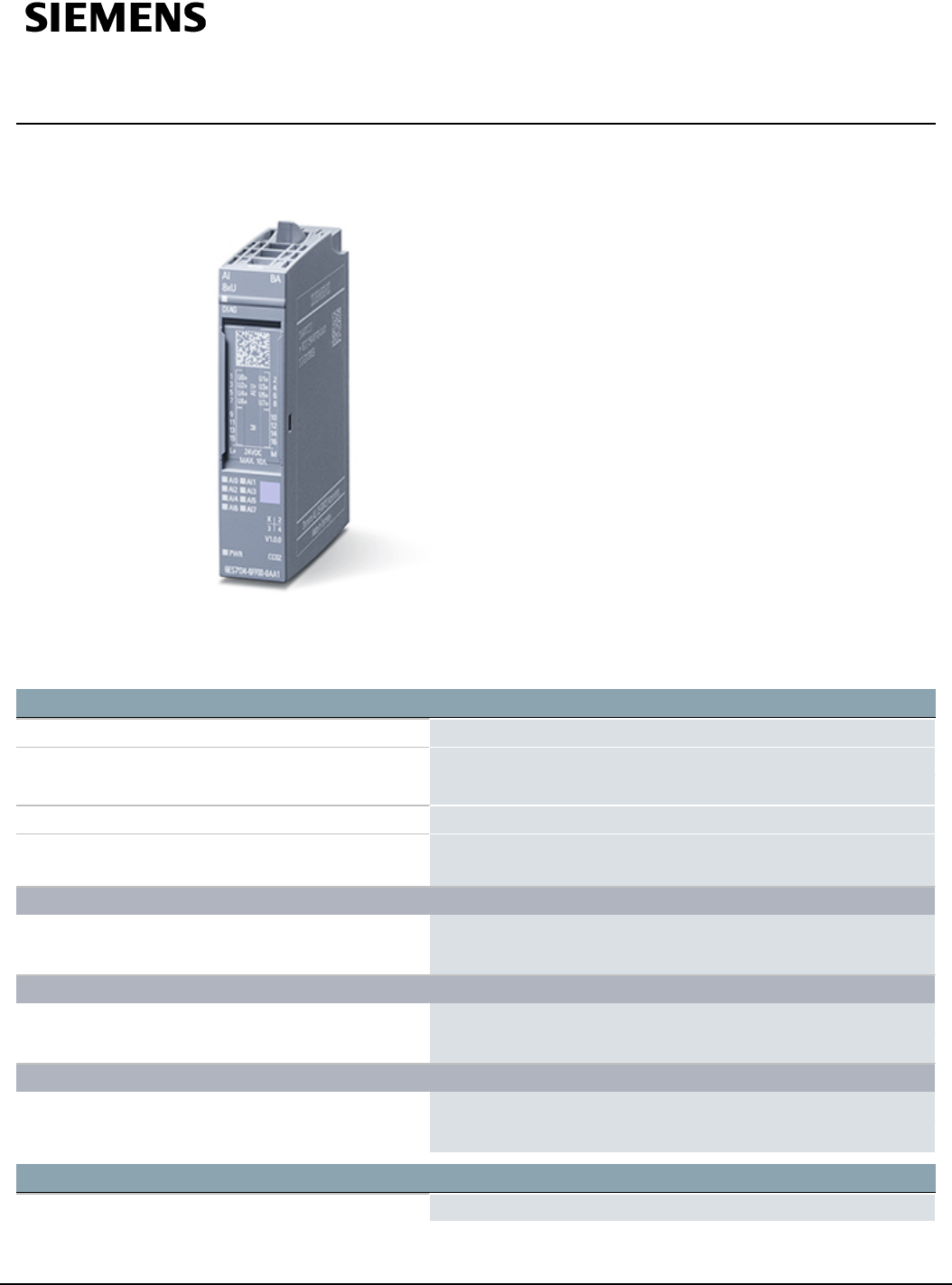

SIPLUS ET 200SP AI 8xU BASIC -40 ... +60°C with conformal

coating based on 6ES7134-6FF00-0AA1 . AI 8XU Basic, suitable for

BU type A0, A1, Color code CC02, Module diagnostics, 16 bit

General information

Product type designation AI 8xU BA

Firmware version

● FW update possible

Yes

usable BaseUnits BU type A0, A1

Color code for module-specific color identification

plate

CC02

Product function

● I&M data

Yes; I&M0 to I&M3

● Measuring range scalable

Engineering with

● PROFIBUS as of GSD version/GSD revision

GSD Revision 5

● PROFINET as of GSD version/GSD revision

GSDML V2.3

Operating mode

● Oversampling

● MSI

CiR – Configuration in RUN

Reparameterization possible in RUN Yes

6AG1134-6FF00-2AA1 Subject to change without notice

Page 1/
