Data sheet 6AG1134-6JF00-2CA1

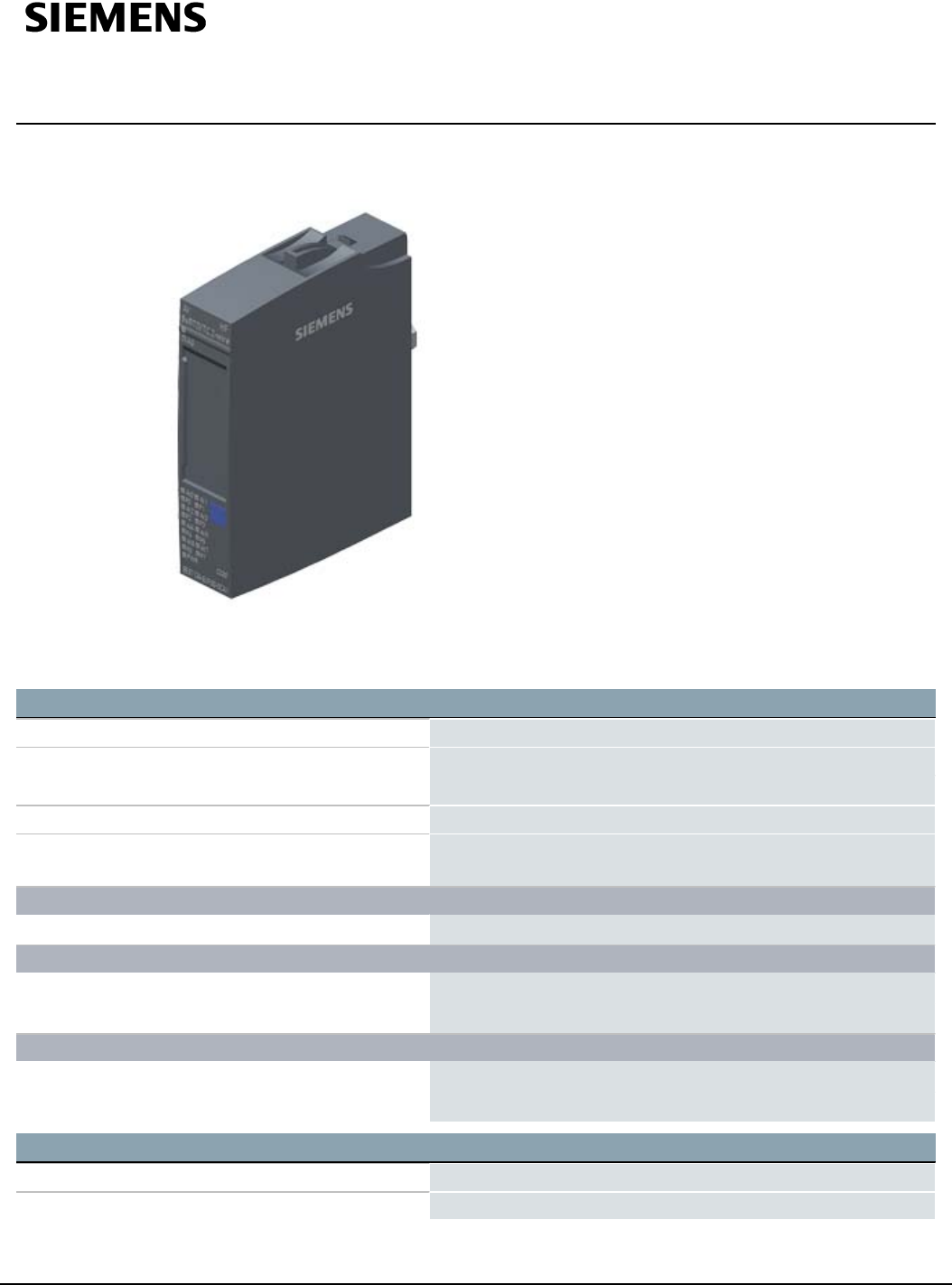

SIPLUS ET 200SP AI 8xRTD/TC 2-wire -40...+60°C start up 25 °C

with conformal coating based on 6ES7134-6JF00-0CA1 . Analog

input module, AI 8xRTD/TC 2-wire High-Feature Suitable for BU type

A0, A1, color code CC00, Channel diagnostics, 16 bit, +/-0.1%

General information

Product type designation AI 8xRTD/TC 2-wire HF

Firmware version

● FW update possible

Yes

usable BaseUnits BU type A0, A1

Color code for module-specific color identification

plate

CC00

Product function

● I&M data

Yes; I&M0 to I&M3

Engineering with

● PROFIBUS as of GSD version/GSD revision

GSD Revision 5

● PROFINET as of GSD version/GSD revision

GSDML V2.3

Operating mode

● Oversampling

● MSI

CiR – Configuration in RUN

Reparameterization possible in RUN Yes

Calibration possible in RUN Yes

6AG1134-6JF00-2CA1 Subject to change without notice

Page 1/

Summary of content (7 pages)

PAGE 1
Data sheet 6AG1134-6JF00-2CA1 SIPLUS ET 200SP AI 8xRTD/TC 2-wire -40...+60°C start up 25 °C with conformal coating based on 6ES7134-6JF00-0CA1 . Analog input module, AI 8xRTD/TC 2-wire High-Feature Suitable for BU type A0, A1, color code CC00, Channel diagnostics, 16 bit, +/-0.
PAGE 2
Supply voltage Rated value (DC) 24 V permissible range, lower limit (DC) 19.2 V permissible range, upper limit (DC) 28.8 V Reverse polarity protection Yes Input current Current consumption, max. 35 mA Power loss Power loss, typ. 0.75 W Address area Address space per module ● Address space per module, max. 16 byte; + 1 byte for QI information Analog inputs Number of analog inputs 8 permissible input voltage for voltage input (destruction limit), max.
PAGE 3
● Input resistance (Type K) 1 MΩ ● Type L Yes; 16 bit incl. sign ● Input resistance (Type L) 1 MΩ ● Type N Yes; 16 bit incl. sign ● Input resistance (Type N) 1 MΩ ● Type R Yes; 16 bit incl. sign ● Input resistance (Type R) 1 MΩ ● Type S Yes; 16 bit incl. sign ● Input resistance (Type S) 1 MΩ ● Type T Yes; 16 bit incl. sign ● Input resistance (Type T) 1 MΩ ● Type U Yes; 16 bit incl. sign ● Input resistance (Type U) 1 MΩ ● Type TXK/TXK(L) to GOST Yes; 16 bit incl.
PAGE 4
● 0 to 600 ohms Yes; 15 bit ● Input resistance (0 to 600 ohms) 1 MΩ ● 0 to 3000 ohms Yes; 15 bit ● Input resistance (0 to 3000 ohms) 1 MΩ ● 0 to 6000 ohms Yes; 15 bit ● Input resistance (0 to 6000 ohms) 1 MΩ ● PTC Yes; 15 bit ● Input resistance (PTC) 1 MΩ Thermocouple (TC) Temperature compensation — parameterizable Yes — Reference channel of the module Yes — internal comparison point Yes; with BaseUnit type A1 — Reference channel of the group Yes — Number of reference channel groups
PAGE 5
● for resistance measurement with four-wire connection No Errors/accuracies Linearity error (relative to input range), (+/-) 0.01 %; ±0.1 % for resistance thermometers and resistance Temperature error (relative to input range), (+/-) 0.0009 %/K; ±0.005 % / K at thermocouple Crosstalk between the inputs, min. -50 dB Repeat accuracy in steady state at 25 °C (relative to input range), (+/-) 0.05 % Operational error limit in overall temperature range ● Voltage, relative to input range, (+/-) 0.
PAGE 6
● between the channels and the power supply of the electronics Yes Permissible potential difference between different circuits 75 V DC/60 V AC (base isolation) between the inputs (UCM) 10 V DC Isolation Isolation tested with 707 V DC (type test) Ambient conditions Ambient temperature during operation ● horizontal installation, min. -40 °C; = Tmin (incl. condensation/frost); start-up @ -25 °C ● horizontal installation, max. 60 °C; = Tmax ● vertical installation, min.
PAGE 7
— Against mechanical environmental conditions acc. to EN 60721-3-6 Yes; Class 6M4 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0) Usage in industrial process technology — Against chemically active substances acc. to EN 60654-4 Yes; Class 3 (excluding trichlorethylene) — Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.
