Data Sheet

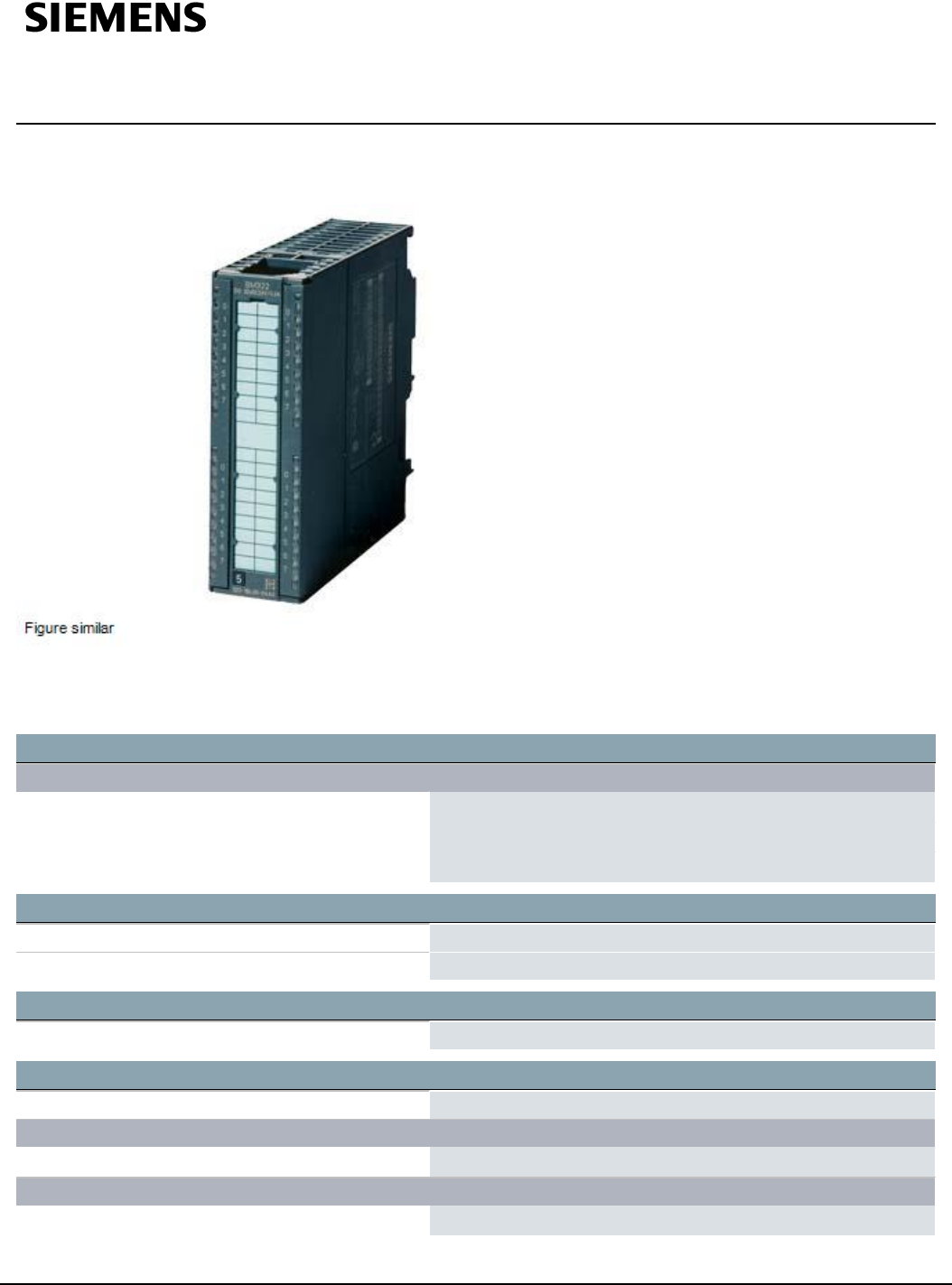

Data sheet 6AG1322-5FF00-4AB0
SIPLUS S7-300 SM 322 8DO with conformal coating based on
6ES7322-5FF00-0AB0 . Digital output isolated, 8 DO, 120/230 V AC,
2A, with single rooting/channel and selectable failure mode, 1x 40-
pole
Supply voltage
Load voltage L1
● Rated value (AC)
230V; 120/230 V AC
● permissible range, lower limit (AC)
79V
● permissible range, upper limit (AC)
264V
Input current
from load voltage L1 (without load), max. 2mA
from backplane bus 5 V DC, max. 100mA
Power loss
Power loss, typ. 8.6W
Digital outputs
Number of digital outputs 8
Switching capacity of the outputs
● on lamp load, max.
50W
Output voltage
● for signal "1", min.
L1 (-8.5 V)
6AG1322-5FF00-4AB0 Subject to change without notice
Page 1/
4
09/13/2019 © Copyright Siemens
