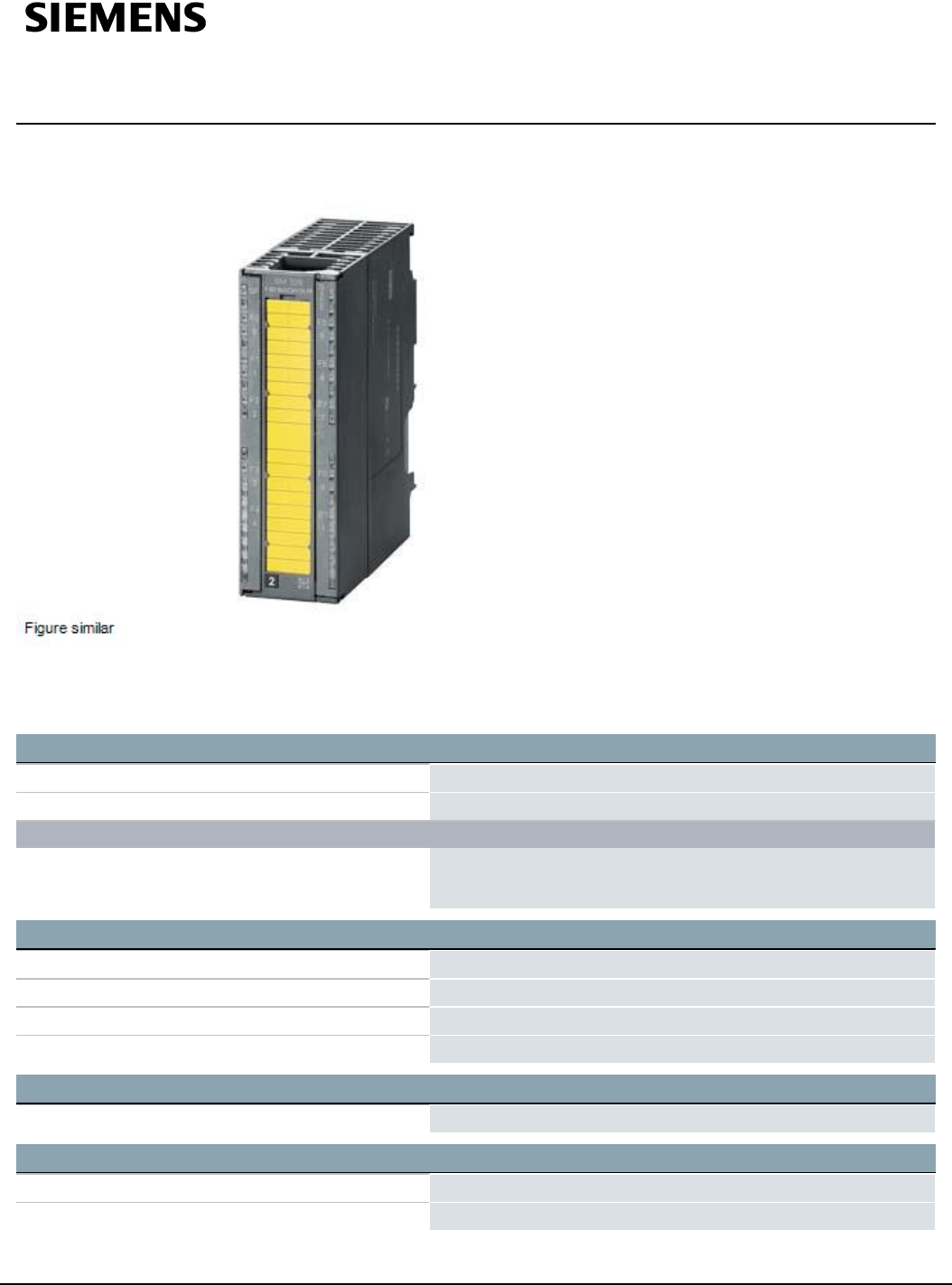

Data sheet 6AG1326-2BF10-2AY0

SIPLUS S7-300 SM 326 10F-DO with conformal coating with

conformity with EN 50155 T1 Kat 1 Kl A/B based on 6ES7326-

2BF10-0AB0 . Digital output 24 V DC/2A PP, fail-safe digital output

for SIMATIC S7F systems, with diagnostic alarm, LVV, 1x 40-pole

Supply voltage

Rated value (DC) 24V; 1L+

Reverse polarity protection Yes

Load voltage L+

● Rated value (DC)

24V; 2L+, 3L+

● Reverse polarity protection

Input current

from supply voltage 1L+, max. 100mA

from load voltage 2L+ (without load), max. 100mA

from load voltage 3L+ (without load), max. 100mA

from backplane bus 5 V DC, max. 100mA

Power loss

Power loss, typ. 6W

Digital outputs

Number of digital outputs 10

Short-circuit protection Yes

6AG1326-2BF10-2AY0 Subject to change without notice

Page 1/

Summary of content (4 pages)

PAGE 1
Data sheet 6AG1326-2BF10-2AY0 SIPLUS S7-300 SM 326 10F-DO with conformal coating with conformity with EN 50155 T1 Kat 1 Kl A/B based on 6ES73262BF10-0AB0 . Digital output 24 V DC/2A PP, fail-safe digital output for SIMATIC S7F systems, with diagnostic alarm, LVV, 1x 40-pole Supply voltage Rated value (DC) 24 V; 1L+ Reverse polarity protection Yes Load voltage L+ ● Rated value (DC) 24 V; 2L+, 3L+ ● Reverse polarity protection No Input current from supply voltage 1L+, max.
PAGE 2
Switching capacity of the outputs ● on lamp load, max. 5W Output current ● for signal "1" rated value 2A ● for signal "1" permissible range for 0 to 40 °C, min. 7 mA ● for signal "1" permissible range for 0 to 40 °C, max. 2.4 A ● for signal "1" permissible range for 40 to 60 °C, min. 7 mA ● for signal "1" permissible range for 40 to 60 °C, max. 2.4 A ● for signal "0" residual current, max. 0.5 mA Switching frequency ● with resistive load, max. 25 Hz ● with inductive load, max.
PAGE 3
Isolation Isolation tested with 500V AC for 1 min (internal voltage limiting to ±120V) Standards, approvals, certificates CE mark Yes UL approval Yes; File E239877 RCM (formerly C-TICK) Yes KC approval Yes EAC (formerly Gost-R) Yes Highest safety class achievable in safety mode ● acc. to EN 954 Cat. 4 ● SIL acc.
PAGE 4
— Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04 * The supplied plug covers must remain in place over the unused interfaces during operation! Connection method required front connector 40-pin Dimensions Width 40 mm Height 125 mm Depth 120 mm Weights Weight, approx.
