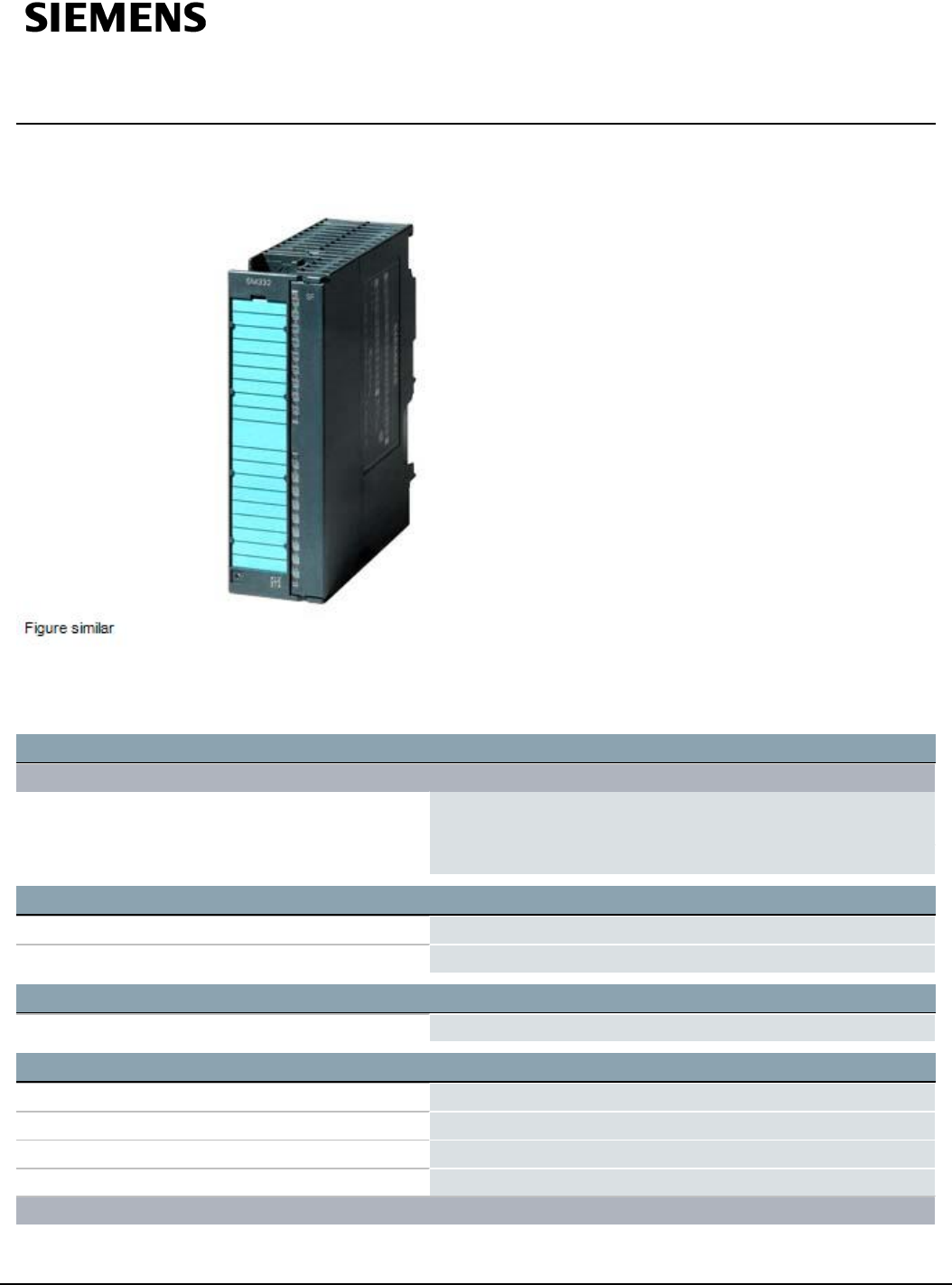

Data sheet 6AG1332-5HB01-2AB0

SIPLUS S7-300 SM 332-20-pole -25...+70°C with conformal coating

Conformity with EN 50155 T1 Kat 1 Kl A/B based on 6ES7332-

5HB01-0AB0 . Analog "output isolated, ""2 AI, U/I;" Resolution 11/12

bit 20-pole, Removing/inserting with active backplane bus possible

Supply voltage

Load voltage L+

● Rated value (DC)

24V; A power supply according to EN 50155 shall be used for

railway applications

● Reverse polarity protection

Yes

Input current

from load voltage L+ (without load), max. 135mA

from backplane bus 5 V DC, max. 60mA

Power loss

Power loss, typ. 3W

Analog outputs

Number of analog outputs 2

Voltage output, short-circuit protection Yes

Voltage output, short-circuit current, max. 25mA

Current output, no-load voltage, max. 18V

Output ranges, voltage

6AG1332-5HB01-2AB0 Subject to change without notice

Page 1/

Summary of content (4 pages)

PAGE 1
Data sheet 6AG1332-5HB01-2AB0 SIPLUS S7-300 SM 332-20-pole -25...+70°C with conformal coating Conformity with EN 50155 T1 Kat 1 Kl A/B based on 6ES73325HB01-0AB0 .
PAGE 2
● 0 to 10 V Yes ● 1 V to 5 V Yes ● -10 V to +10 V Yes Output ranges, current ● 0 to 20 mA Yes ● -20 mA to +20 mA Yes ● 4 mA to 20 mA Yes Load impedance (in rated range of output) ● with voltage outputs, min. 1 kΩ ● with voltage outputs, capacitive load, max. 1 µF ● with current outputs, max. 500 Ω ● with current outputs, inductive load, max. 10 mH Cable length ● shielded, max.
PAGE 3
Potential separation analog outputs ● between the channels and backplane bus Yes Isolation Isolation tested with 500 V DC Standards, approvals, certificates CE mark Yes UL approval Yes; File E239877 RCM (formerly C-TICK) Yes KC approval Yes EAC (formerly Gost-R) Yes Railway application ● EN 50121-4 No ● EN 50155 Yes; Sections 4, 5 and 12; no further agreements apply; T1, Category 1, Class A/B, EN 50155:2007 Ambient conditions Ambient temperature during operation ● min.
PAGE 4
— to chemically active substances according to EN 60721-3-5 Yes; Class 5C3 (RH < 75 %) incl. salt spray acc. to EN 50155 (ST2); * — to mechanically active substances according to EN 60721-3-5 Yes; Class 5S3 incl. sand, dust; * Use on ships/at sea — to biologically active substances according to EN 60721-3-6 Yes; Class 6B2 mold and fungal spores (excluding fauna); Class 6B3 on request — to chemically active substances according to EN 60721-3-6 Yes; Class 6C3 (RH < 75 %) incl. salt spray acc.
