Data Sheet

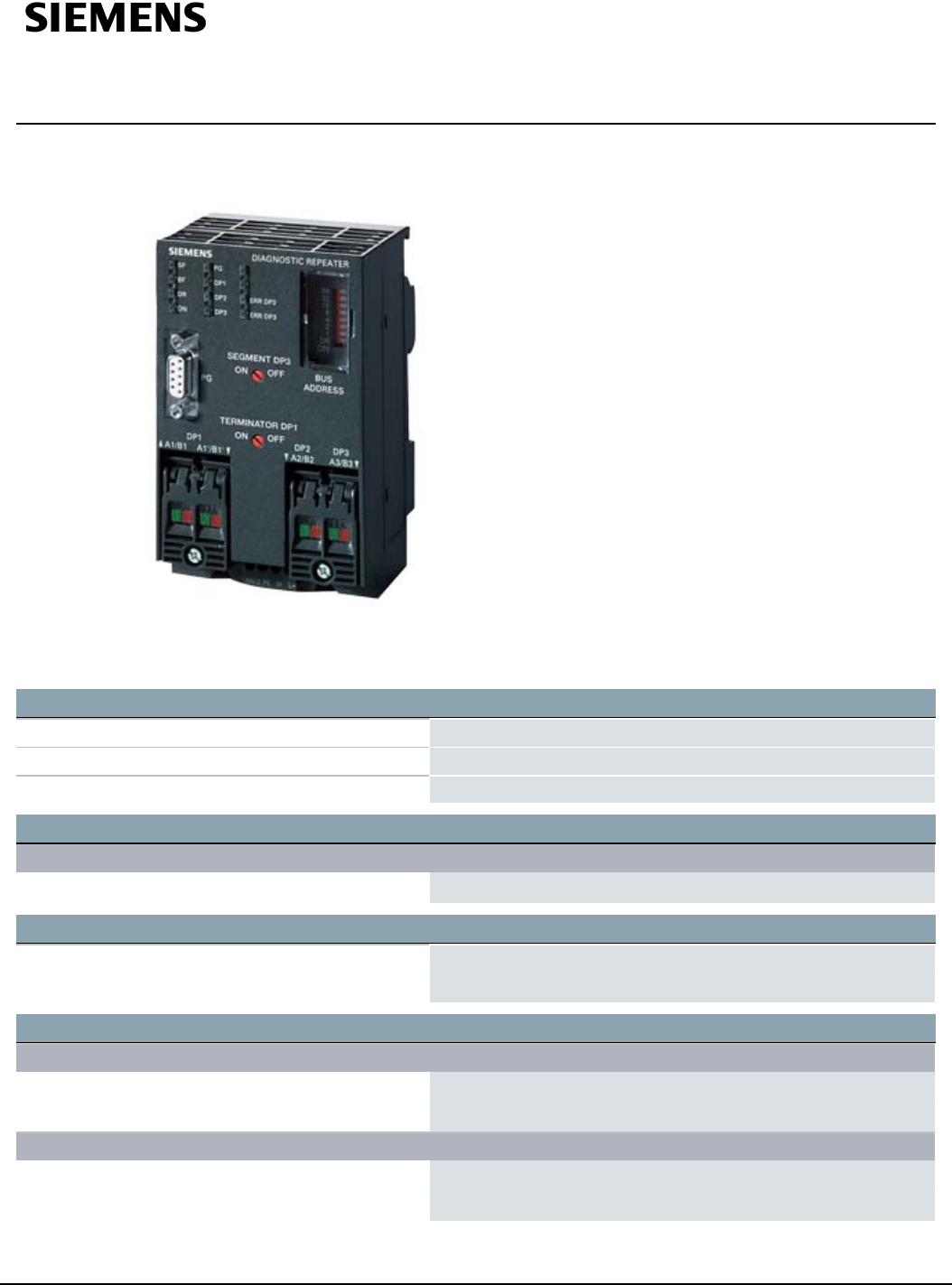

Data sheet 6AG1972-0AB01-4XA0

SIPLUS DP diagnostics repeater for medial exposure with conformal

coating based on 6ES7972-0AB01-0XA0

Supply voltage

Rated value (DC) 24V

permissible range, lower limit (DC) 20.4V

permissible range, upper limit (DC) 28.8V

Interfaces

PROFIBUS DP

● Transmission rate, max.

12Mbit/s; 9.6 kbit/s to 12 Mbit/s

Degree and class of protection

Degree of protection acc. to EN 60529

● IP20

Yes

Ambient conditions

Ambient temperature during operation

● min.

0°C; = Tmin (incl. condensation/frost)

● max.

60°C; = Tmax

Ambient temperature during storage/transportation

● min.

-40°C

● max.

70°C

6AG1972-0AB01-4XA0 Subject to change without notice

Page 1/

PAGE 1
Data sheet 6AG1972-0AB01-4XA0 SIPLUS DP diagnostics repeater for medial exposure with conformal coating based on 6ES7972-0AB01-0XA0 Supply voltage Rated value (DC) 24 V permissible range, lower limit (DC) 20.4 V permissible range, upper limit (DC) 28.8 V Interfaces PROFIBUS DP ● Transmission rate, max. 12 Mbit/s; 9.6 kbit/s to 12 Mbit/s Degree and class of protection Degree of protection acc. to EN 60529 ● IP20 Yes Ambient conditions Ambient temperature during operation ● min.
PAGE 2
Altitude during operation relating to sea level ● Installation altitude above sea level, max. 5 000 m ● Ambient air temperature-barometric pressurealtitude Tmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m) // Tmin ... (Tmax - 10 K) at 795 hPa ... 658 hPa (+2 000 m ... +3 500 m) // Tmin ... (Tmax -20 K) at 658 hPa ... 540 hPa (+3 500 m ... +5 000 m) Relative humidity ● With condensation, tested in accordance with IEC 60068-2-38, max. 100 %; RH incl.
PAGE 3
Design of electrical connection for PROFIBUS cables FastConnect insulation displacement, 10 clamping cycles possible Dimensions Width 80 mm Height 125 mm Depth 67.5 mm Weights Weight, approx.
