Data Sheet

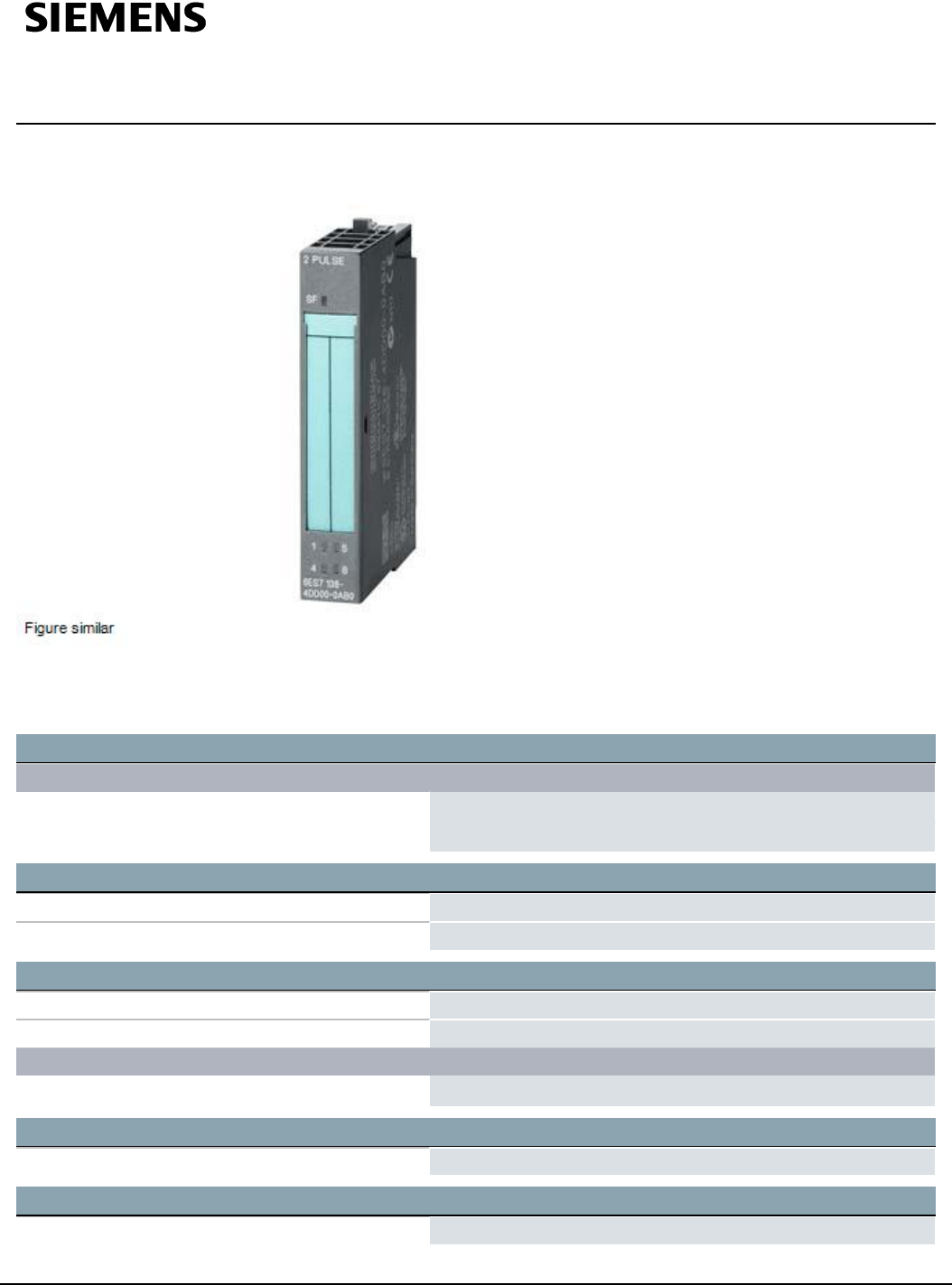

Data sheet 6ES7138-4DD01-0AB0
SIMATIC DP, Electronics module for ET 200S, 2 pulses Pulse
generator and timer module, 15 mm wide, 2 channels
Supply voltage
Load voltage L+
● Rated value (DC)
24V; From power module
● Reverse polarity protection
Yes
Input current
from load voltage L+ (without load), max. 40mA
from backplane bus 3.3 V DC, max. 10mA
Encoder supply
Type of output voltage L+ (-0.8 V)
Short-circuit protection Yes
Output current
● Rated value
500mA
Power loss
Power loss, typ. 1.8W
Digital inputs
Number of digital inputs 2
6ES7138-4DD01-0AB0 Subject to change without notice
Page 1/
3
09/13/2019 © Copyright Siemens
