Data Sheet

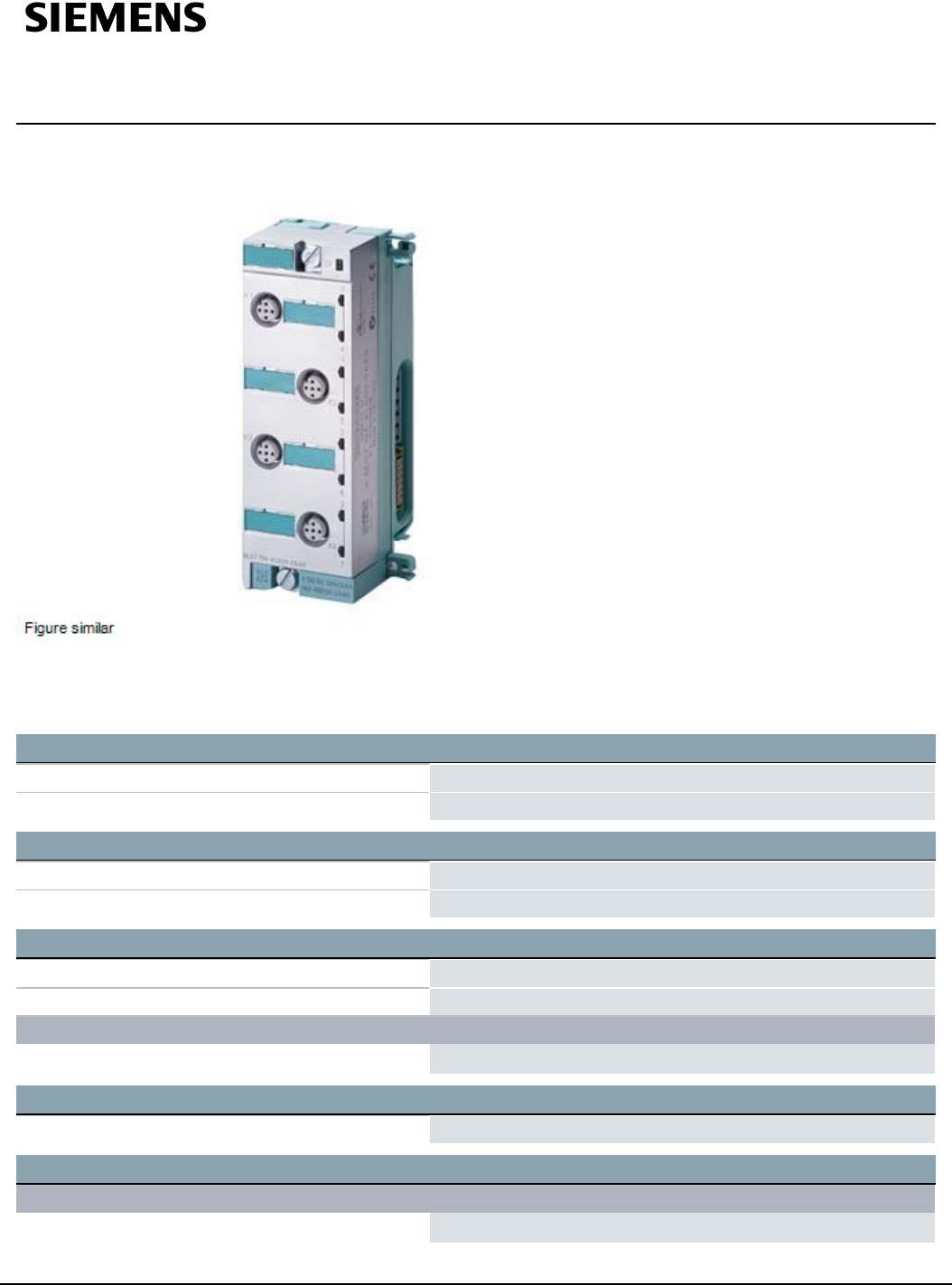

Data sheet 6ES7145-4FF00-0AB0

SIMATIC DP, Electronic modules for ET 200 PRO 4 AO U High

Feature, +-10 V; 0...10V; 1...5V, Channel diagnostics; incl. bus

module, Connection module IO 6ES7194-4..00-0AA0 order

separately

Supply voltage

Rated value (DC) 24V

Reverse polarity protection Yes; against destruction

Input current

from supply voltage 1L+, max. 65mA

from backplane bus 3.3 V DC, max. 10mA

Actuator supply

Number of outputs 4

Short-circuit protection Yes; per module

Output current

● up to 55 °C, max.

1A

Power loss

Power loss, typ. 1.7W

Address area

Address space per module

● Address space per module, max.

8byte

6ES7145-4FF00-0AB0 Subject to change without notice

Page 1/

PAGE 1
Data sheet 6ES7145-4FF00-0AB0 SIMATIC DP, Electronic modules for ET 200 PRO 4 AO U High Feature, +-10 V; 0...10V; 1...5V, Channel diagnostics; incl. bus module, Connection module IO 6ES7194-4..00-0AA0 order separately Supply voltage Rated value (DC) 24 V Reverse polarity protection Yes; against destruction Input current from supply voltage 1L+, max. 65 mA from backplane bus 3.3 V DC, max.
PAGE 2
Analog outputs Number of analog outputs 4 Voltage output, short-circuit protection Yes; per channel, electronic to chassis Voltage output, short-circuit current, max. 50 mA Cycle time (all channels) max. 3 ms Output ranges, voltage ● 0 to 10 V Yes ● 1 V to 5 V Yes ● -10 V to +10 V Yes Connection of actuators ● for voltage output two-wire connection Yes ● for voltage output four-wire connection Yes Load impedance (in rated range of output) ● with voltage outputs, min.
PAGE 3
● Diagnostic alarm Yes; Parameterizable ● Hardware interrupt No Diagnostic messages ● Diagnostic information readable Yes ● Wire-break No ● Short-circuit Yes; per channel, not in zero range Diagnostics indication LED ● Group error SF (red) Yes Potential separation Potential separation analog outputs ● between the channels No ● between the channels and backplane bus Yes Isolation Isolation tested with 707 V DC (type test) Dimensions Width 45 mm Height 130 mm Depth 35 mm Weights Weight
