Data sheet 6ES7148-4CA60-0AA0

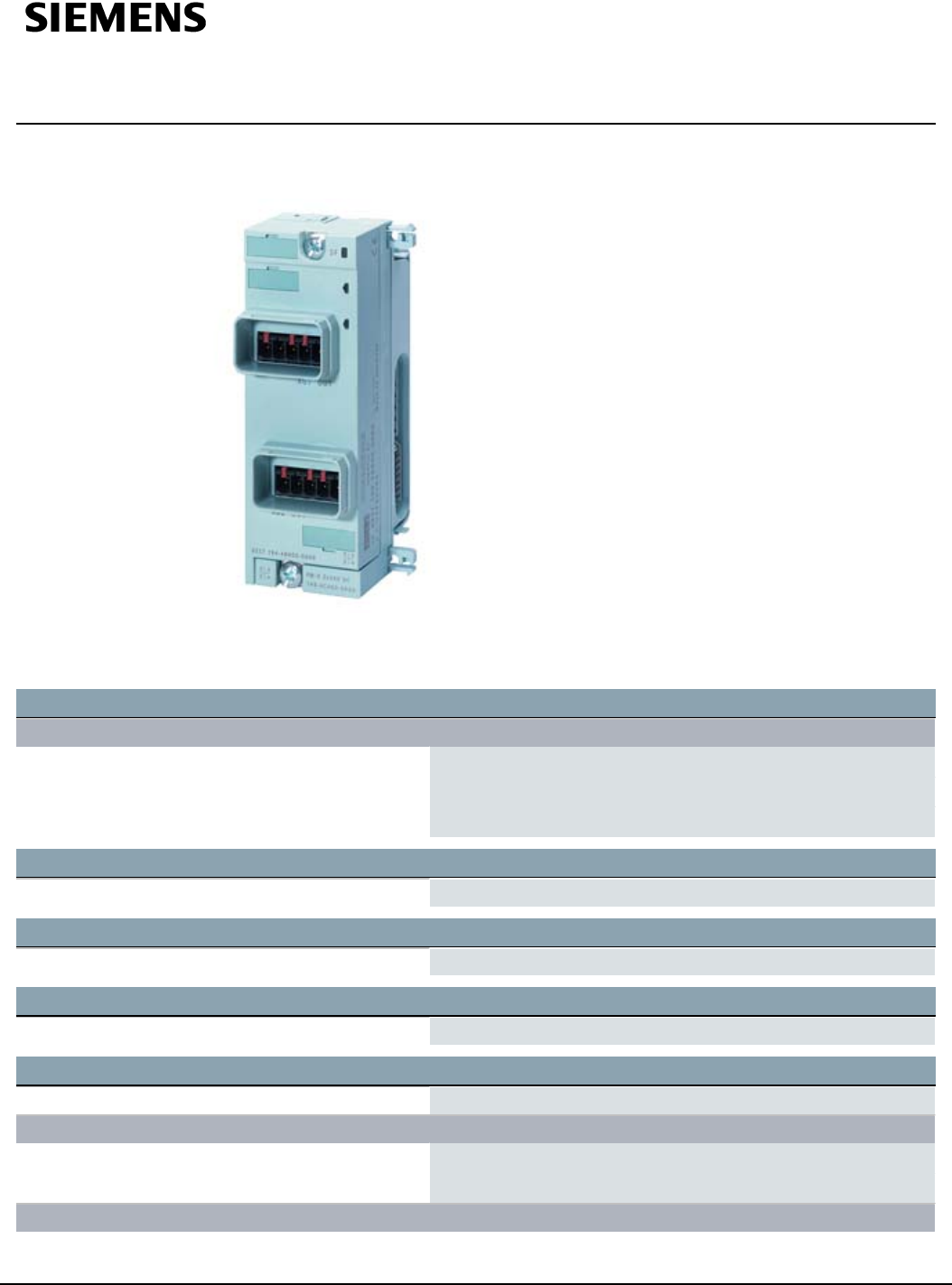

SIMATIC DP, Power module output for Electronic modules ET 200

PRO PM-O, DC 2x24V, incl. bus module, connection module PM-O

6ES7194-4BH00-0AA0 order separately

Supply voltage

Load voltage 2L+

● Rated value (DC)

24V

● Short-circuit protection

Yes

● Reverse polarity protection

Yes; against destruction

Input current

from load voltage 2L+, max. 3mA

Current carrying capacity

max. 10A; up to 55 °C (on the internal busbars of the ET 200pro)

Power loss

Power loss, typ. 1.1W

Interrupts/diagnostics/status information

Diagnostics function Yes

Diagnostic messages

● Diagnostic information readable

Yes

● missing load voltage

Diagnostics indication LED

6ES7148-4CA60-0AA0 Subject to change without notice

Page 1/

PAGE 1
Data sheet 6ES7148-4CA60-0AA0 SIMATIC DP, Power module output for Electronic modules ET 200 PRO PM-O, DC 2x24V, incl. bus module, connection module PM-O 6ES7194-4BH00-0AA0 order separately Supply voltage Load voltage 2L+ ● Rated value (DC) 24 V ● Short-circuit protection Yes ● Reverse polarity protection Yes; against destruction Input current from load voltage 2L+, max. 3 mA Current carrying capacity max. 10 A; up to 55 °C (on the internal busbars of the ET 200pro) Power loss Power loss, typ.
PAGE 2
● Group error SF (red) Yes ● Load voltage monitoring 24 V DC (green) No; Signalled in IM or in PM Parameter Diagnostics short-circuit Diagnosis short circuit implemented after M for 1L+ Potential separation between load voltage and backplane bus Yes Isolation Isolation tested with 707 V DC (type test) Degree and class of protection IP degree of protection IP65/67 Dimensions Width 45 mm Height 130 mm Depth 35 mm Weights Weight, approx.
