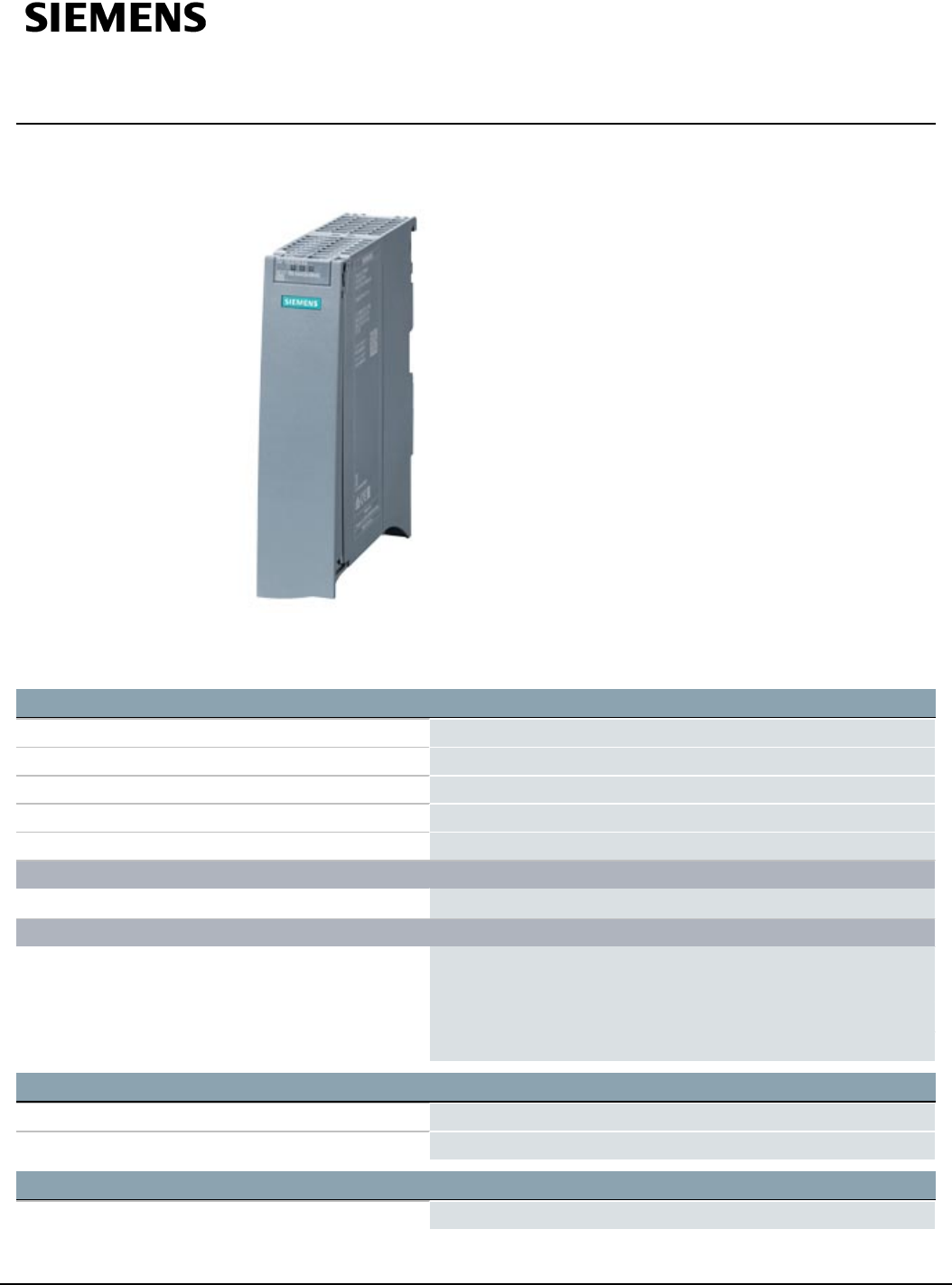

Data sheet 6ES7155-5AA00-0AA0

SIMATIC ET 200MP PROFINET IO device Interface module IM 155-

5 PN BA for ET 200MP electronic modules; up to 12 IO modules;

Integrated 2-port switch; RJ45 Shared Device with 2 IO controllers,

MRP; FW update; I&M0...3

General information

Product type designation IM 155-5 PN BA

HW functional status FS01

Firmware version V4.0.0

Vendor identification (VendorID) 0x002A

Device identifier (DeviceID) 0X0312

Product function

● I&M data

Yes; I&M0 to I&M3

Engineering with

● STEP 7 TIA Portal configurable/integrated as of

version

V14 with HSP 187

● STEP 7 configurable/integrated as of version

V5.5 SP3 / -

● PROFINET as of GSD version/GSD revision

V2.3 / -

Configuration control

via user data No

via dataset No

Supply voltage

Rated value (DC) 24V

6ES7155-5AA00-0AA0 Subject to change without notice

Page 1/

Summary of content (4 pages)

PAGE 1
Data sheet 6ES7155-5AA00-0AA0 SIMATIC ET 200MP PROFINET IO device Interface module IM 1555 PN BA for ET 200MP electronic modules; up to 12 IO modules; Integrated 2-port switch; RJ45 Shared Device with 2 IO controllers, MRP; FW update; I&M0...3 General information Product type designation IM 155-5 PN BA HW functional status FS01 Firmware version V4.0.
PAGE 2
permissible range, lower limit (DC) 20.4 V permissible range, upper limit (DC) 28.8 V Reverse polarity protection Yes Short-circuit protection Yes Mains buffering ● Mains/voltage failure stored energy time 5 ms Input current Current consumption (rated value) 1A Current consumption, max. 1.7 A Inrush current, max. 2.8 A I²t 0.04 A²·s Power Infeed power to the backplane bus 14 W Power loss Power loss, typ. 3W Address area Address space per module ● Address space per module, max.
PAGE 3
Interface types RJ 45 (Ethernet) ● Transmission procedure PROFINET with 100 Mbit/s full duplex (100BASE-TX) ● 100 Mbps Yes ● Autonegotiation Yes ● Autocrossing Yes Protocols PROFINET IO Device Services — Isochronous mode No — Open IE communication Yes — IRT No — PROFIenergy No — Prioritized startup No — Shared device Yes — Number of IO Controllers with shared device, max.
PAGE 4
● Connection display LINK TX/RX Yes; 2x green-yellow LEDs Potential separation between backplane bus and electronics No between PROFINET and all other circuits Yes between supply and all other circuits No Permissible potential difference between different circuits Safety extra low voltage SELV Isolation Isolation tested with 707 V DC (type test) Standards, approvals, certificates Network loading class 2 Ambient conditions Ambient temperature during operation ● horizontal installation, min.
