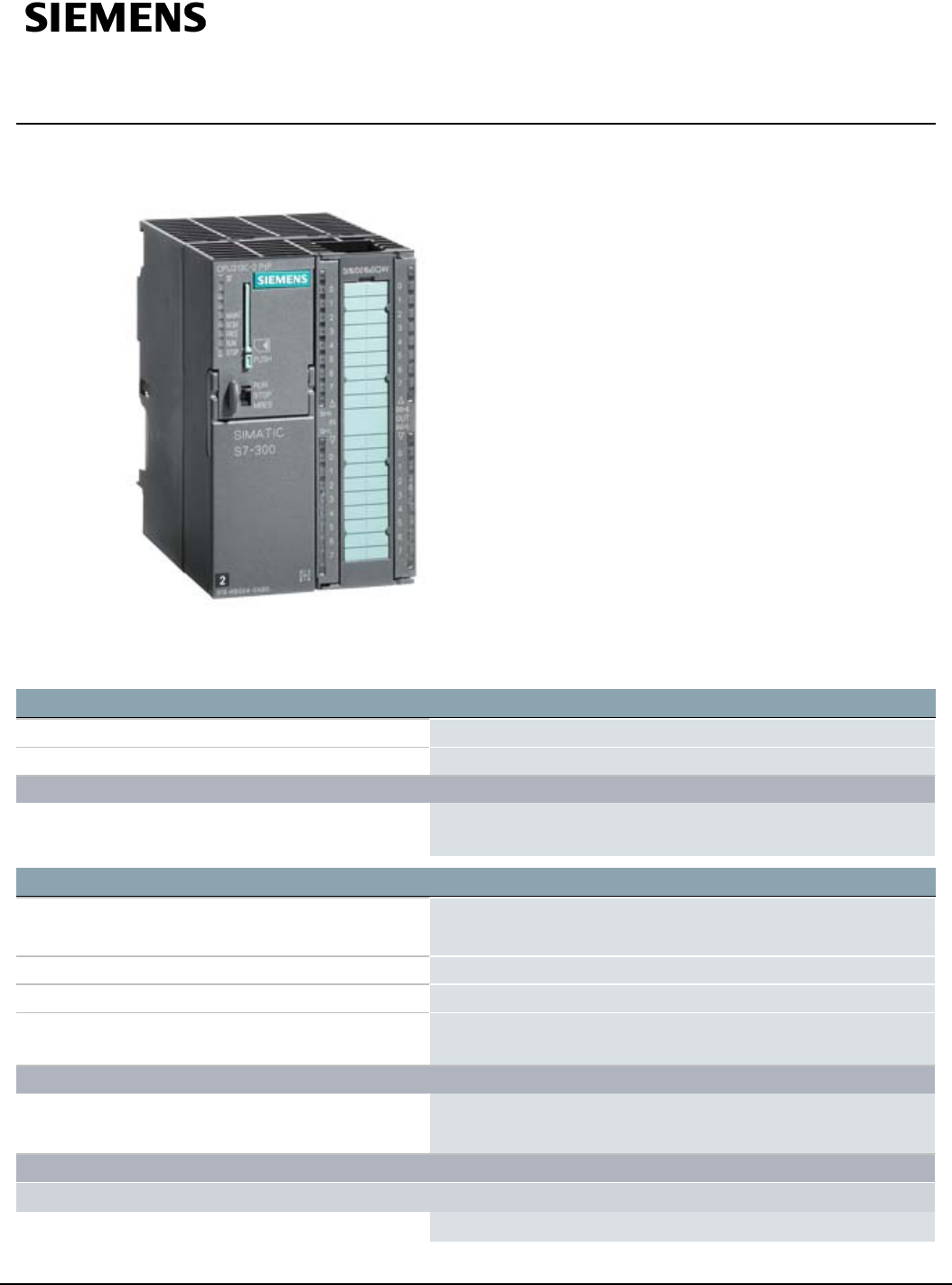

Data sheet 6ES7313-6BG04-0AB0 SIMATIC S7-300, CPU 313C-2 PTP Compact CPU with MPI, 16 DI/16 DO, 3 high-speed counters (30 kHz), integrated interface RS485, Integr. power supply 24 V DC, work memory 128 KB, Front connector (1x 40-pole) and Micro Memory Card required General information HW functional status 01 Firmware version V3.3 Engineering with ● Programming package STEP 7 as of V5.5 + SP1 or STEP 7 V5.
— Reverse polarity protection Yes Digital outputs — Rated value (DC) 24 V — Reverse polarity protection No Input current Current consumption (rated value) 580 mA Current consumption (in no-load operation), typ. 110 mA Inrush current, typ. 5A I²t 0.7 A²·s Digital inputs ● from load voltage L+ (without load), max. 80 mA Digital outputs ● from load voltage L+, max. 50 mA Power loss Power loss, typ.
● Number, max. 1 024; Number range: 0 to 7999 ● Size, max. 64 kbyte ● Number, max. 1 024; Number range: 0 to 7999 ● Size, max. 64 kbyte ● Description see instruction list ● Size, max.
— preset No retentivity Time range — lower limit 10 ms — upper limit 9 990 s IEC timer ● present Yes ● Type SFB ● Number Unlimited (limited only by RAM capacity) Data areas and their retentivity retentive data area in total All, max. 64 KB Flag ● Number, max.
— of which central 1 008 Analog channels ● Inputs — of which central ● Outputs — of which central 248 248 248 248 Hardware configuration Number of expansion units, max. 3 Number of DP masters ● integrated none ● via CP 4 Number of operable FMs and CPs (recommended) ● FM 8 ● CP, PtP 8 ● CP, LAN 6 Rack ● Racks, max. 4 ● Modules per rack, max. 8; In rack 3 max.
● of which inputs usable for technological functions 12 integrated channels (DI) 16 Input characteristic curve in accordance with IEC 61131, type 1 Yes Number of simultaneously controllable inputs horizontal installation — up to 40 °C, max. 16 — up to 60 °C, max. 8 vertical installation — up to 40 °C, max. 8 Input voltage ● Rated value (DC) 24 V ● for signal "0" -3 to +5V ● for signal "1" +15 to +30V Input current ● for signal "1", typ.
● on lamp load, max. 5W Load resistance range ● lower limit 48 Ω ● upper limit 4 kΩ Output voltage ● for signal "1", min. L+ (-0.8 V) Output current ● for signal "1" rated value 500 mA ● for signal "1" permissible range, min. 5 mA ● for signal "1" permissible range, max. 0.6 A ● for signal "1" minimum load current 5 mA ● for signal "0" residual current, max. 0.
Interfaces Number of industrial Ethernet interfaces 0 Number of PROFINET interfaces 0 Number of RS 485 interfaces 1; MPI Number of RS 422 interfaces 1; RS 422 / 485 combined Point-to-point connection ● Cable length, max. 1 200 m Integrated protocol driver — 3964 (R) Yes — ASCII Yes — RK512 No Transmission rate, RS 422/485 — with 3964 (R) protocol, max. 19.2 kbit/s; 38.4 kbit/s half duplex; 19.2 kbit/s full duplex — with ASCII protocol, max. 19.2 kbit/s; 38.4 kbit/s half duplex; 19.
● PROFINET IO Controller No ● PROFINET IO Device No ● PROFINET CBA No ● PROFIBUS DP master No ● PROFIBUS DP slave No Point-to-point connection ● Transmission rate, max. 19.2 kbit/s; 38.4 kbit/s half duplex; 19.
— adjustable for OP communication, min. 1 — adjustable for OP communication, max. 7 ● usable for S7 basic communication 4 — reserved for S7 basic communication 0 — adjustable for S7 basic communication, min. 0 — adjustable for S7 basic communication, max. 4 S7 message functions Number of login stations for message functions, max. 8; Depending on the configured connections for PG/OP and S7 basic communication Process diagnostic messages Yes simultaneously active Alarm-S blocks, max.
Integrated Functions Number of counters 3; See "Technological Functions" manual Counting frequency (counter) max. 30 kHz Frequency measurement Yes Number of frequency meters 3; up to 30 kHz (see "Technological Functions" manual) controlled positioning No integrated function blocks (closed-loop control) Yes; PID controller (see "Technological Functions" manual) PID controller Yes Number of pulse outputs 3; Pulse width modulation up to 2.
— SCL Yes — CFC Yes — GRAPH Yes — HiGraph® Yes Know-how protection ● User program protection/password protection Yes ● Block encryption Yes; With S7 block Privacy Dimensions Width 80 mm Height 125 mm Depth 130 mm Weights Weight, approx.
